Chapter 2 Product Information
2.1 System Conguration of the NICE5000
The NICE5000 series integrated elevator control system mainly includes the integrated
elevator controller, car top board (MCTC-CTB), hall call board (MCTC-HCB), and car call
board (MCTC-CCB).
The following gure shows the system components.

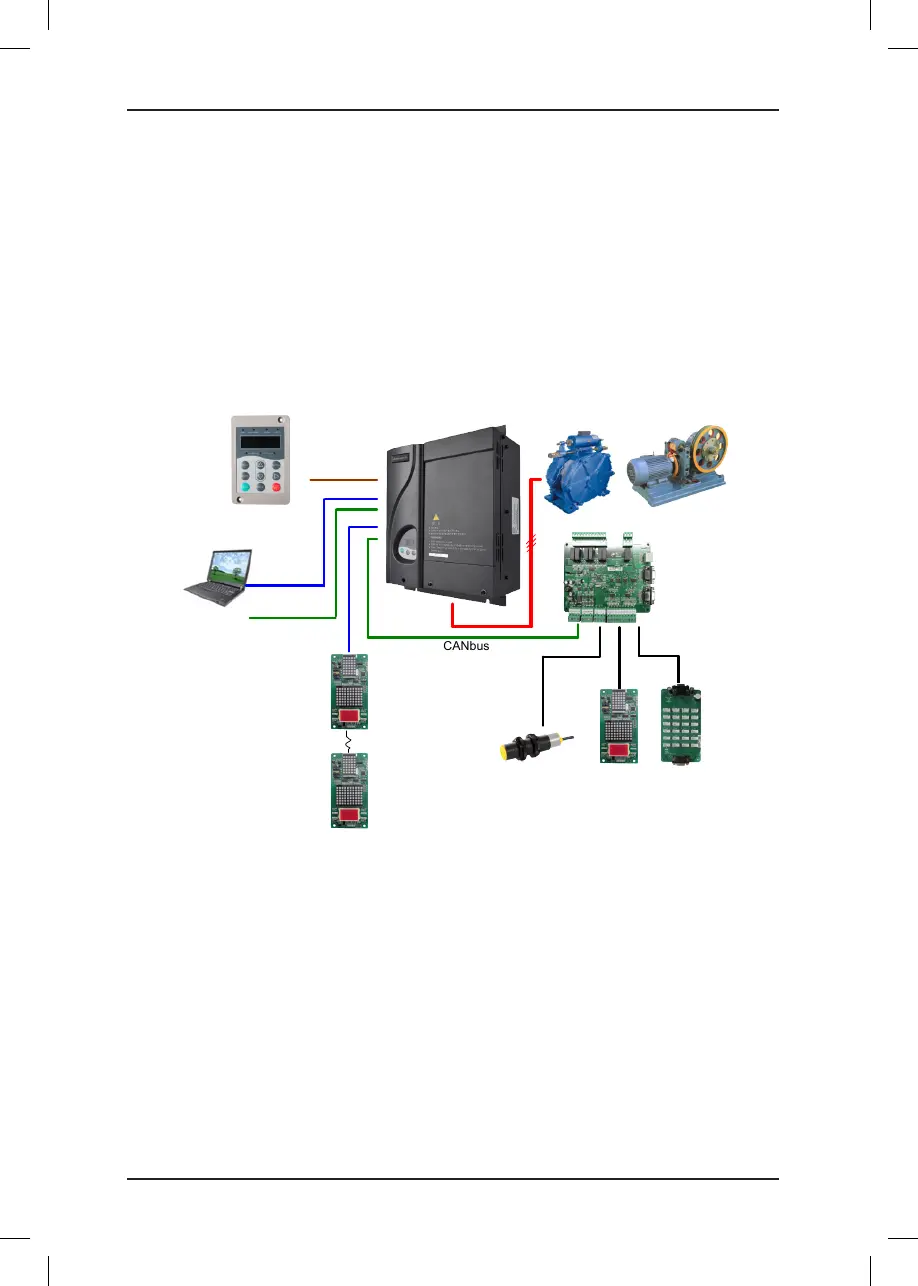

Figure 2-1 System components of the NICE5000
MCTC-CTB
MCTC-CCBMCTC-HCB
LED operation panel
(MDKE)
Load cell
MCTC-HCB
MCTC-HCB
CANbus
Modbus
Host
computer
NICE5000 integrated controller
CANbus
Communication
in parallel mode
Synchronous or
asynchronous motor
1. It controls the motor based on feedback signals from the encoder, and records
information of all position switches in the shaft by pulse, implementing accurate leveling
and direct travel ride and guaranteeing running safety.
2. It implements information collection and control of car-related components by means of
CANbus communication with the MCTC-CTB.
3. It registers and displays hall calls of all oors with easy address setting by means of
Modbus communication with the MCTC-HCB.
