3.6 Selection and Use of the MCTC-PG Card
The NICE5000 can implement CLVC only with use of the MCTC-PG card. The following
figures show the appearance of the MCTC-PG card and its installation on the controller.
Directly insert the J1 terminal of the MCTC-PG card into the J12 terminal of the controller.

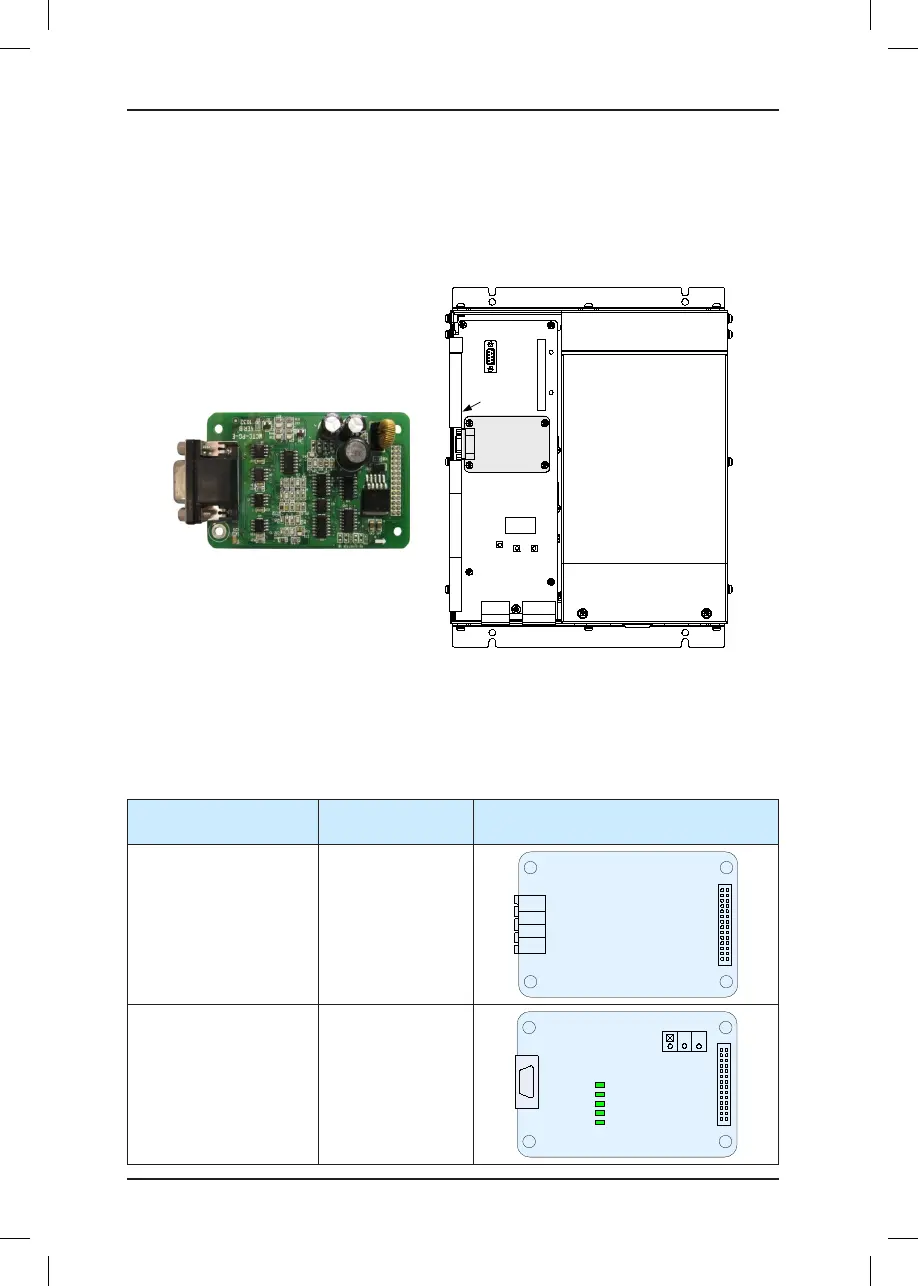

Figure 3-13 Appearance of the MCTC-PG card and its installation on the controller
MCTC-PG
NICE5 000
J12
3.6.1 Selection of the MCTC-PG Card
Monarch provides four PG card models, MCTC-PG-A2, MCTC-PG-D, MCTC-PG-E and
MCTC-PG-F1 for different encoder types, as described in the following table.
Table 3-18 Selection of the MCTC-PG card models
Encoder Type Adaptable PG Card Appearance
Push-pull encoder
Open-collector incremental
encoder
MCTC-PG-A2
12V
PGM
PGA
PGB
MCTC-PG-A2
J1
CN1
UVW encoder MCTC-PG-D
J1
MCTC-PG-D
CN1
D2
D5
D8
D11
D14
M AI
CN2
