NICE5000 User Manual 3 Mechanical and Electrical Installation
- 55 -

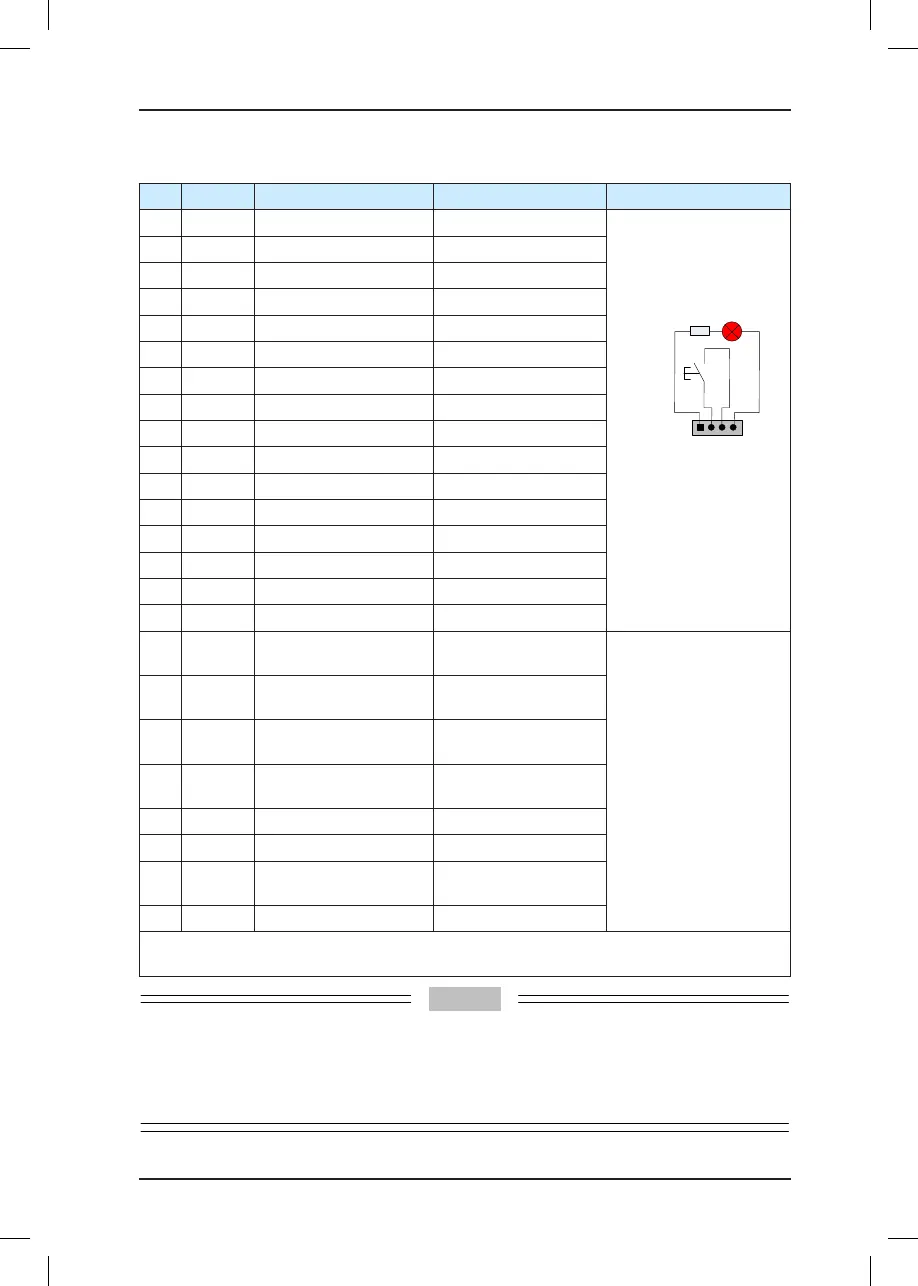

Table 3-17 Input and output terminals of the CCB
No. Interface
Pins 2 and 3 Pins 1 and 4 Remarks
1 JP1
Floor 1 button input Floor 1 display output
1 2 3 4
Floor button indicator
Floor
button
For CCB2, the input
signal of JPn corresponds
to oor (16+n) button
input.
2 JP2
Floor 2 button input Floor 2 display output
3 JP3
Floor 3 button input Floor 3 display output
4 JP4
Floor 4 button input Floor 4 display output
5 JP5
Floor 5 button input Floor 5 display output
6 JP6
Floor 6 button input Floor 6 display output
7 JP7
Floor 7 button input Floor 7 display output
8 JP8
Floor 8 button input Floor 8 display output
9 JP9
Floor 9 button input Floor 9 display output
10 JP10
Floor 10 button input Floor 10 display output
11 JP11
Floor 11 button input Floor 11 display output
12 JP12
Floor 12 button input Floor 12 display output
13 JP13
Floor 13 button input Floor 13 display output
14 JP14
Floor 14 button input Floor 14 display output
15 JP15
Floor 15 button input Floor 15 display output
16 JP16
Floor 16 button input Floor 16 display output
17 JP17
Door open button input
Door open display
output
Invalid for CCB2.
18 JP18
Door close button input
Door close display
output
19 JP19
Door open delay button
input
Door open delay display
output
20 JP20
Direct travel ride input
Non-door zone stop
output
21 JP21
Attendant input Reserved
22 JP22
Direction change input Reserved
23 JP23
Independent running
input
Reserved
24 JP24
Fire emergency input Reserved
Note: Pins 1 and 2 are positive of power supply. The pin with white dot mark or that is
rectangular is pin 1.
•
Perform wiring strictly according to the terminal marks and ensure that the button is inserted
securely.
•
The MCTC-CCB has the same interfaces on both ends, and do not make wrong connection
when connecting multiple boards in series.
