NICE5000 User Manual 7 Description of Function Codes
- 141 -

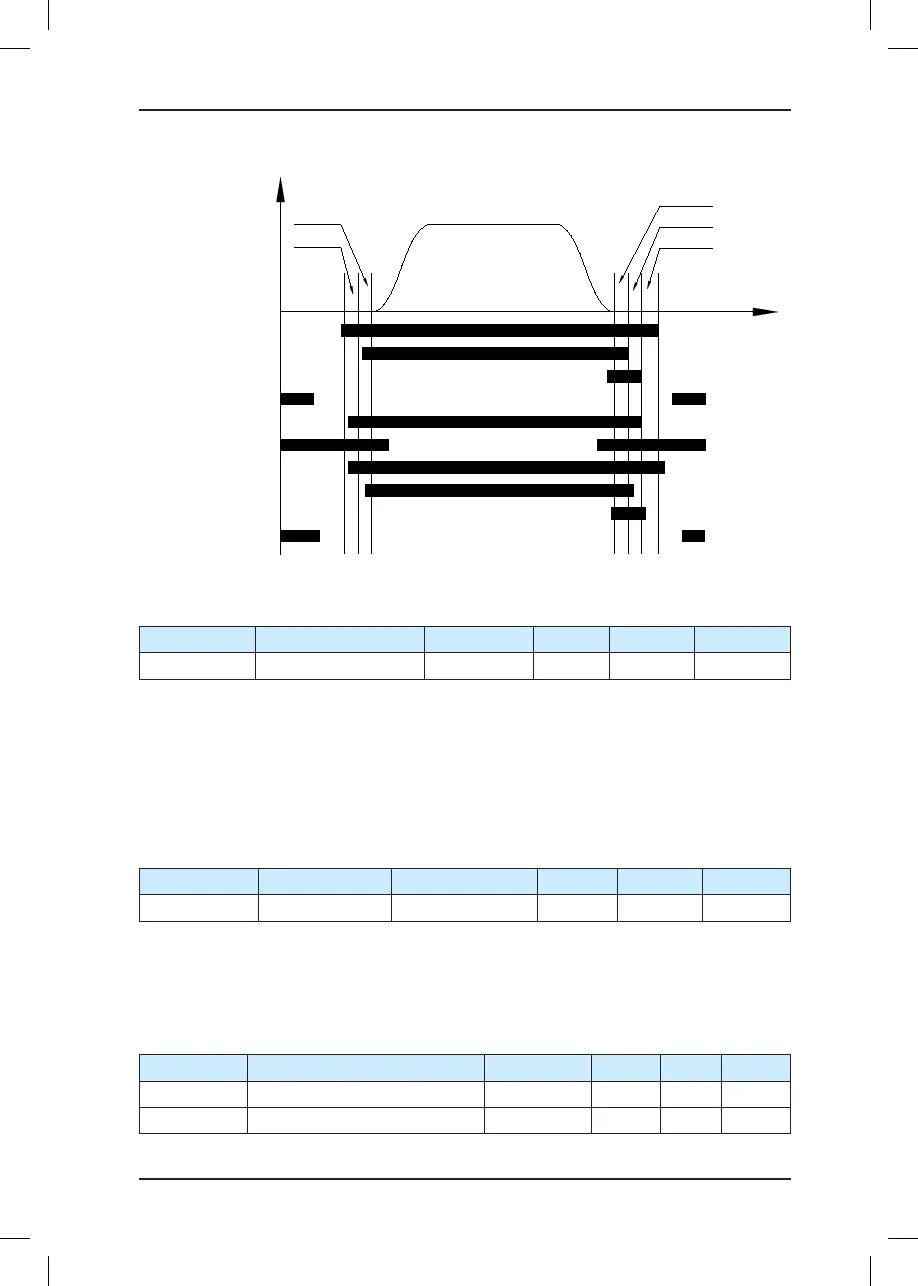

Figure 7-3 Running time sequence
V (speed)
t (
time)
F3-18
F3-19
F3-21
F3-20
F2-19
RUN contactor
Brake contactor
Shorting door lock
circuit contactor
Shorting motor
stator contactor
Internal
running status
Leveling signal
RUN contactor feedback
Brake contactor
feedback
Shorting door lock circuit
contactor feedback
Shorting motor
stator contactor
Group F4: Floor Parameters
Function Code Parameter Name Setting Range Default Unit Property
F4-00
Leveling adjustment 0–60
30 mm ★
It is used to adjust the leveling accuracy at elevator stop. If over-leveling occurs at all oors
during elevator stop, decrease the value of this parameter properly. If under-leveling occurs
at all oors during elevator stop, increase the value of this parameter properly.
This parameter takes effect to leveling of all oors. Therefore, if leveling at a single oor is
inaccurate, adjust the position of the leveling plate.
If the leveling deviations in up direction and down direction are inconsistent, adjust F4-07
additionally.
Function Code Parameter Name Setting Range Default Unit Property
F4-01
Current oor F6-01 to F6-00
1 - ★
This parameter indicates the current oor of the elevator car.
The system automatically changes the value of this parameter during running, and corrects
it at leveling position (door open limit) after the up slow-down and down slow-down switches
act. At non-bottom oor and top-oor leveling, you can also manually modify this parameter,
but the value must be consistent with the actual current oor.
Function Code Parameter Name Setting Range Default Unit Property
F4-02
High byte of current oor position 0–65535
0 Pulses ●
F4-03
Low byte of current oor position 0–65535
0 Pulses ●
