Chapter 3 Mechanical and Electrical Installation
3.1 NICE5000 Integrated Elevator Controller
3.1.1 Installation Environment Requirements
Item Requirements
Ambient
temperature
-10°C to 50°C
Heat dissipation
Install the controller on the surface of an incombustible object, and ensure
that there is sufcient space around for heat dissipation.
Install the controller vertically on the support using screws.
Mounting
location
Free from direct sunlight, high humidity and condensation
Free from corrosive, explosive and combustible gas
Free from oil dirt, dust and metal powder
Vibration Less than 0.6 g
Protective
enclosure
The controllers of plastic housing are whole-unit built-in products and need
to be installed in the nal system. The nal system must have the required
reproof cover, electrical protective cover and mechanical protective cover,
and satisfy the regional laws & regulations and related IEC requirements.
3.1.2 Installation Clearance Requirements
The clearance that needs to be reserved varies with the power class of the NICE5000, as
shown in the following gure.

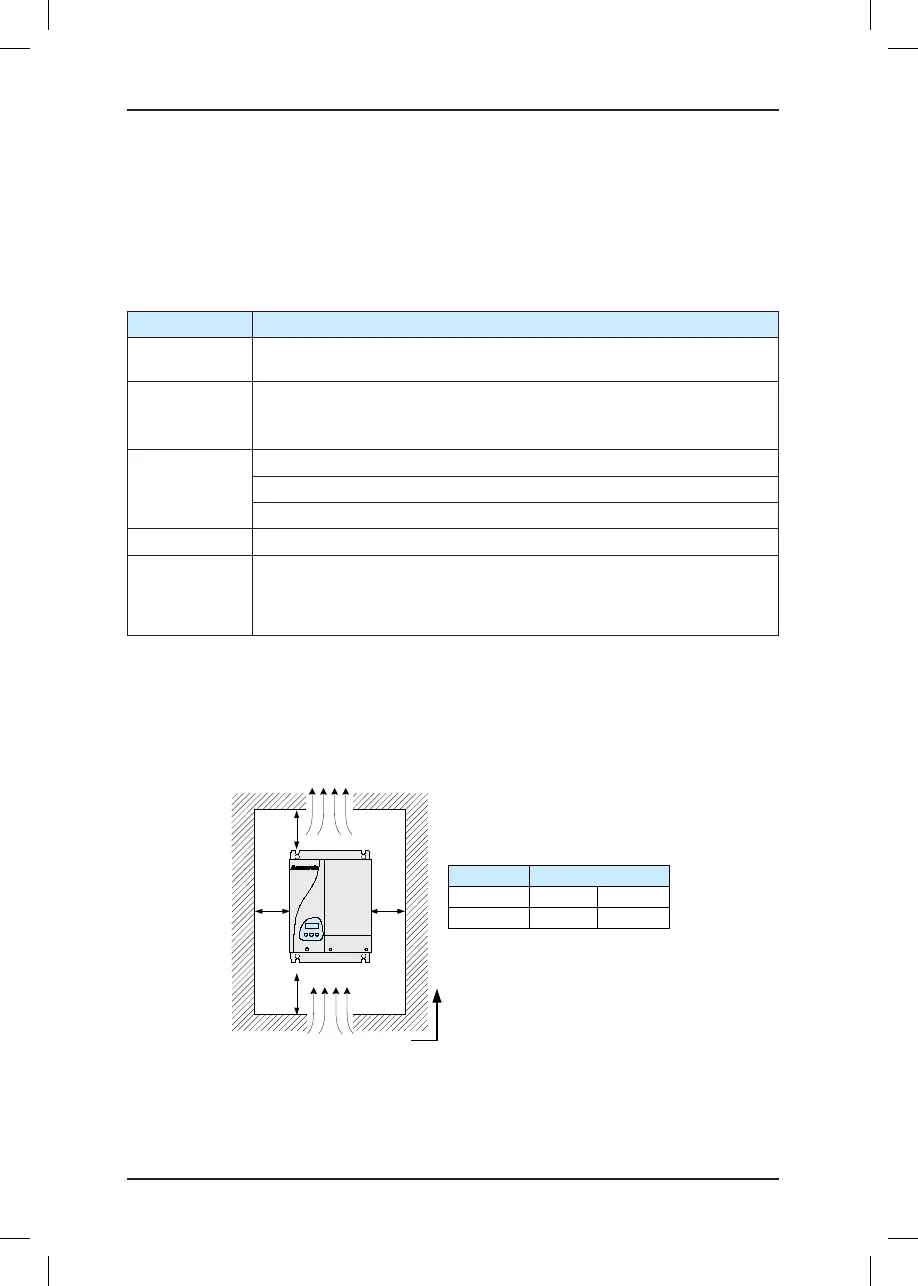

Figure 3-1 Clearance around the NICE5000 for installation
B
B
A
A
Hot air
Cold air
1.1-18.5 kW
A ≥ 10 mm
B ≥ 100 mm
22-45 kW
A ≥ 50 mm
B ≥ 100 mm
Power Class
Clearance Requirements
The controller should be
installed vertically upward.
The NICE5000 is installed vertically upward on the support with screws fixed into the four
mounting holes, as shown in the following gure.
