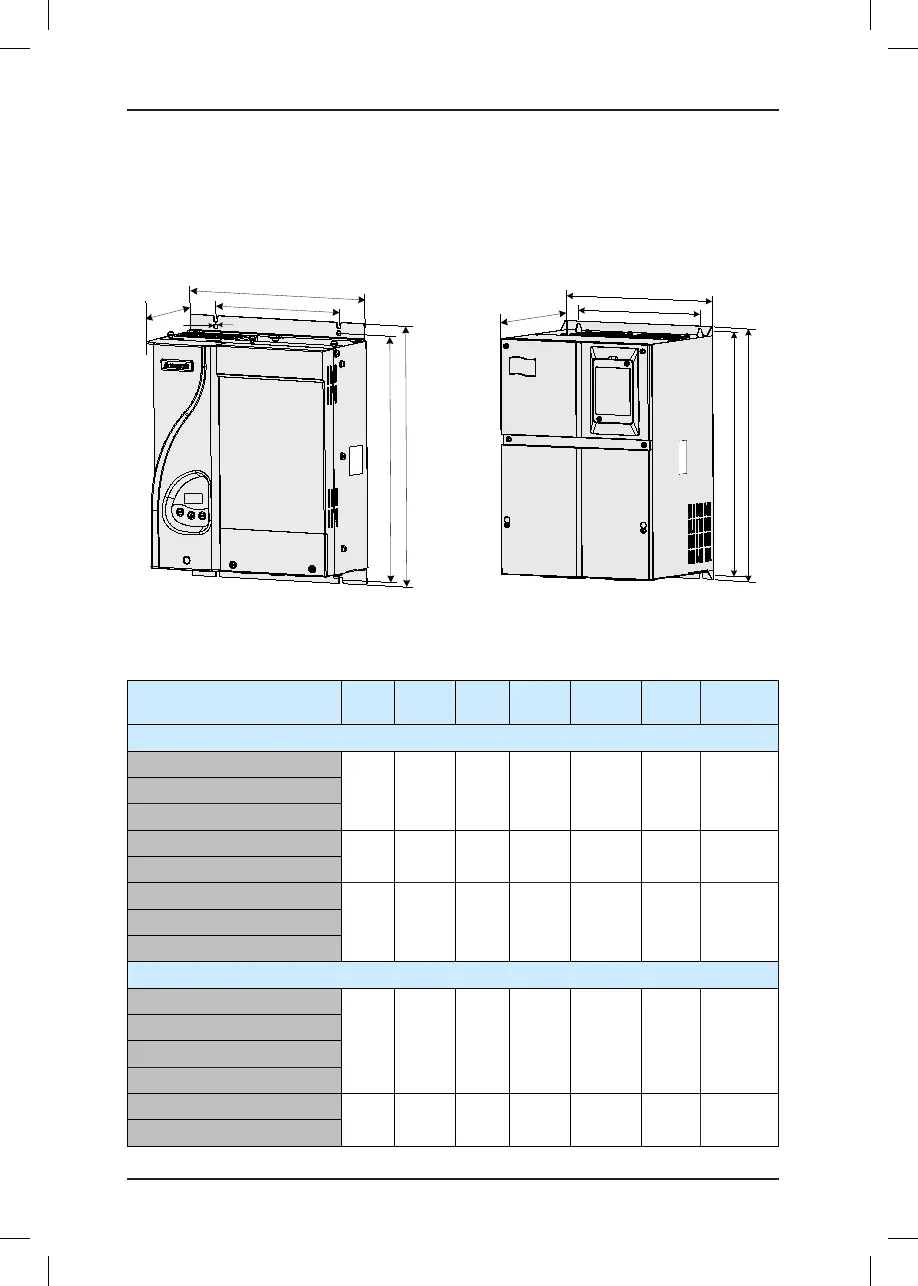

2.5 Physical Appearance and Mounting Dimensions
The following figure shows the physical appearance and mounting dimensions of the
NICE5000.
Figure 2-5 Physical appearance and mounting dimensions of the NICE5000
W
A
B
Φ
H
D
W
A
B H
D
30 kW < P ≤ 160 kW
2.2 kW < P ≤ 30 kW
Table 2-3 Mounting dimensions of the NICE5000
Controller Model
A
(mm)
B (mm)
H
(mm)
W (mm) D (mm)
Φ
(mm)
Weight
(kg)
Single/Three-phase 20 V, range: -15% to 20%
NICE-LWX -2002-A/B/C0
190 336 356 240 135 6.5 6.6NICE-LWX -2003-A/B/C0
220-NICE-LWX-4007-A/B/C0
220-NICE-LWX-4011-A/B/C0
190 336 356 273 140 6.5 9.1
220-NICE-LWX-4015-A/B/C0
220-NICE-LWX-4018-A/B/C0
300 339 361 410 172 7 19.1220-NICE-LWX-4022-A/B/C0
220-NICE-LWX-4030-A/B/C0
Three-phase 380 V, range: -15% to 20%
NICE-LWX -4002-A/B/C0
190 336 356 240 135 6.5 6.6
NICE-LWX-4003-A/B/C0
NICE-LWX-4005-A/B/C0
NICE-LWX-4007-A/B/C0
NICE-LWX-4011-A/B/C0
190 336 356 273 140 6.5 9.1
NICE-LWX-4015-A/B/C0
