NICE5000 User Manual 2 Product Information
- 25 -

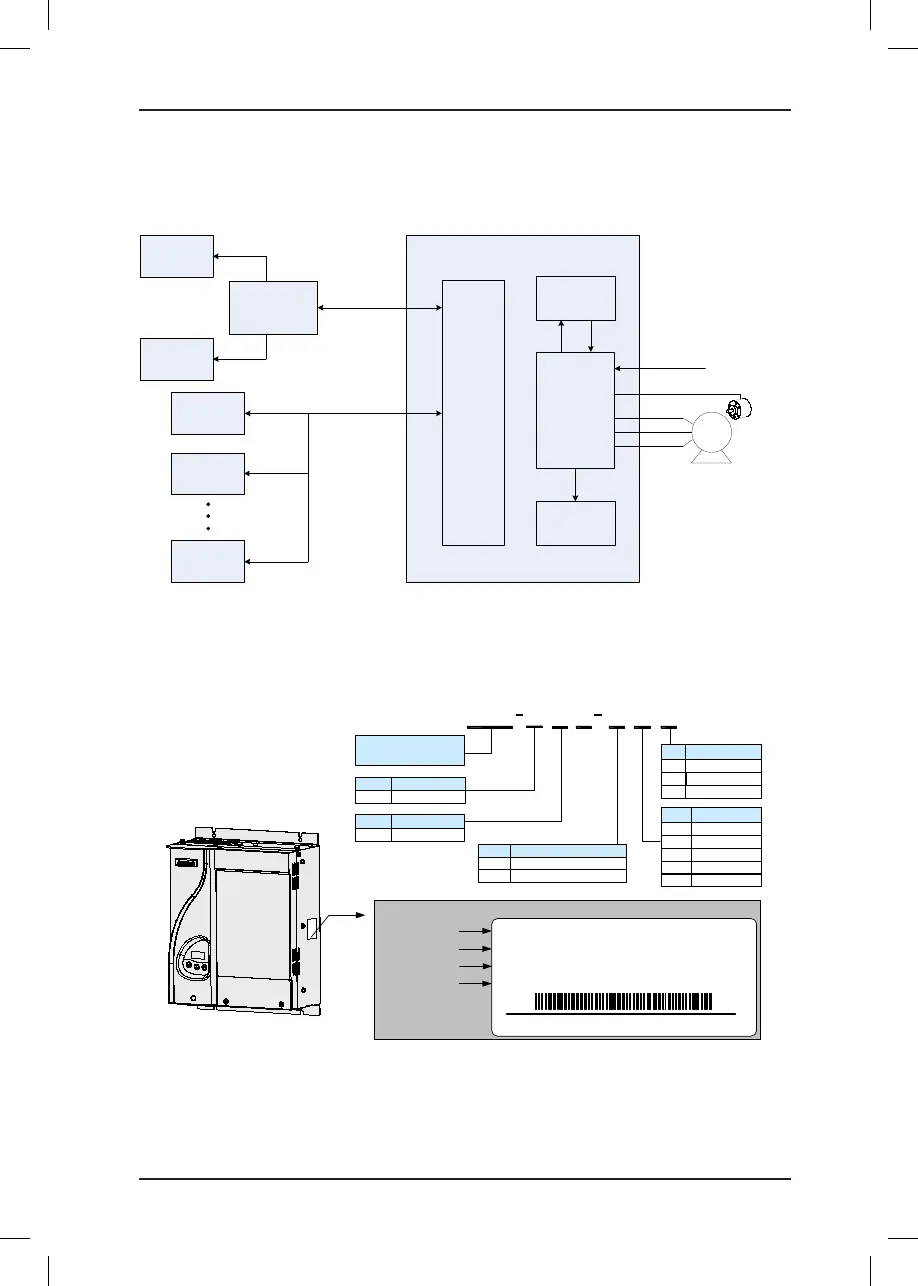

The following gure shows the system structure of the NICE5000.
Figure 2-2 System structure of the NICE5000
Drive circuit
of the motor
Power supply
circuit
MCTC-HCB
MCTC-CCB
Input power
CANbus
MCTC-CTB
Modbus
MCTC-HCB
NICE5000 integrated elevator
controller
MCTC-HCB
MCTC-HCB
M
Encoder
Motor
Encoder feedback
U
V
W
Braking unit
Modbus
Control circuit of the controller
2.2 Designation Rules and Model Description
2.2.1 Designation Rules and Nameplate
Figure 2-3 Designation rules and nameplate of the NICE5000
NICE
X
L
40
15
L
Mark
Controller Type
20
Mark
Voltage Class
40 Three-phase 380 V
02 2.2 kW
03 3.7 kW
~ ~
Power Rating
30 30 kW
45 45 kW
W
Subcategory
A0
Mark
Single/Three-phase 220 V
NICE series integrated
elevator controller
W
NICE5000
For elevator
A0 Enclosusre
B0 Semi-enclosure
Structure
Mark
C0 Full open
Mark
MODEL: NICE-LWX-4015-A0
INPUT: 3PH AC380-440V 36A 50/60Hz
OUTPUT: 3PH AC 0-440V 33A 0-99Hz 15kw
Suzhou MONARCH Control Technology Co.Ltd
S/N: 010150602803825403
Nameplate
Controller model
Rated input
Rated output
Manufacturing SN
The NICE5000 can drive both the AC asynchronous motor and PMSM. When encoder is
used, select a PG card matching the encoder type.
The structure in the controller model indicates the degree to which the PCB is enclosed by
