Device information, product serial number and part number label.
4.
Side conduit tab
For installations that require cabling through a side conduit, this tab should be removed and replaced
by the conduit shroud.
5.
Cable entry hole
An entry hole for the cables required for camera operation.

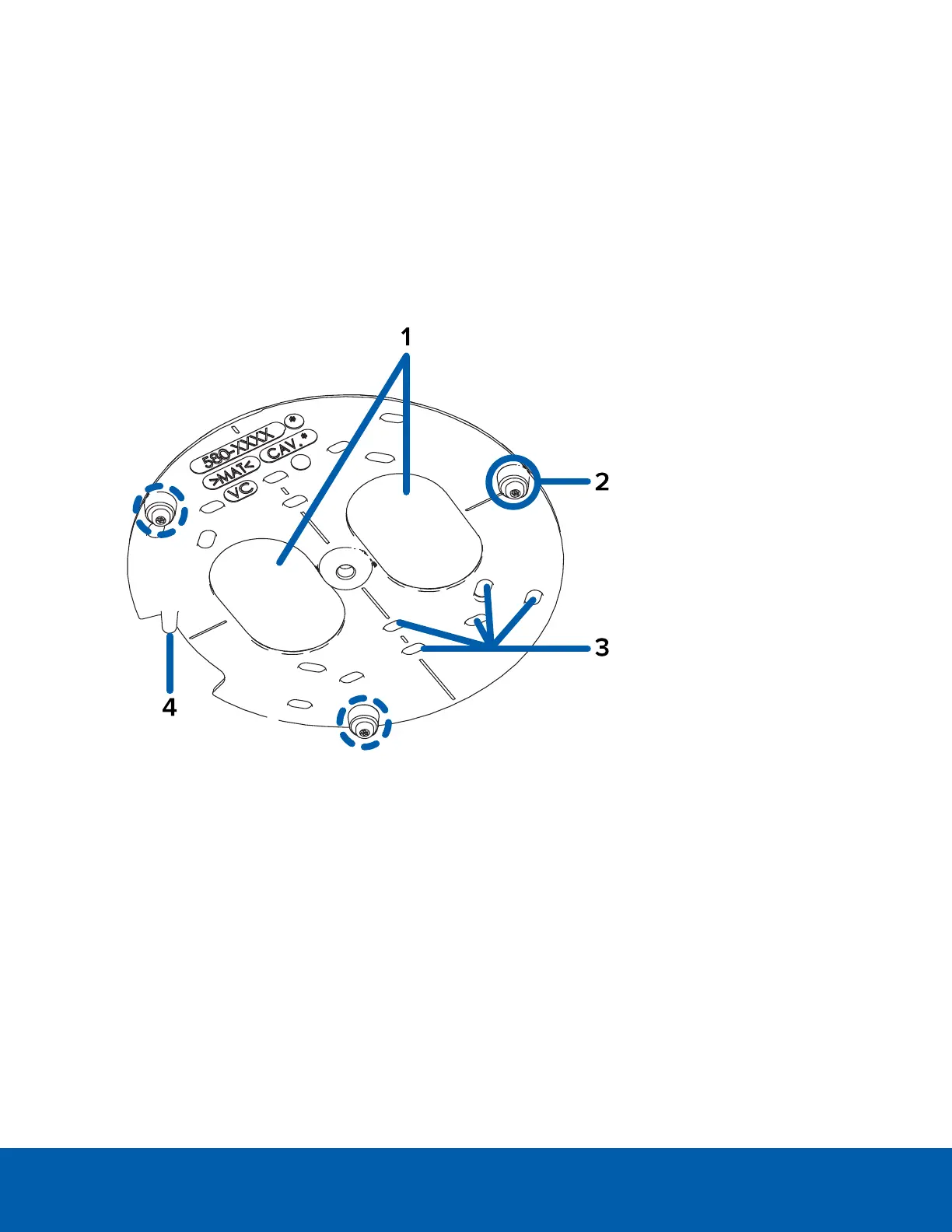

Wall Plate Adapter View
1.
Cable entry holes
Entry holes for the cables required for camera operation.
2.
Camera mounting posts
Align the mounting posts on the wall plate adapter to the mounting slots on the camera base.
3.
Mounting holes
Holes for mounting the wall plate to the following:
l UK standard single gang box
l Octagon gang box
Wall Plate Adapter View 4
To Next Page
