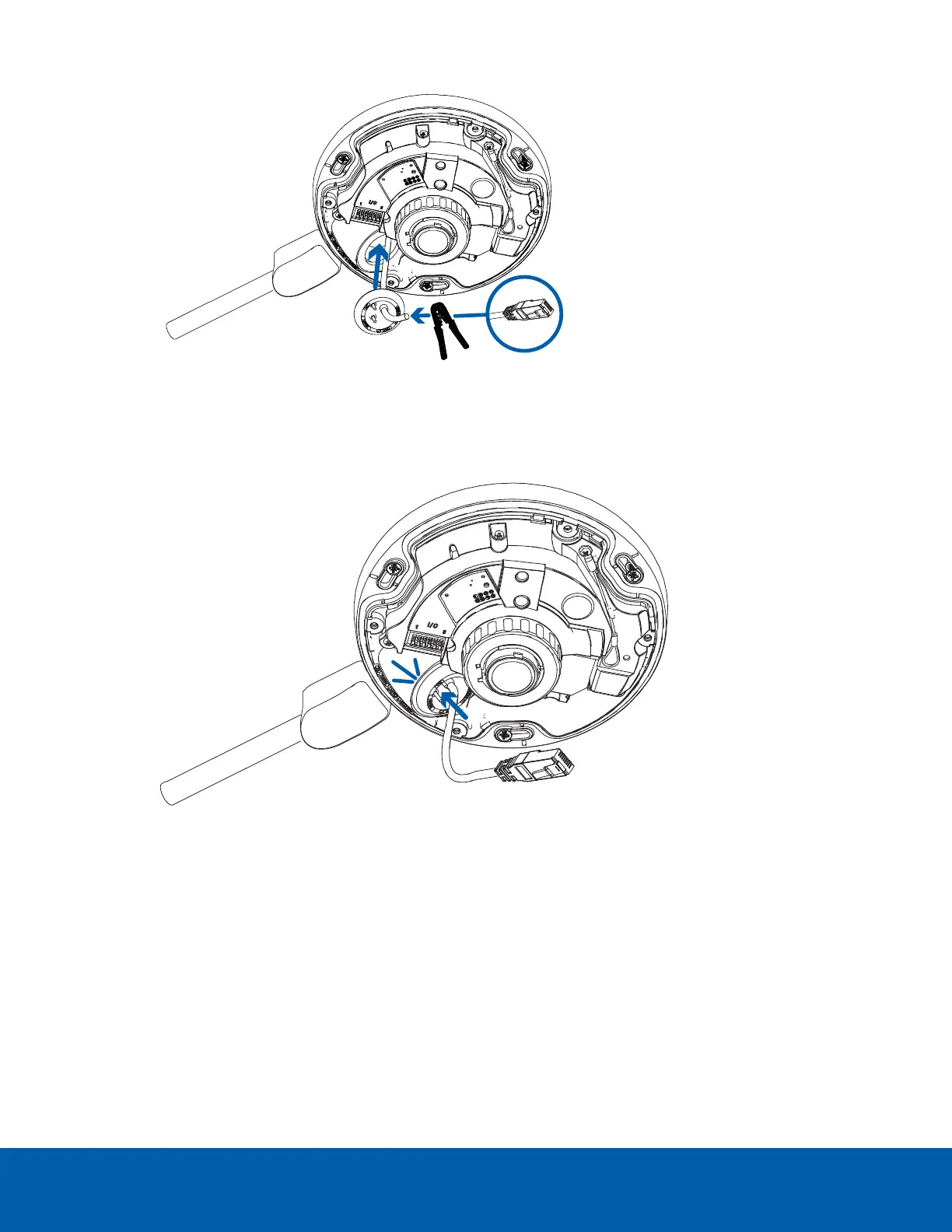

10. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera
base. The thread around the grommet should line up with the cable entry hole.
The rubber grommet should be pressed firmly into the cable entry hole to create a seal.
Mounting the Camera to an Electrical Box
Perform the following steps if the required electrical components and cables must be contained in an
electrical gang box. To mount the camera to an electrical gang box, you must use the provided wall plate
adapter.
1. Install the electrical gang box as required.
2. Align the wall plate adapter mounting holes to the mounting points on the electrical gang box.
If you are mounting the camera to a wall, make sure the up orientation arrow on the wall plate is at the
top, or the video image will be rotated. For more information, see Mounting in the Correct Orientation
Mounting the Camera to an Electrical Box 25
