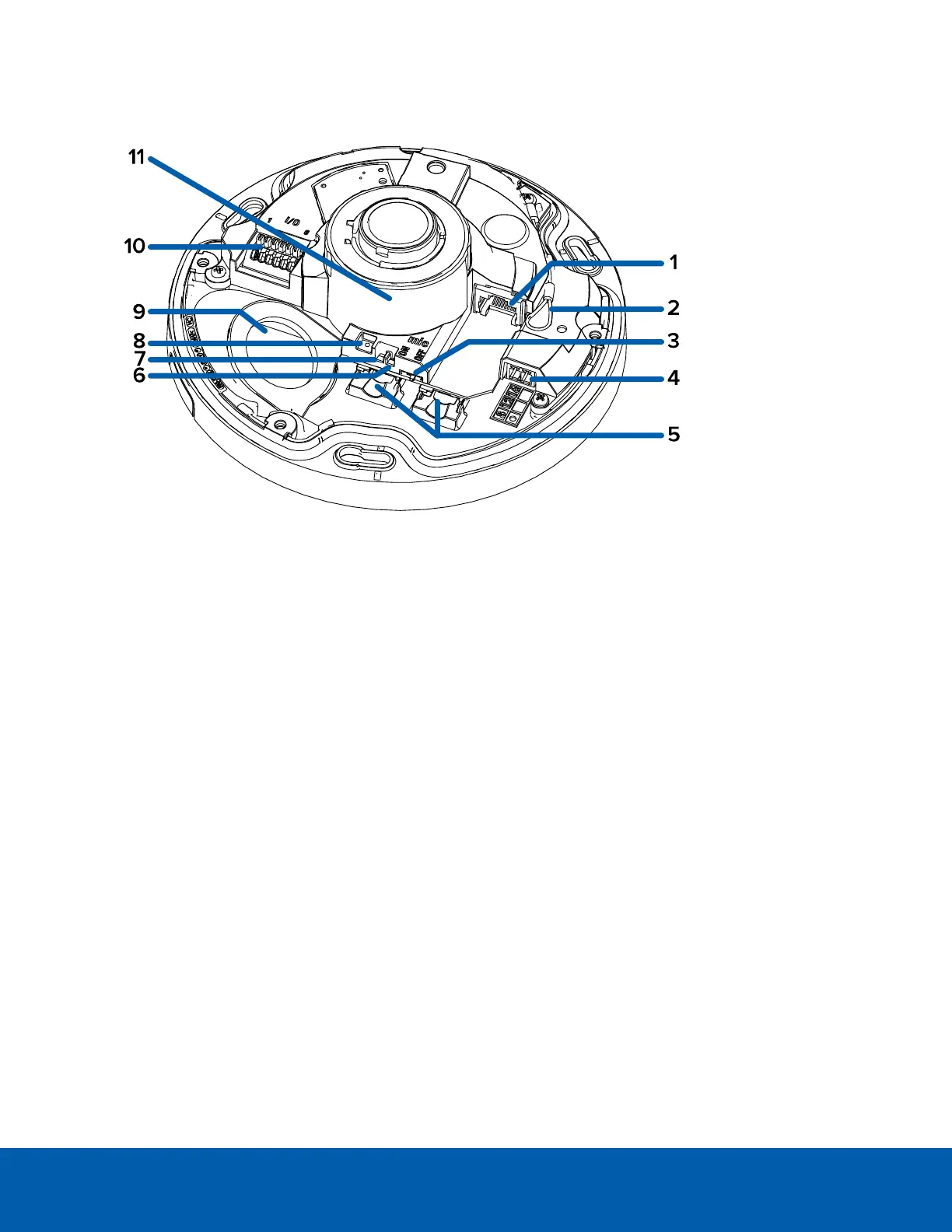

Internal View
1.
Ethernet port
Accepts an Ethernet connection to a network. Server communication and image data transmission
occurs over this connection. Also receives power when it is connected to a network that provides
Power over Ethernet.
2.
Lanyard
Anchors the cover to the camera base.
3.
Microphone switch
Switch to enable or disable the built-in microphone. For more information, see (Optional) Enabling the
Microphone on page55.
4.
Power connector block
Accepts an external DC power connection when Power over Ethernet is not available.
5.
microSD card slots (x2)
Accepts up to two microSD cards for onboard storage. Install microSD cards so the metal contacts
are facing upward. For more information, see (Optional) Configuring Onboard Storage on page55.
6.
Connection status LED indicator
Green LED provides information about device operation. For more information, see Connection
Status LED Indicator on page60.
7.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
