3.
Camera mounting posts
Align the mounting posts on the in-ceiling adapter to the mounting slots on the camera base.
4.
Orientation post
Orientation post that fits properly into the cable entry hole area of the camera base. Post will prevent
installation in the incorrect orientation.
H5A-FE-MT-NPTA — Pendant Mount

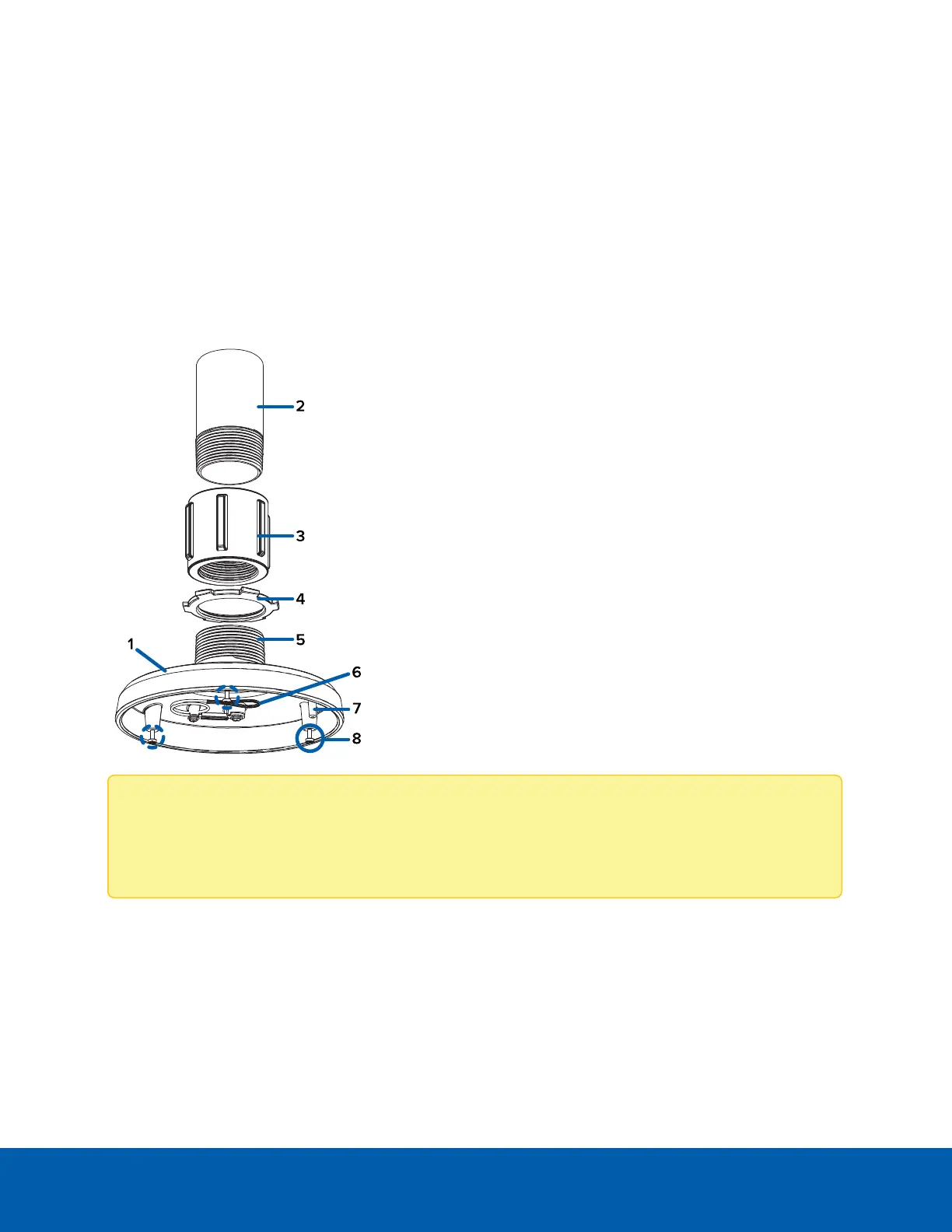

NPT Adapter View
Note: The NPT pipe and NPT-female to NPT-female adapter are not supplied by Avigilon and
should be sourced separately. However, if you are using the NPT adapter (H5A-FE-MT-NPTA1), the
lock nut is included.
1.
Pendant NPT adapter
Camera pendant mount adapter for NPT pipes and wall arm installations.
2.
NPT pipe
NPT pipe used for a pendant mount with the NPT adapter.
3.
1-1/2” NPT-female to NPT-female adapter
H5A-FE-MT-NPTA — Pendant Mount 8
