Status LED Indicator on pageî60.
8.
Link LED indicator
Amber LED indicates if there is an active connection in the Ethernet port.
9.
Firmware revert button
Resets the camera to its factory default settings.
10.
Cable entry hole
An entry hole for the cables required for camera operation.
11.
I/O connector block
Provides connections to external input/output and audio devices.
12.
Serial number tag
Device information, product serial number and part number label.

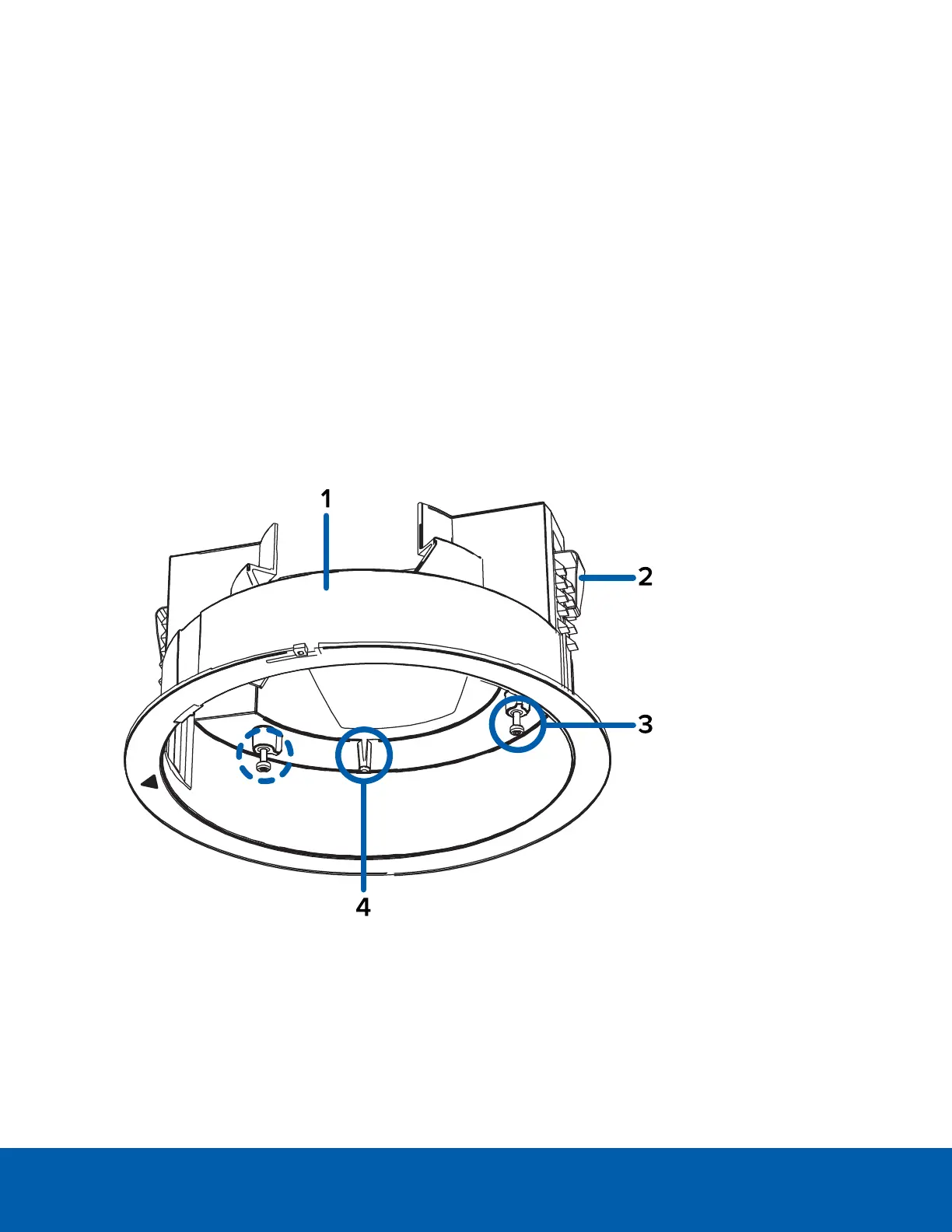

In-Ceiling Mount View
1.
In-ceiling mount adapter
Used to mount the camera to a ceiling.
2.
Clamps
Manually adjustable clamps for securing the camera to the ceiling.
In-Ceiling Mount View 7
