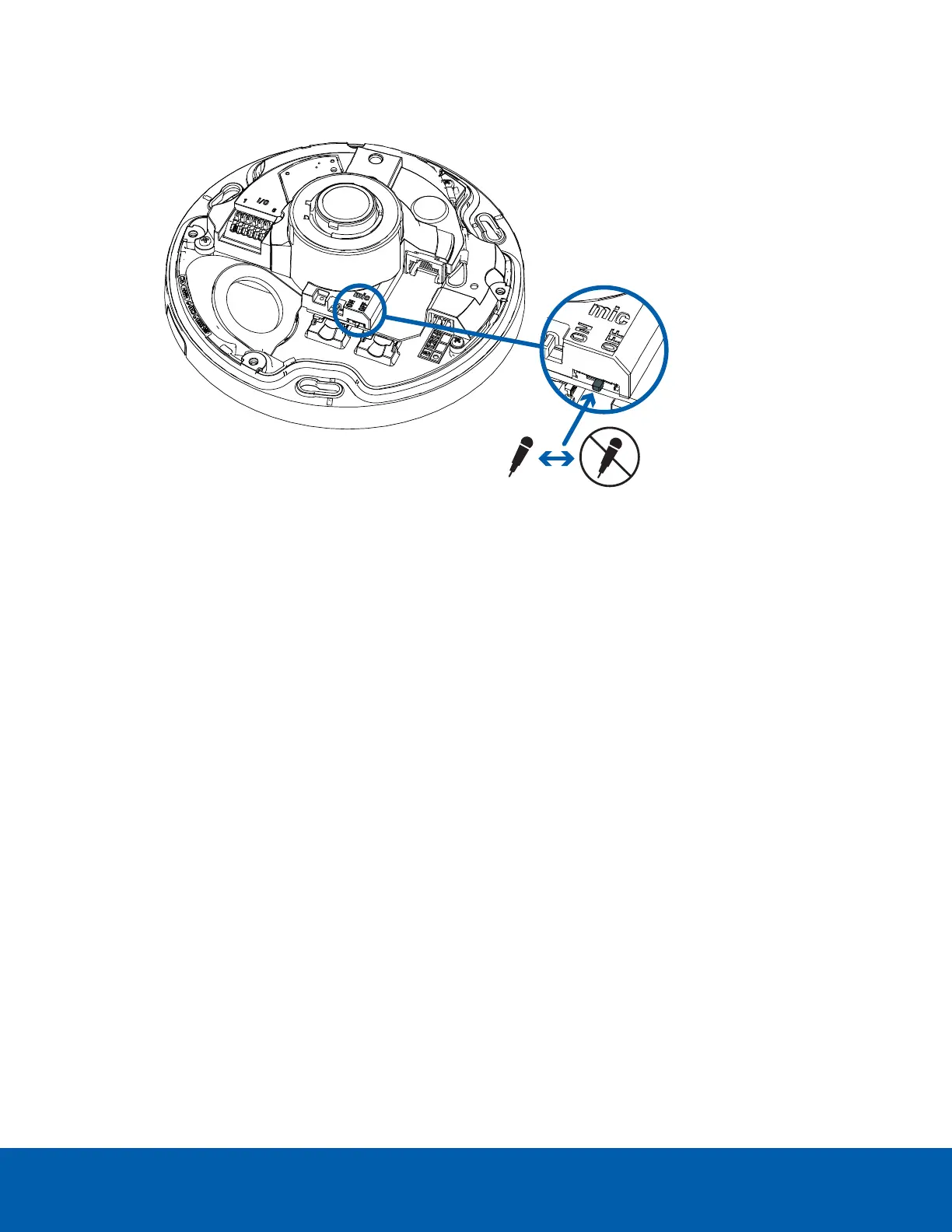

1. Locate the microphone switch on the camera assembly.
2. Slide the switch from the default OFFposition to ON to enable the microphone.
Configuring the Microphone
The H5A Fisheye Camera features two microphones: a built-in microphone and an external audio input.
After you've connected the required microphones, you can configure the microphones or line level audio
input from the camera web interface or in the ACC Client software.
l In the camera web interface, the microphones are configured from the Microphone page. You can
adjust the microphone volume by changing the gain.
o
Internal Microphone Gain — configures the gain for the microphone that is built into the
camera.
o
External Source Gain — configures the gain for any line level audio input that is connected to
the audio input connector on the I/O terminal block.
For more information, see the Camera Web Interface User Guide.
l In the ACC Client software, the microphones are configured in the Microphone dialog box that can be
accessed from the camera's Setup tab. You can adjust the microphone volume by changing the gain
and link the audio to other cameras in the site.
o
External Input — configures the gain for any line level audio input that is connected to the
audio input connector on the I/O terminal block.
o
Internal Mic — configures the gain for the microphone that is built into the camera.
For more information, see the Avigilon Control Center Client User Guide.
Configuring the Microphone 56
