Mounting the Camera to a Ceiling or Wall
Perform the following steps if the required cables will be coming from inside the mounting surface and the
camera will be mounted immediately over the cable hole. Use this procedure on surfaces that can be easily
drilled into, and when the cables should be kept out of sight.

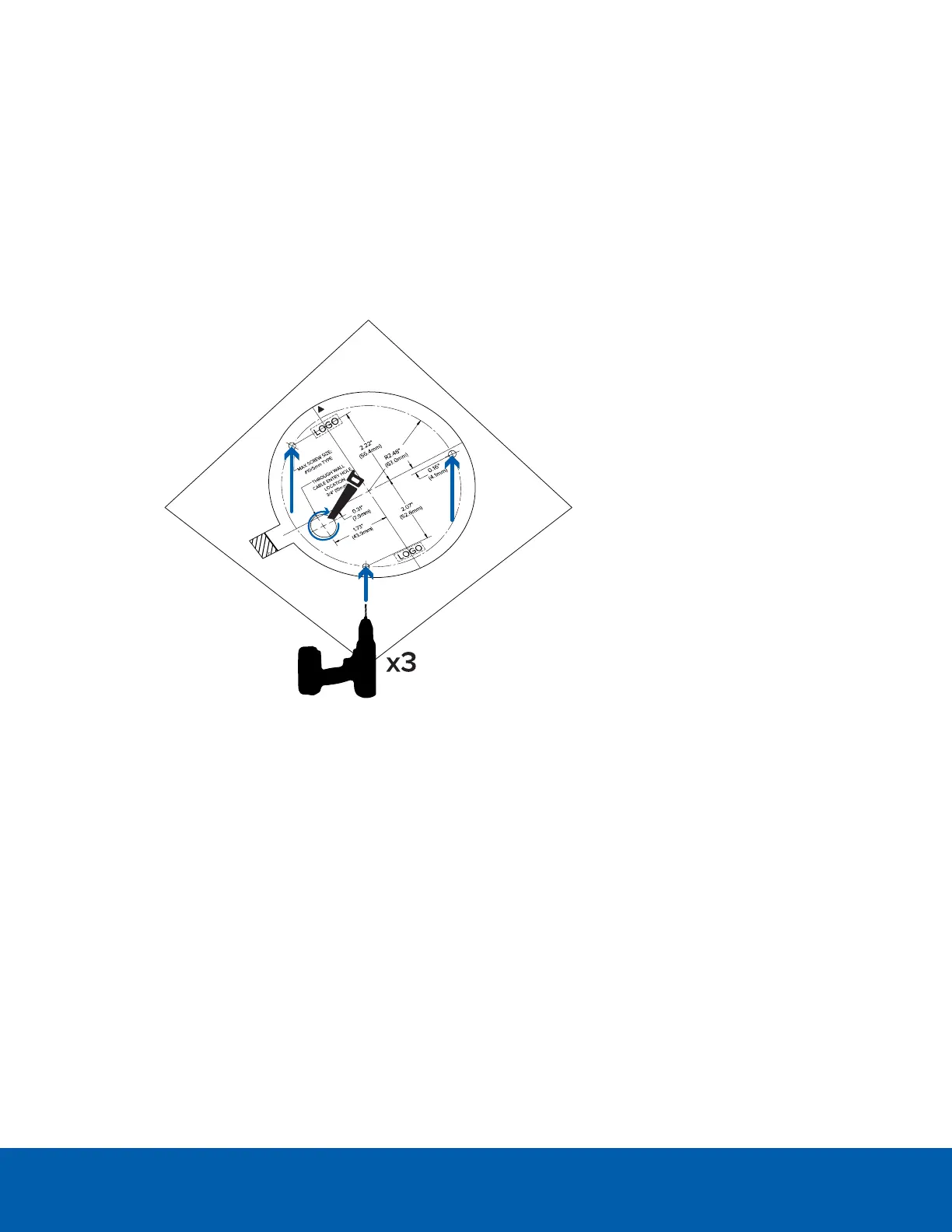

1. Using the Surface Mounting Template, drill 3 pilot holes into the mounting surface for the mounting
screws.
If you are mounting the camera to a wall, make sure the up orientation arrow is at the top, or the video
image will be rotated. For more information, see Mounting in the Correct Orientation on pageî17.
2. Hammer the supplied plastic anchors into the holes.
3. Drill the cable entry hole into the mounting surface.
4. Pull the required cables through the mounting surface and through the cable entry hole in the camera
base.
Mounting the Camera to a Ceiling or Wall 19
