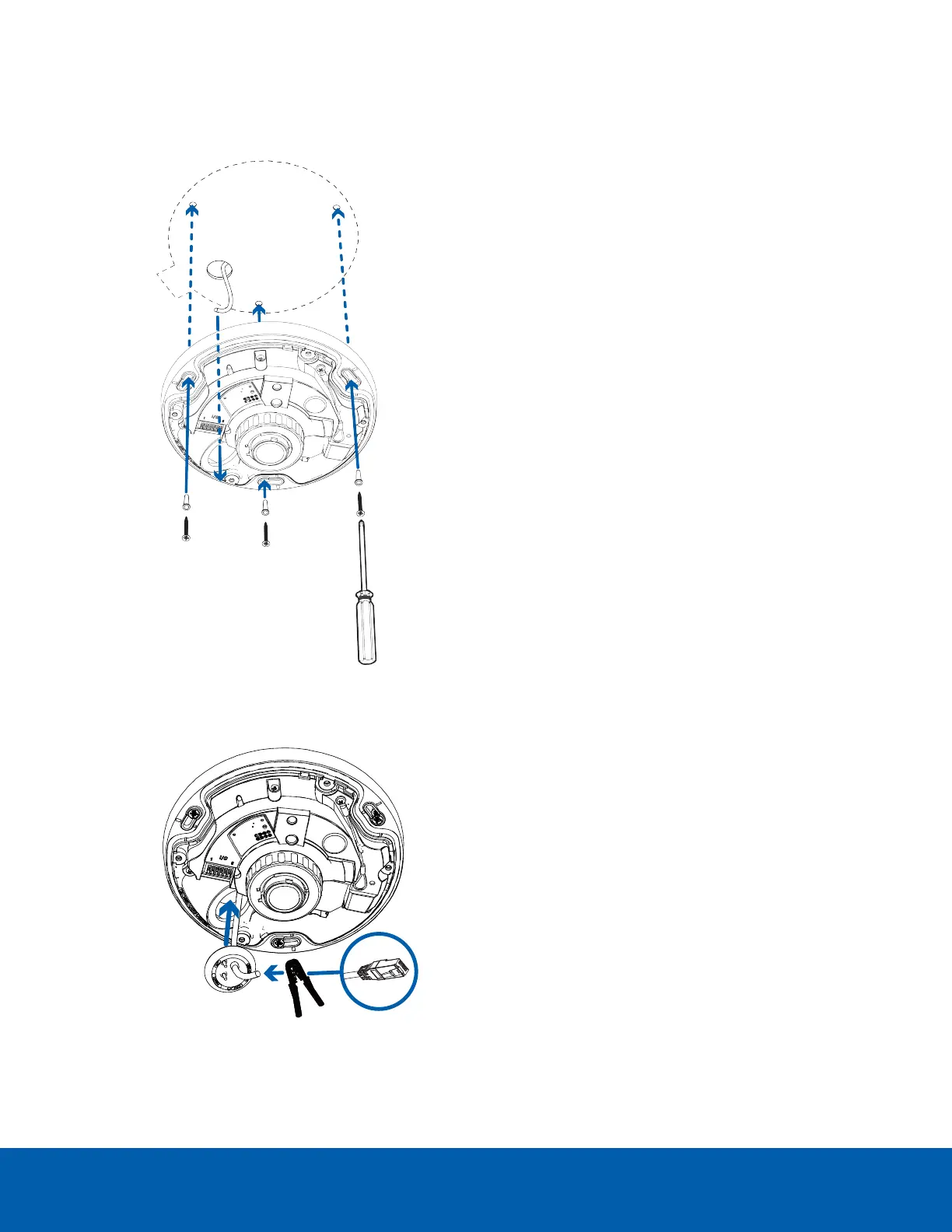

5. Align the up orientation arrow on the camera base with the arrow on the mounting template. Align the

mounting slots on the camera base to the drilled pilot holes and use the provided self-tapping screws

to secure the camera to the mounting surface.

6. Pull the required cables through the rubber sealing grommet. For more information, see Preparing

the Cables on page13.

Mounting the Camera to a Ceiling or Wall 20

Table of Contents5
Overview8
H5A-FE-DO - Surface Mount8
Cover View8
Internal View9
Bottom View10
Wall Plate Adapter View11
H5A-FE-DC - In-Ceiling Mount12
Cover View12
Internal View13
In-Ceiling Mount View14
H5A-FE-MT-NPTA - Pendant Mount15
NPT Adapter View15
Pendant Wall Mount Bracket View16
Pendant Wall Mount View17
Preparing the Installation18
Pre-Deployment In-Box Configuration18
Removing the Fisheye Cover19
Mounting and Aiming Video Analytics Cameras20
Preparing the Cables20
Inserting an Ethernet Cable through the Single-Hole Grommet21
Inserting Cables through the 3-Hole Grommet22
Surface Mount Installation24
Required Tools and Materials24
Camera Package Contents24
Installation Steps24
Mounting in the Correct Orientation24
Mounting the Camera to a Ceiling or Wall26
Mounting the Camera Using the Side Conduit Entry Hole28
Mounting the Camera to an Electrical Box32
Connecting Cables36
Installing the Fisheye Cover37
In-Ceiling Mount Installation39
Required Tools and Materials39
Camera Package Contents39
Installation Steps39
Mounting in the Correct Orientation39
Using the In-Ceiling Mounting Adapter41
Installing the Camera Base into the Mounting Adapter44
Connecting Cables47
Installing the In-Ceiling Cover48
Pendant Mount Installation50
Required Tools and Materials50
Camera Package Contents50
Installation Steps50
Mounting the Camera to a Pipe50
Mounting the Camera to the Pendant Wall Mount52
Installing the Camera into the NPT Adapter55
Connecting Cables58
Installing the Fisheye Cover59
Connecting to the Camera61
Initializing a Camera Username and Password61
Assigning an IP Address61
Accessing the Live Video Stream62
(Optional) Configuring Onboard Storage62
(Optional) Enabling the Microphone62
Configuring the Microphone63
Configuring the Camera64
For more Information64
Cable Connections65
Connecting External Power65
Connecting to External Audio and I/O Devices65
Connection Status LED Indicator67
Troubleshooting Network Connections and LED Behavior67
Resetting to Factory Default Settings69
Setting the IP Address Using the Arp/Ping Method70
Cleaning71
Dome Bubble71
Body71
