Cable Connections
Connecting External Power
If PoE is not available, the camera needs to be powered through the removable power connector block.
Refer to the Overview section for the location of the power connector block.
To connect power to the power connector block, complete the following steps:
1. Remove the power connector block from the camera.
2. Remove the insulation from ¼” (6mm) of the power wires. Do not nick or damage the wires.
3. Insert the two power wires into the two terminals on the power connector block. The connection can
be made with either polarity.
Use a small slotted (5/64 or 2mm blade width) screwdriver to loosen and tighten the terminals.
4. Attach the power connector block back into the camera.
WARNING This product is intended to be supplied by a UL Listed Power Unit marked “Class 2 or
“LPS or “Limited Power Source with output rated 12 VDC, 11 W min. (26 W min. with -IR model) or
PoE, 11 W min. (26 W min. with -IR model).

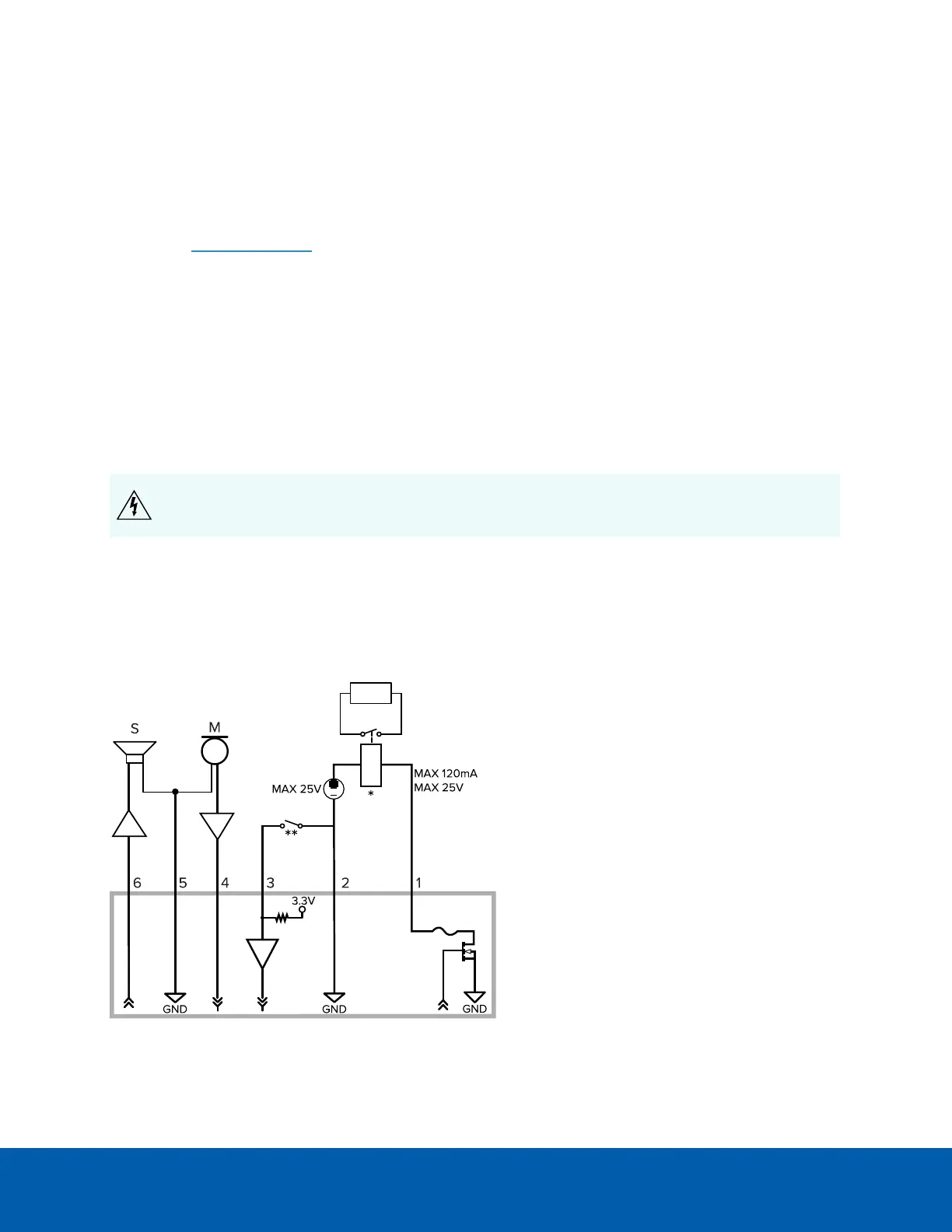

Connecting to External Audio and I/O Devices
External audio and I/O devices are connected to the camera through the audio and I/O connector block. The
pinout for the connector block is shown in the following diagram:
Cable Connections 58
