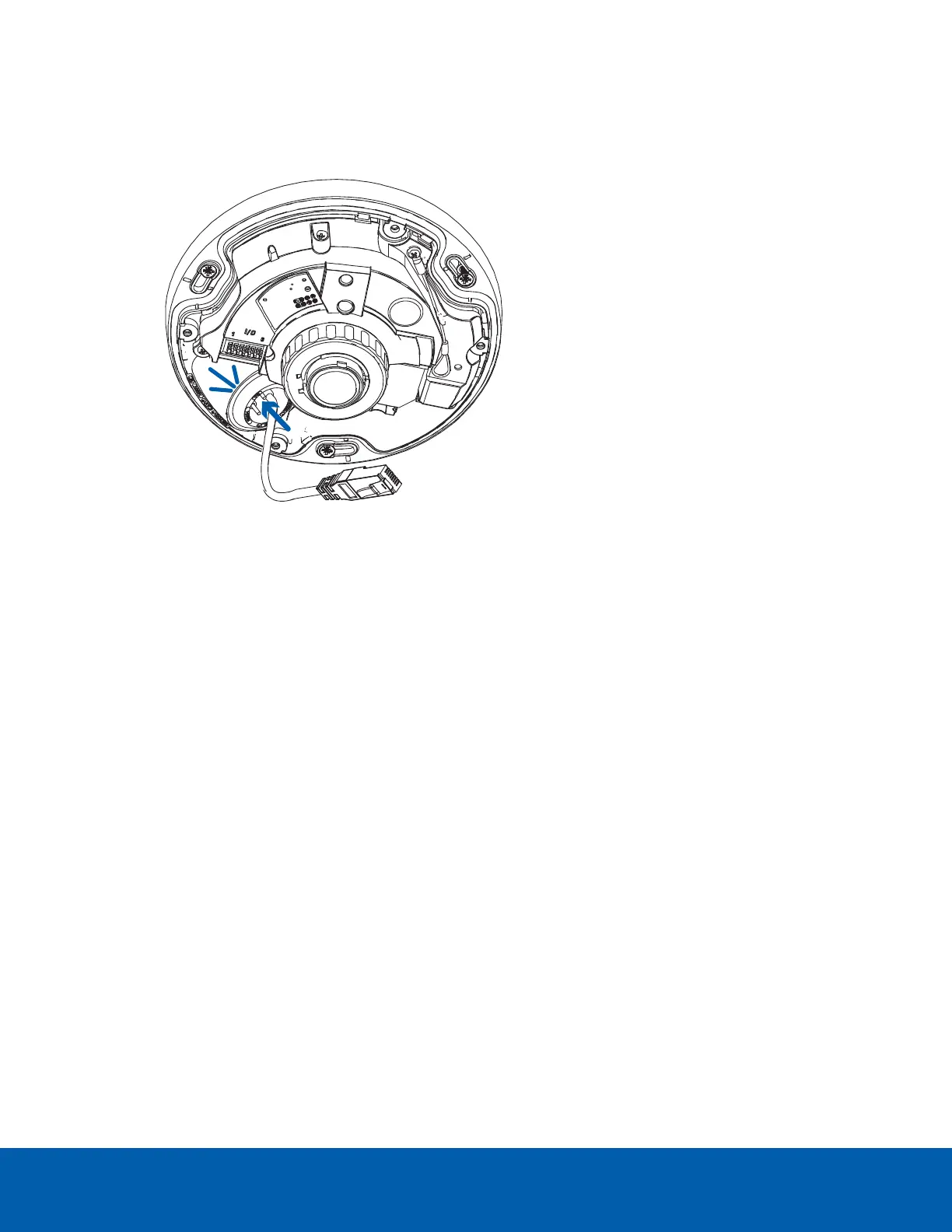

7. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera
base. The thread around the grommet should line up with the cable entry hole.
The rubber grommet should be pressed firmly into the cable entry hole to create a seal.
Mounting the Camera Using the Side Conduit Entry Hole
Perform the following steps if the required cables will be run along the mounting surface. Use this procedure
if the mounting surface is difficult to drill into, or if the cables must be routed outside of the mounting surface.
1. Using the Surface Mounting Template, drill 3 pilot holes into the mounting surface for the mounting
screws.
If you are mounting the camera to a wall, make sure the up orientation arrow is at the top, or the video
image will be rotated. For more information, see Mounting in the Correct Orientation on pageî17.
Mounting the Camera Using the Side Conduit Entry Hole 21
