Motorola solutions Avigilon 8.0C-H5A-FE-DO1 - General Cable Connections

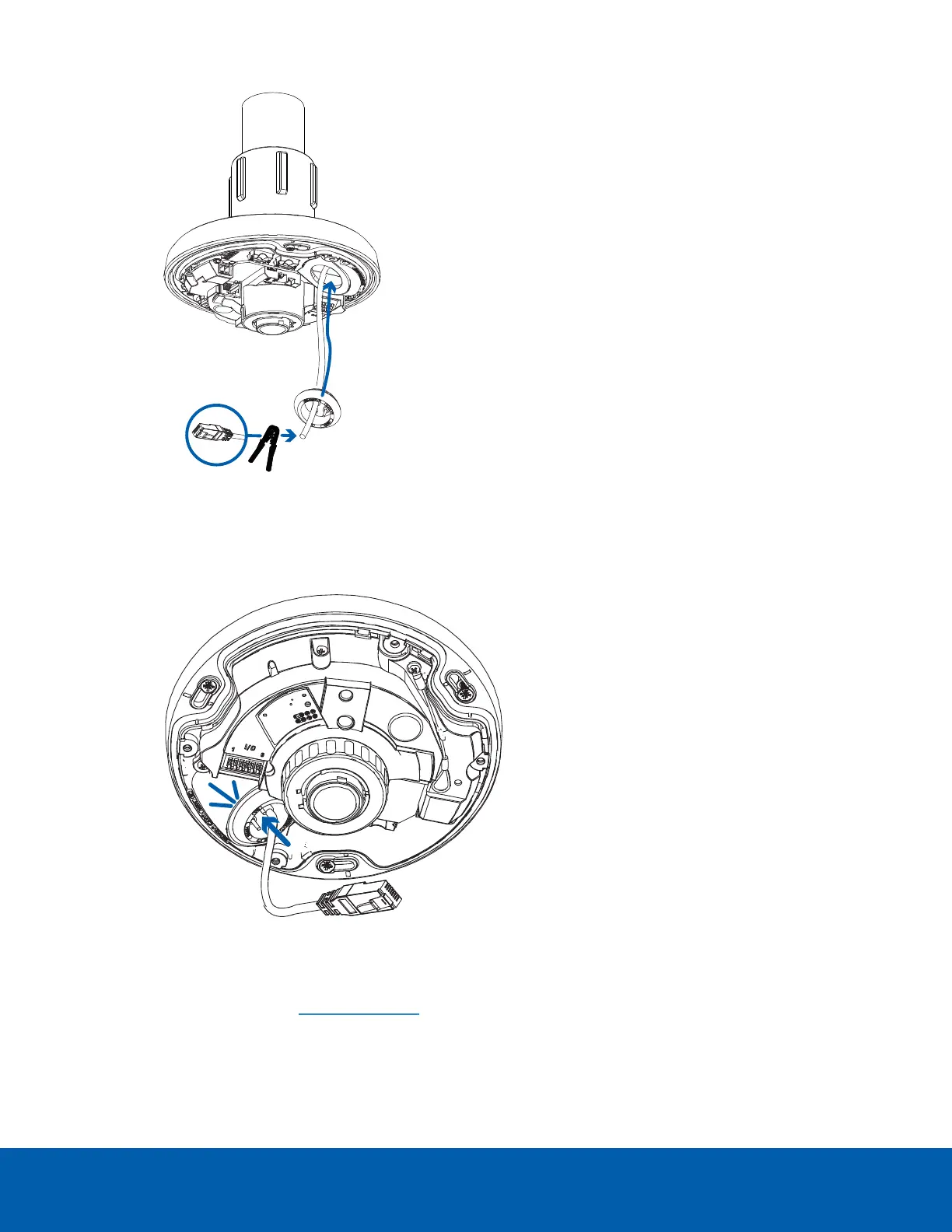

6. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera
base. The thread around the grommet should line up with the cable entry hole.
The rubber grommet should be pressed firmly into the cable entry hole to create a seal.
Connecting Cables
Refer to the diagrams in the Overview section for the location of the different connectors and status LEDs on
the camera base.
Connecting Cables 51
