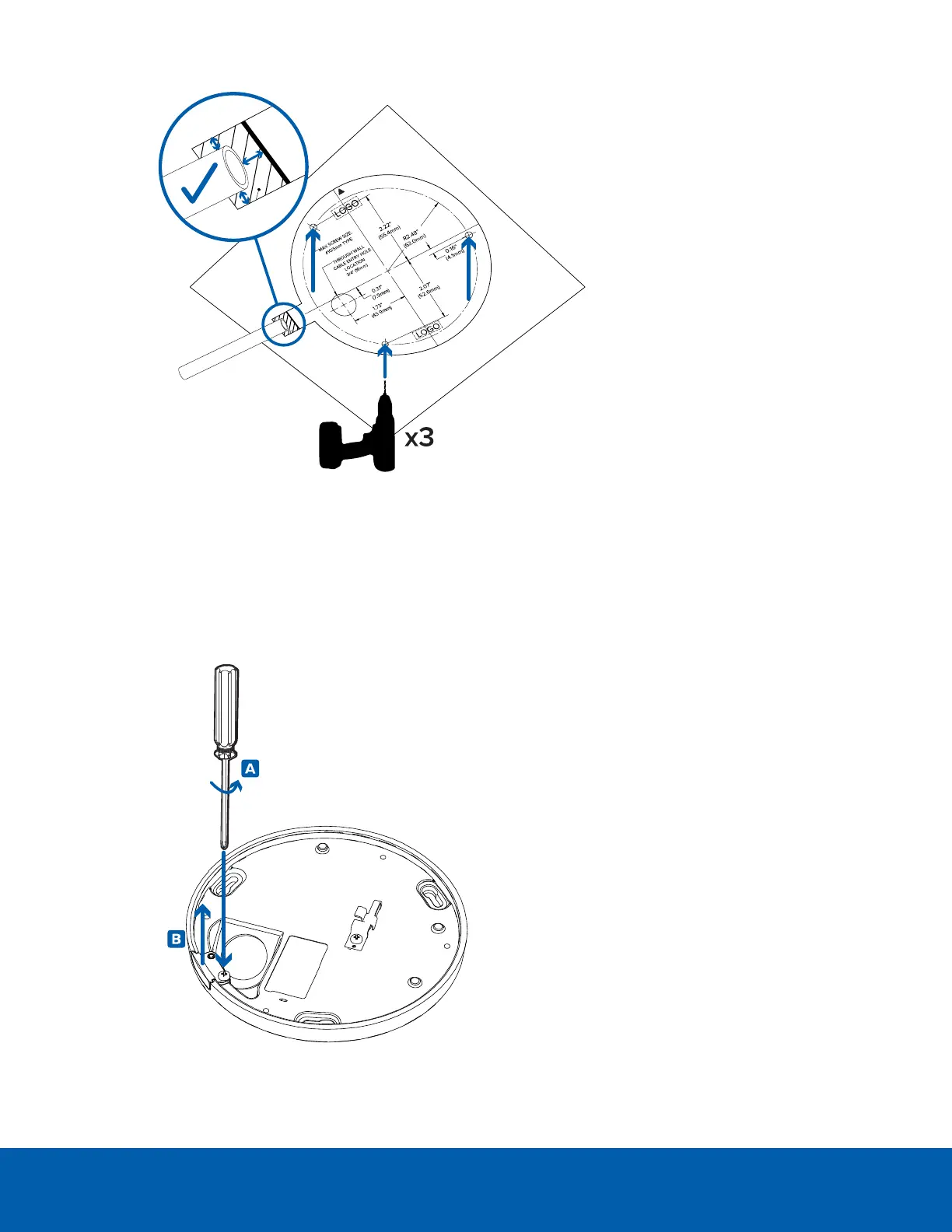

2. Align the conduit for the cables so that the end of the conduit falls inside the conduit landing area of
the mounting template.
3. Hammer the supplied plastic anchors into the holes.
4. Arrange and feed the required cables through the conduit.
5. Loosen the screw holding the cable entry tab on the side of the camera base. Remove the cable
entry tab.
Mounting the Camera Using the Side Conduit Entry Hole 22
