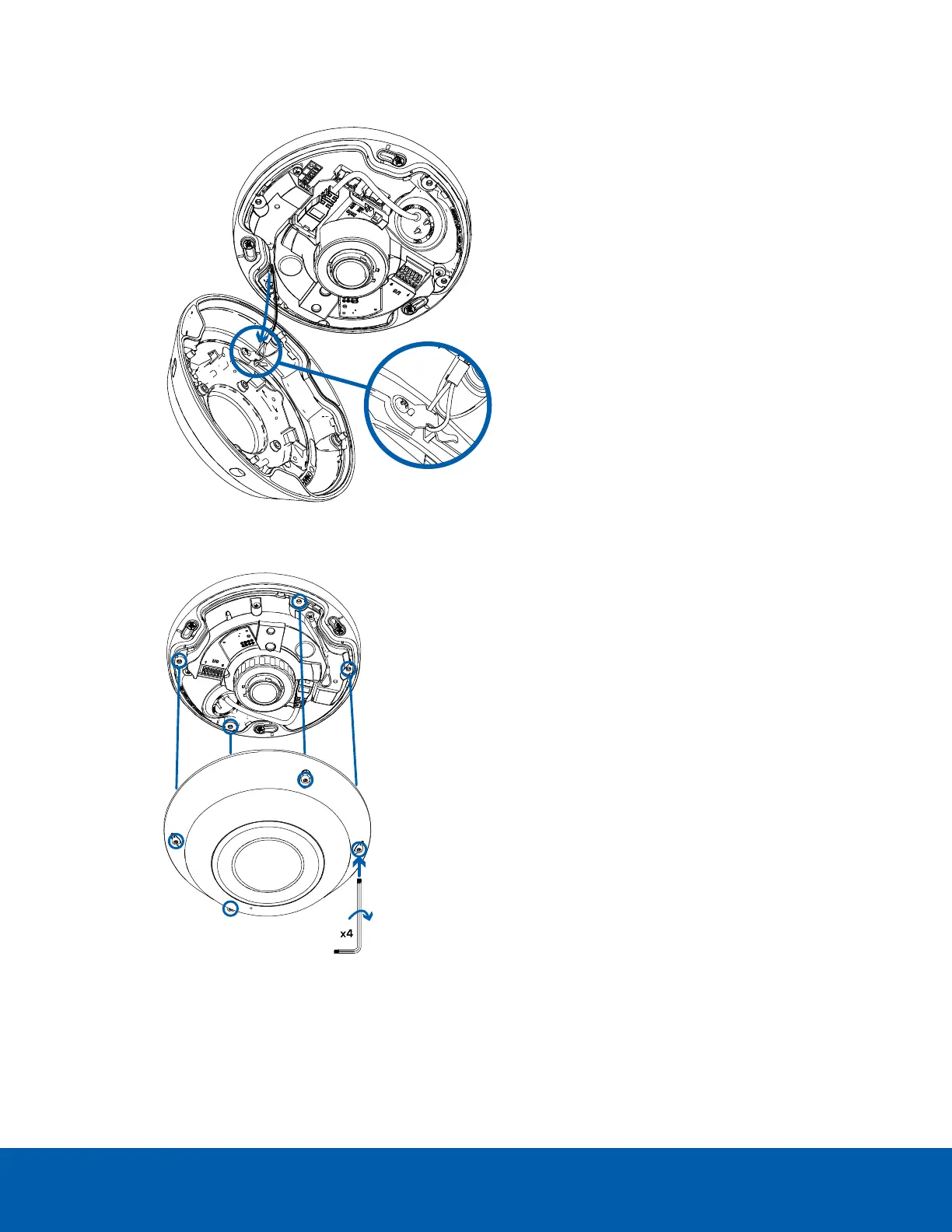

1. Attach the lanyard to the cover.

2. Attach the cover to the base and tighten the screws with the star-shaped screwdriver.

3. Remove the plastic cover on the dome bubble.

Installing the Fisheye Cover 31
