MT-NPTA1).
Note: This procedure requires a 1-1/2” NPT-female to NPT-female pipe adapter and conduit pipe
that are not supplied by Avigilon and should be sourced separately. It is recommended that the
NPT adapter be mounted to a 1-1/2” conduit pipe.
1. Pull the required cables through the NPT conduit pipe.
2. Apply thread seal tape to the pipe and screw on the 1-1/2” NPT female to NPT female pipe adapter.

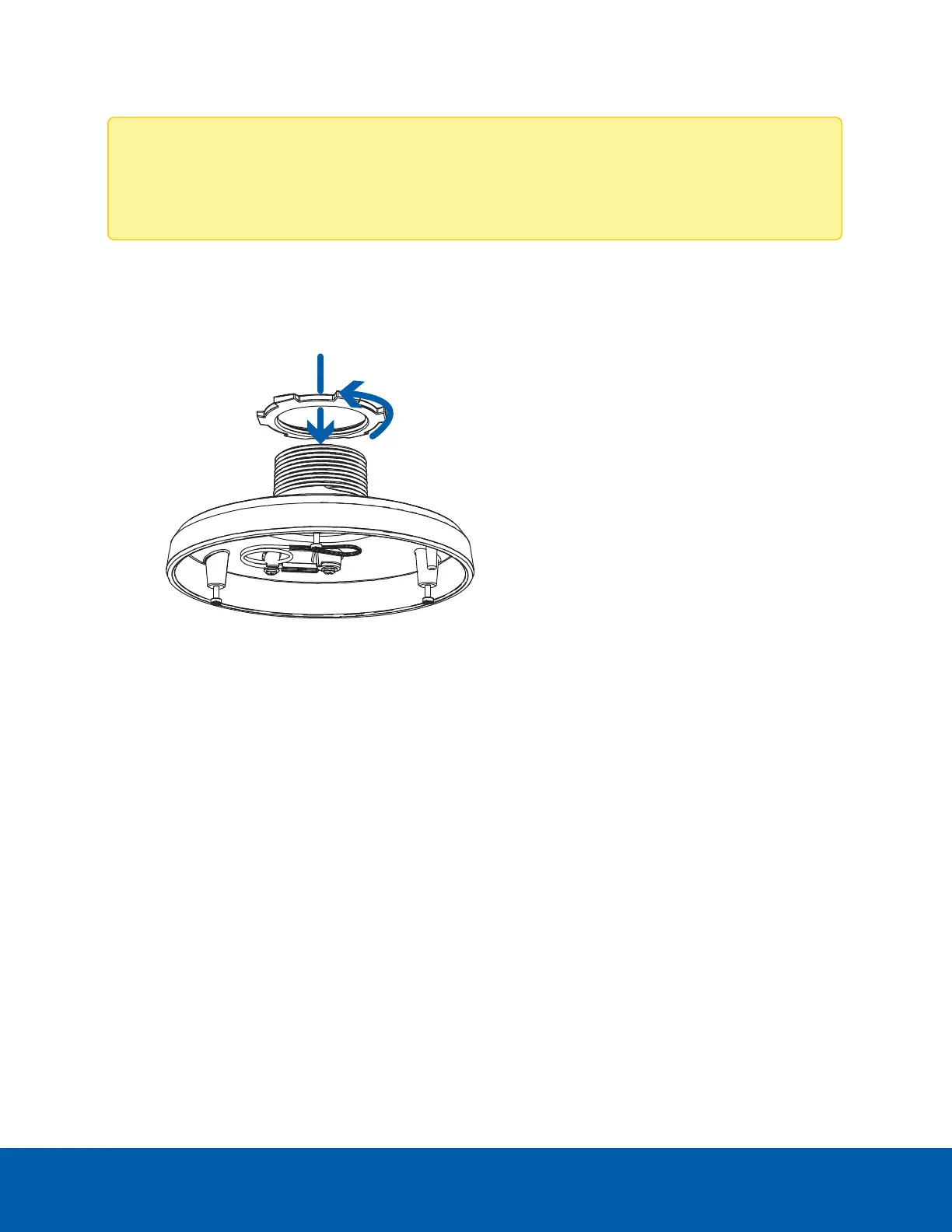

3. Screw the lock nut onto the NPT adapter.
4. Apply thread seal tape to the NPT adapter and screw it into the pipe adapter.
Make sure the parts are assembled in this order from NPT conduit pipe to camera adapter:
a. NPT conduit pipe
b. 1-1/2" NPT female to female pipe adapter
c. Lock nut
d. NPT adapter
Mounting the Camera to a Pipe 44
