Motorola APX 2000 Detailed Service Manual

5-58 Troubleshooting Charts: Bluetooth Failure

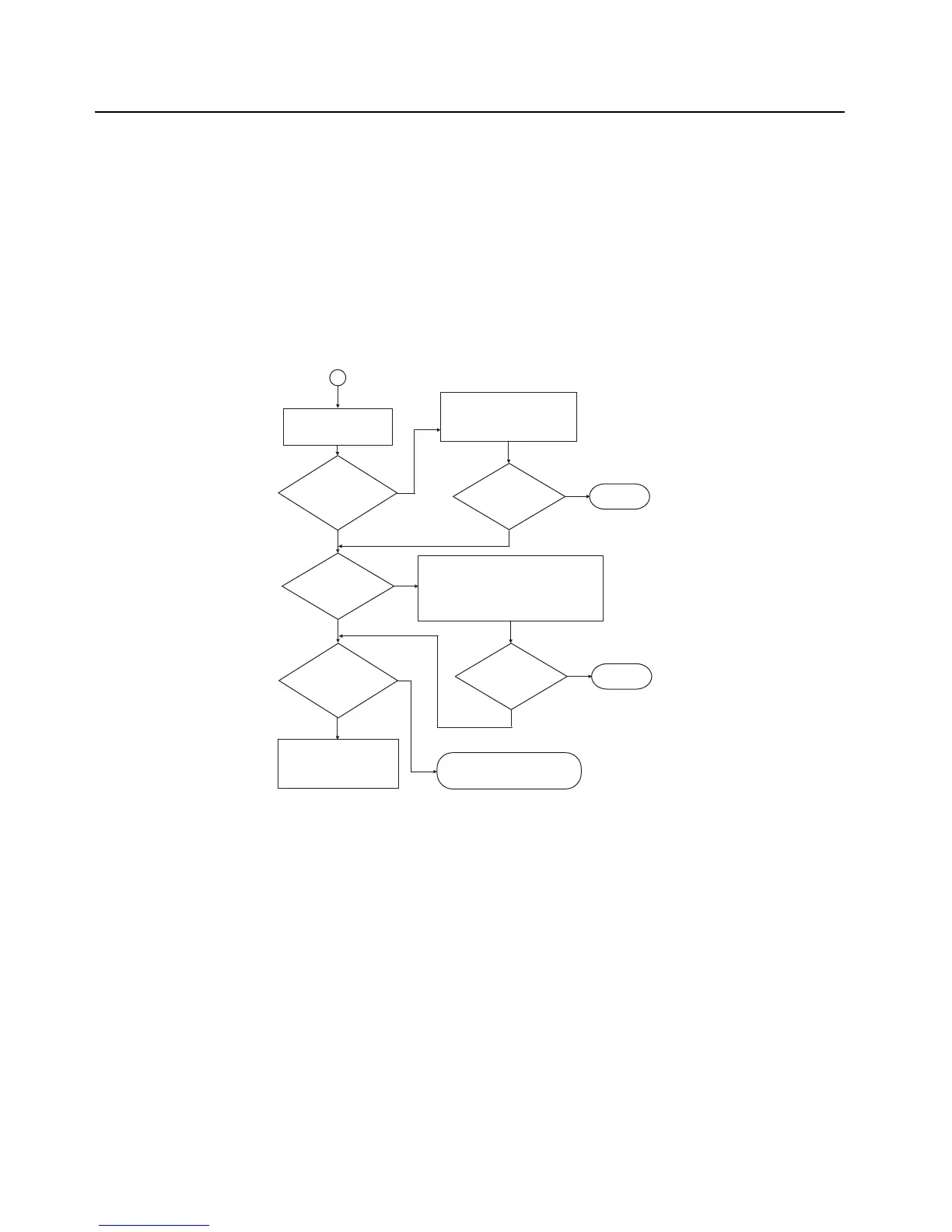

Bluetooth Failure – Page 6 (No Audio from Headset)
6
No
Determine what button is
programmed for BT audio reroute
from the codeplug and press it
Yes
Resolved
BT Audio
Reroute
programmed in
the code plug?
Power off the POD headset, then slightly turn
and press firmly on the earpiece connector to
ensure it is making good connection to the
POD. Power on the POD headset and re-
pair it with the APX radio.
Connect radio to PC
and read the codeplug
PTT on headset
produces low -
tone from radio
Yes
Audio heard
through BT
headset?
No
Yes
Yes
Resolved
Audio heard
through BT
headset?
Audio heard
through SU
without headset
paired?
Go to RX Audio flowchart
(5.9 or External
Speaker Audio Out Failure)
No
Yes
Try a different headset. If still fail,
replace Keypad board and retry.
No
No
