Motorola APX 2000 Detailed Service Manual

Troubleshooting Charts: Bluetooth Failure 5-57

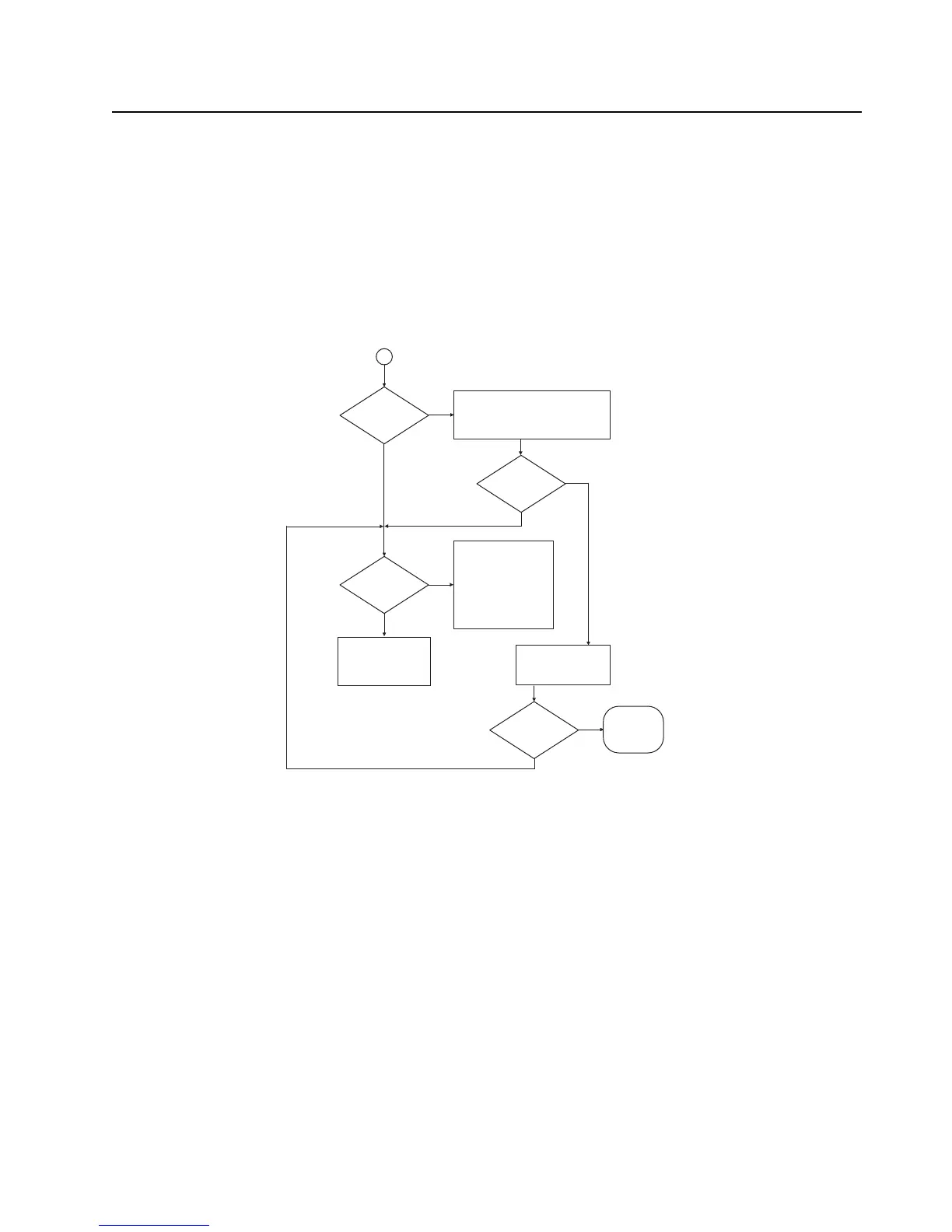

Bluetooth Failure – Page 5 (LCD Indication)
5
No
Open radio and check the front-kit
and back-kit flex connection on keypad
board. Recycle radio power.
Yes
Replace
Keypad
board
HW BRD
FAILED?
HW BRD
FAILED?
Yes
HW BRD
MISMATCH
Keypad board is a
basic model (without
BT), but BT feature is
turned on in codeplug.
Explain to user they
need to upgrade their
expansion board to a
full-featured model.
Non-Bluetooth
LCD Indication:
Issue may not be
Bluetooth/LF
No
No
Reload SW in APX
radio. Enable BT and
recycle radio power.
No
Yes
HW BRD
FAILED?
Yes

Motorola APX 2000 Specifications

General

IP Rating	IP67
Operating Temperature	-30°C to +60°C
GPS	Optional
Bluetooth	No
Frequency Range	700/800 MHz
Power Output	1-5 W (VHF), 1-3 W (700/800 MHz)
Channels	Up to 1, 000
Battery Life	Up to 10 hours (digital)
Digital Protocol	APCO P25
Frequency	VHF: 136-174 MHz, UHF: 380-470 MHz, 700/800 MHz: 764-870 MHz
Power	1-3W (700/800 MHz), 1-5W (VHF)
