3-32 Theory of Operation: Controller
3.2.4.2 Memory
In addition to the internal RAM, the OMAP 1710 Processor (U6302) features three distinct external
memory interfaces. All memory devices are located on the main board, as elaborated in Figure 3-20.
The external memory interface is shown in Figure 3-21.

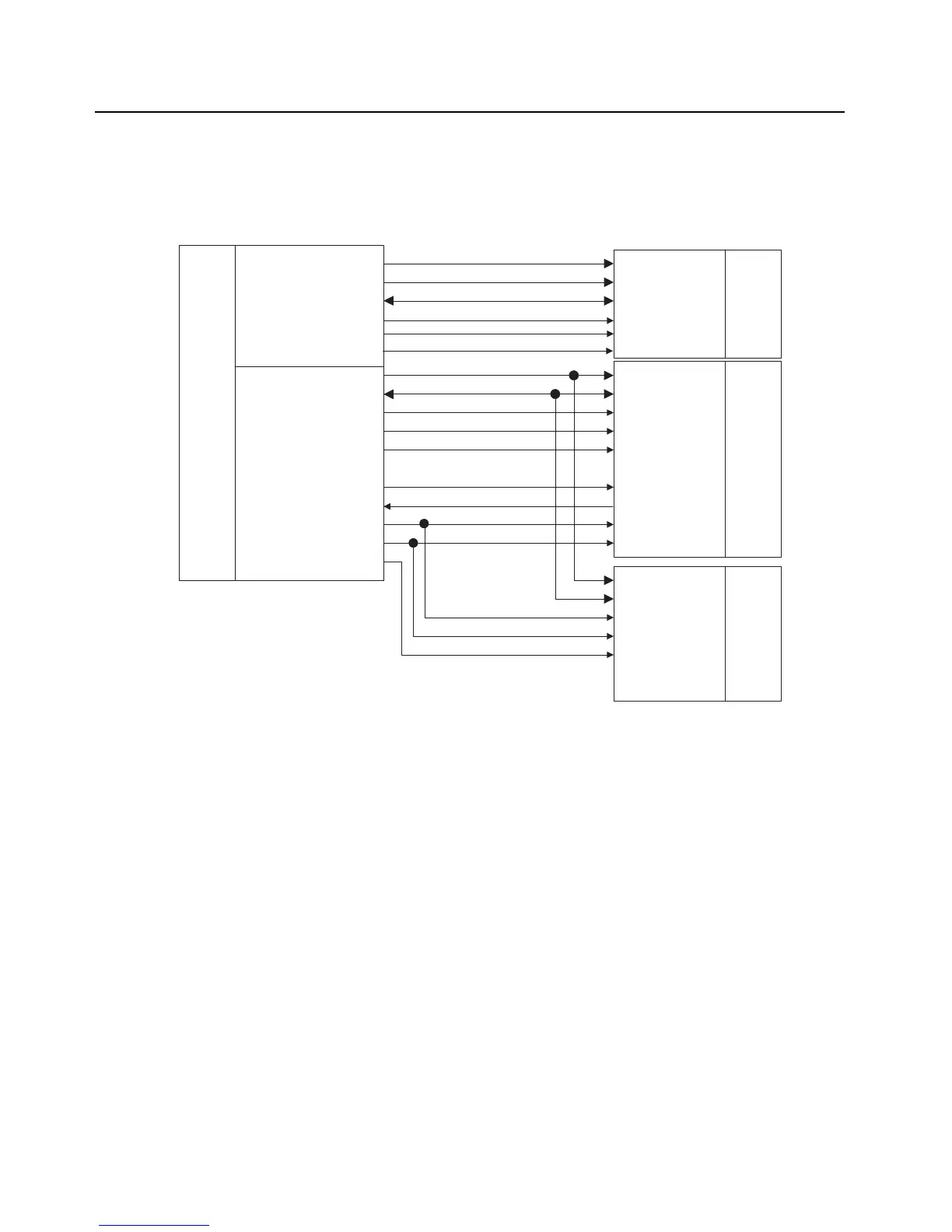

Figure 3-21. OMAP Memory Interface
3.2.4.3 Asynchronous External Memory Interface
The EMIFS is used for transferring data between the ARM or DSP cores and the 64 MB External
NOR Flash memory (U6304). The Flash memory is a non-volatile memory unit, primarily used to
store the radio's executable code, along with device configuration values, event logs, and
initialization codes. The flash memory is primarily accessed during the main board’s power up and
power down cycles.
3.2.4.4 Flash Memory (6304)
The Flash memory located in close proximity to the OMAP processor is a 64 MB Numonyx 65nm
StrataFlash. The flash interface uses 16 data bits and 25 address bits. The flash IC is enabled by
OMAP processor's CS3 line. The flash IC also features a WAIT line that is capable of halting data
flow between the processor and flash IC while operating in synchronous read mode.
3.2.4.5 CPLD Interface (U6101)
The CPLD (U6101) registers are also mapped to the Asynchronous External Memory Interface.
These registers control the CPLD GPIO pins and enable the OMAP to expand its GPIO capability via
memory mapped IO.
SDATA_15:0
SADD_13:0
DDR_CTRL_5:0
SDCLK
SDCLKX
FADD_25:1
FDATA_15:0
NF_ADV
NF_CS1
NF_CS3
NF_OE
NF_WE
FCLK
NF_RP
FRDY
EMIFF
EMIFS
OMAP
DDR
SDRAM
DDR_CTRL_5:0
A13:0
DQ15:0
CK
CK#
EN_CLKE
A25:1
DQ15:0
EN_CE
EN_RST
EN_WE
CLK
WAIT
ADV
EN_WE
ADDR_5:1
DATA_4:0
CPLD_ADV
CPLD_R/W
CPLD_CS
FLASH MEMORY
CPLD
WAIT_SW_EN
SDCLK_EN
