9 - 60 LI2208 Product Reference Guide
Matrix 2 of 5
Enable/Disable Matrix 2 of 5
Parameter # F1h 6Ah
To enable or disable Matrix 2 of 5, scan the appropriate bar code below.
Set Length(s) for Matrix 2 of 5
Parameter # L1 = F1h 6Bh, L2 = F1h 6Ch
The length of a code refers to the number of characters (i.e., human readable characters), including check
digit(s) the code contains. Set lengths for Matrix 2 of 5 to any length, one or two discrete lengths, or lengths
within a specific range. The default option is Length Within Range. The range is 4 to 80.
•
One Discrete Length - Select this option to decode only Matrix 2 of 5 symbols containing a selected
length. Select the length using the numeric bar codes in Appendix E, NUMERIC BAR CODES. For
example, to decode only Matrix 2 of 5 symbols with 14 characters, scan Matrix 2 of 5 - One Discrete
Length, then scan 1 followed by 4. To correct an error or to change the selection, scan Cancel on
page E-3.
•
Two Discrete Lengths - Select this option to decode only Matrix 2 of 5 symbols containing either of
two selected lengths. Select lengths using the numeric bar codes in Appendix E, NUMERIC BAR
CODES. For example, to decode only Matrix 2 of 5 symbols containing either 2 or 14 characters, select
Matrix 2 of 5 - Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to
change the selection, scan Cancel on page E-3.
•
Length Within Range - Select this option to decode a Matrix 2 of 5 symbol with a specific length
range. Select lengths using the numeric bar codes in Appendix E, NUMERIC BAR CODES. For
example, to decode Matrix 2 of 5 symbols containing between 4 and 12 characters, first scan Matrix 2
of 5 - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To
correct an error or change the selection, scan Cancel on page E-3. This is the default option (length
within range from 4 to 80).
•
Any Length - Scan this option to decode Matrix 2 of 5 symbols containing any number of characters
within the linear imager’s capability.

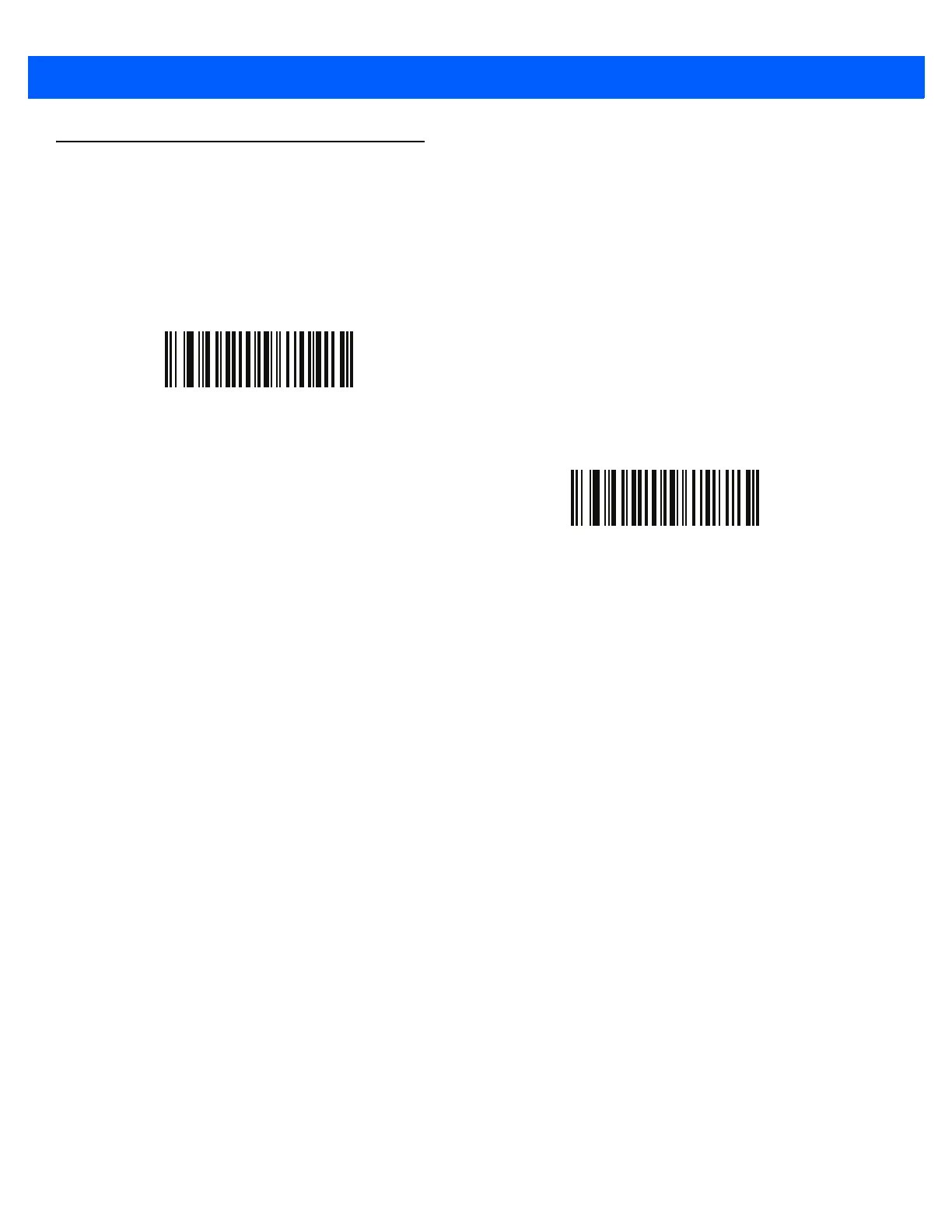

Enable Matrix 2 of 5
(01h)
*Disable Matrix 2 of 5
(00h)
