SYMBOLOGIES 9 - 65

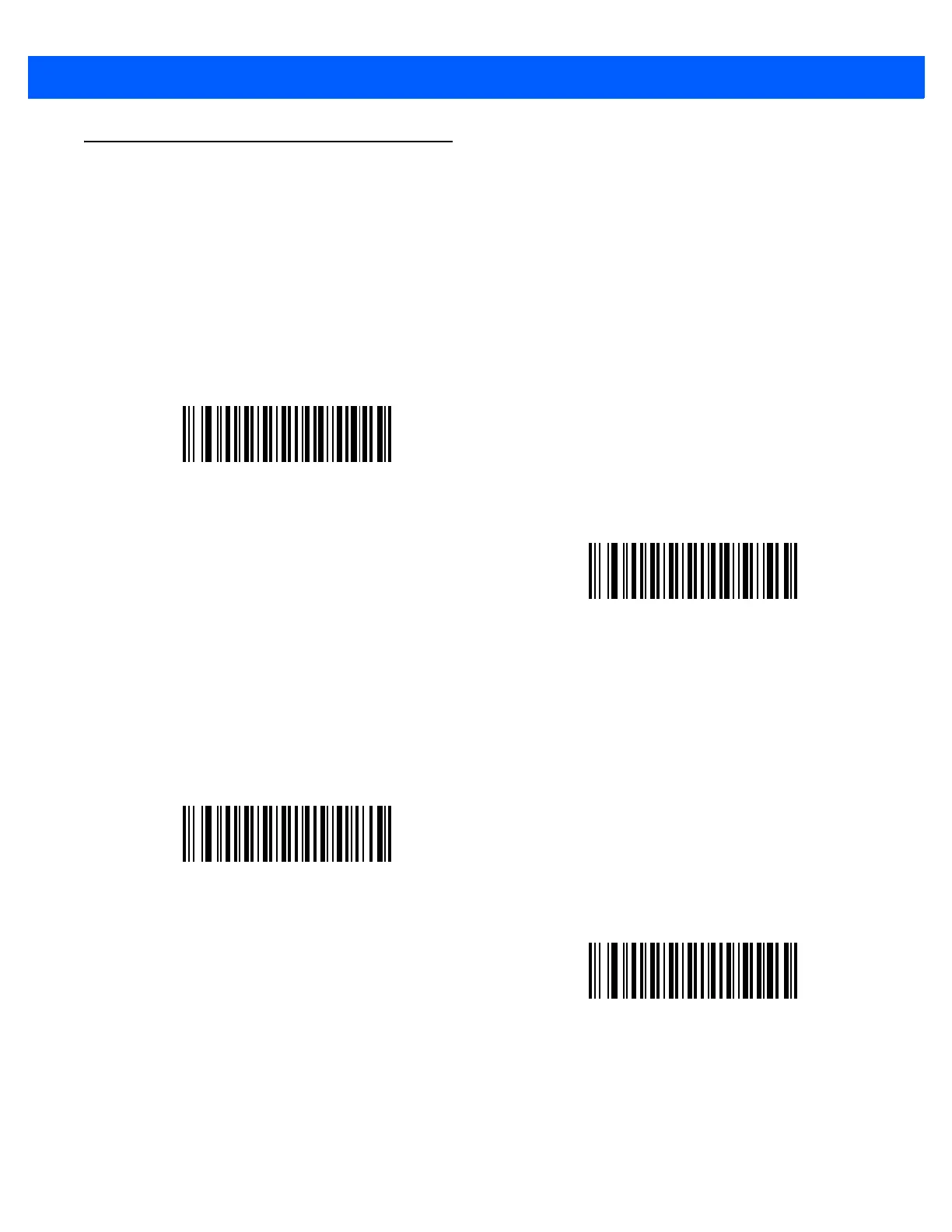

GS1 DataBar

The variants of GS1 DataBar are DataBar-14, DataBar Expanded, and DataBar Limited. The limited and

expanded versions have stacked variants. Scan the appropriate bar codes to enable or disable each variant of

GS1 DataBar.

GS1 DataBar-14

Parameter # F0h 52h

GS1 DataBar Limited

Parameter # F0h 53h

*Enable GS1 DataBar-14

(01h)

Disable GS1 DataBar-14

(00h)

* Enable GS1 DataBar Limited

(01h)

Disable GS1 DataBar Limited

(00h)
