Installing the MC32N0–R/S Battery
Procedure:
1 Loosen the handstrap.
2 Align the top of the battery into the battery compartment.

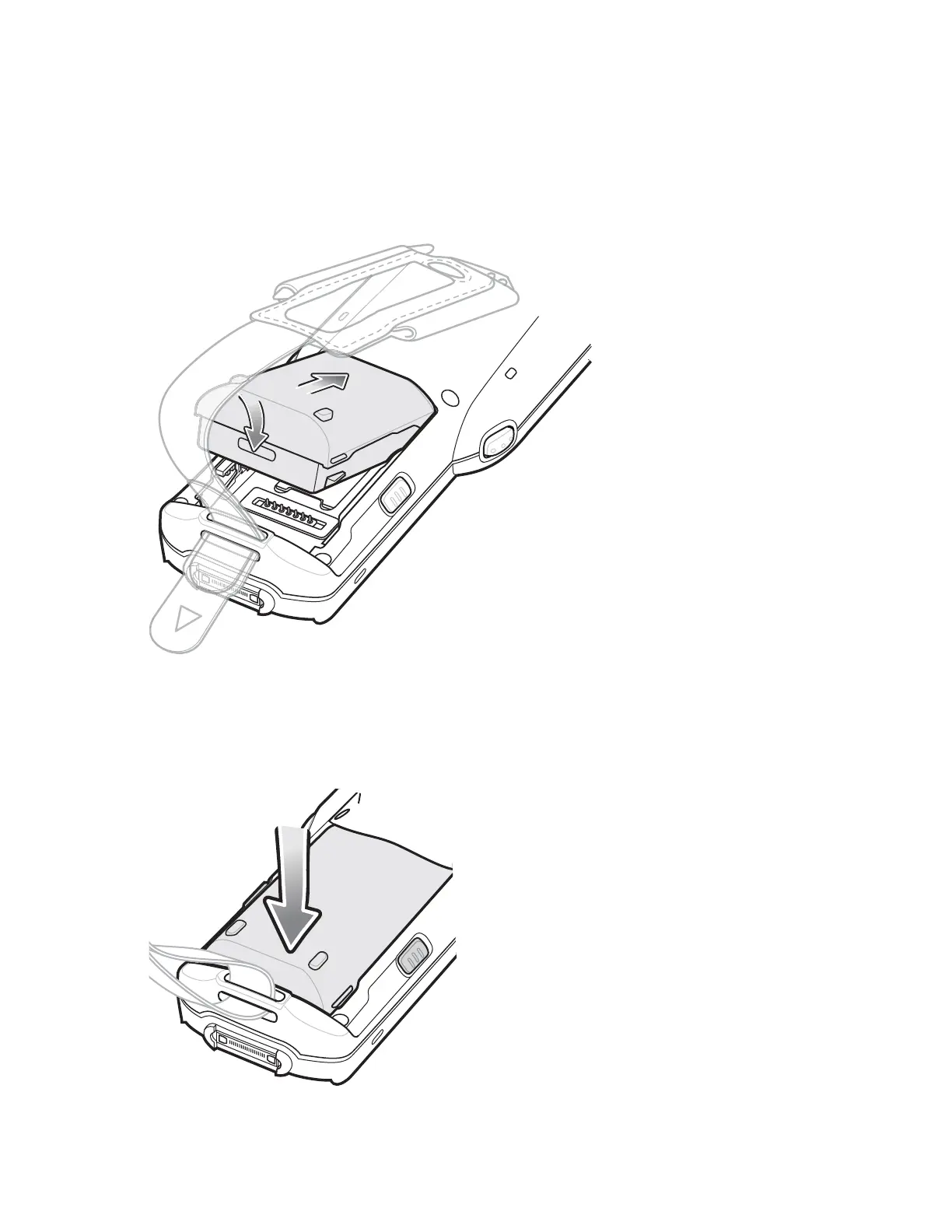

Figure 12: Inserting the Battery
3 Rotate the bottom of the bottom into the battery compartment.
4 Press battery down firmly. Ensure that both battery release buttons on the sides of the MC32N0 return to the home
position.
Figure 13: Press Battery Down
5 Tighten the handstrap.
6 Press the Power button to turn on the device.
22 | Getting Started
April 2015 | MN000887A01-B
