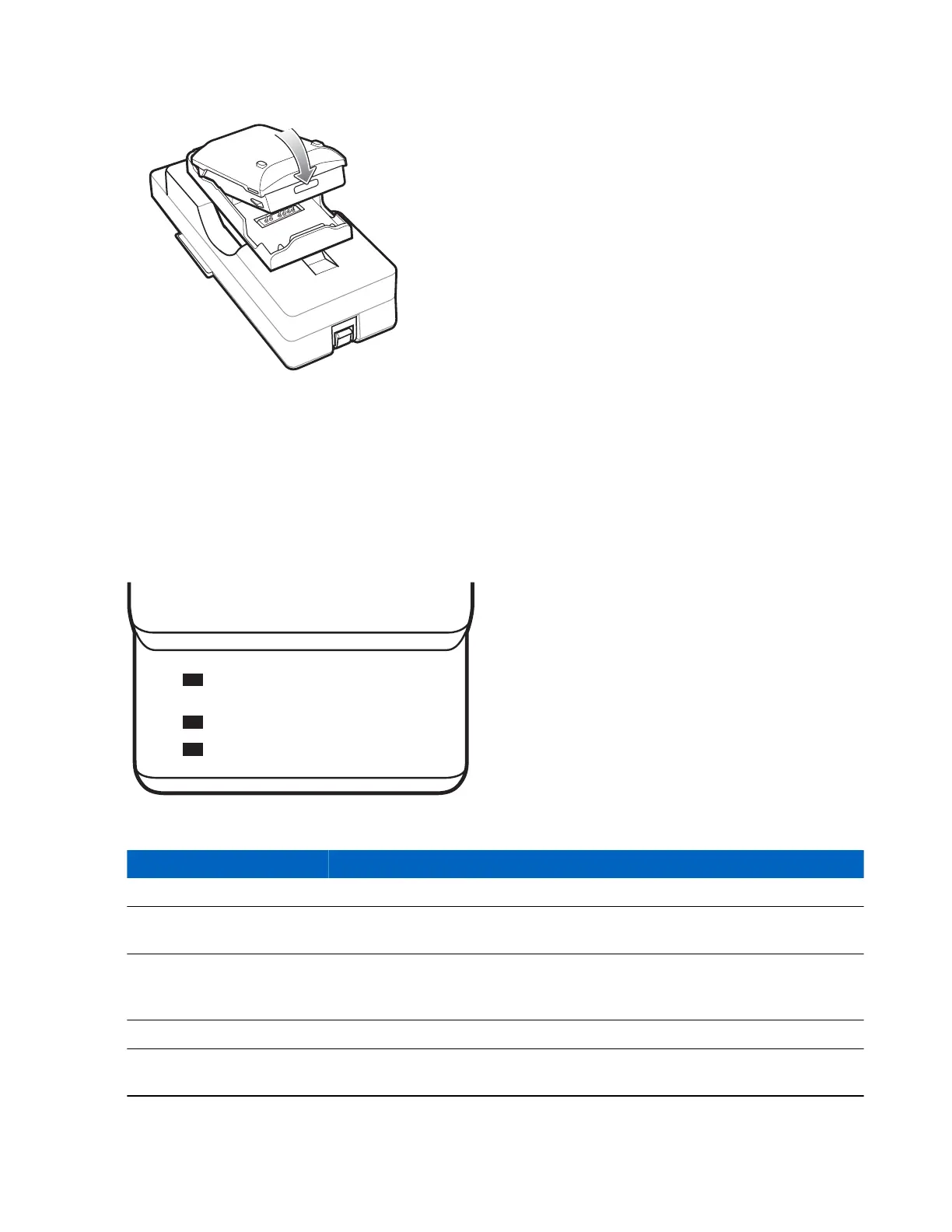

Figure 38: Universal Battery Charger Adapter
2 Press down on the battery to ensure it is seated properly.
UBC Adapter Battery Charging
Spare Battery Charging
The UBC Adapter charging LEDs indicate the battery charging status. The Standard Battery usually charges in less
than five hours and the Extended Life Battery usually charges in less than eight hours.
Figure 39: UBC Adapter LEDs
POWER
READY or STANDBY or FAULT
CHARGING
(Green) (Flashing Yellow) (Solid Yellow)
(Solid Yellow)
Table 7: UBC Adapter Charge LED Status Indications
LED Indication Description
POWER Green Power is connected to the UBC Adapter.
READY
or
Green Charging complete.
STAND-
BY or
Flashing-Yellow The battery was deeply discharged and is being trickle charged to bring the voltage
up to the operating level. After operating level voltage is achieved, the battery
charges normally.
FAULT Yellow Charging error, check placement of mobile computer/spare battery.
CHARG-
ING
Yellow Normal charge.
48 | Accessories
April 2015 | MN000887A01-B
