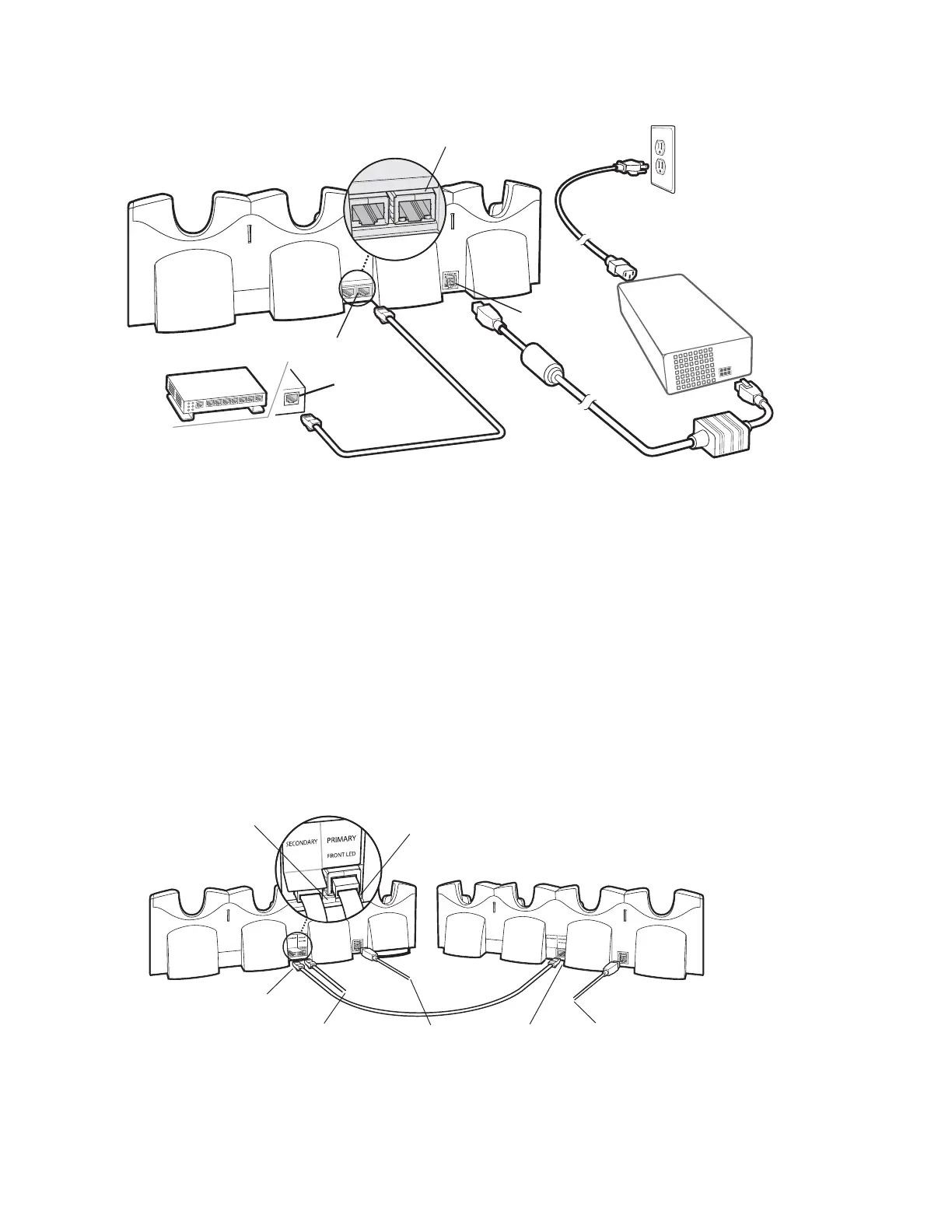

Figure 30: CRD3X01-4001ER Four Slot Ethernet Cradle Connection
Power Port
Ethernet Ports
Primary Port
Ethernet Switch,
Router, or Hub
Connection
Daisychaining Ethernet Cradles
Daisychain up to four Four Slot Ethernet cradles to connect several cradles to an Ethernet network. Use either a
straight or crossover cable. Daisy-chaining should not be attempted when the main Ethernet connection to the first
cradle is 10 Mbps as throughput issues will almost certainly result.
To daisychain more than Four Slot Ethernet cradles:
Procedure:
1 Connect power to each Four Slot Ethernet cradle.
2 Connect an Ethernet cable to the Primary Port of the first cradle and to the Ethernet switch.
3 On the first Four Slot Ethernet cradle, lift or remove the label flap and connect a second Ethernet cable to the
Secondary Port.
4 Connect the other end of the Ethernet cable to the Primary Port of the second Four Slot Ethernet cradle.
5 Connect additional cradles as described in step 3 and step 4.
Figure 31: Daisychaining Four Slot Ethernet Cradles
Secondary Port
Primary Port
To Switch To Power Supply To Power Supply
Right LED
Left LED
Ethernet Settings on Android Devices
The following settings can be configured when using Ethernet communication:
Accessories | 41
MN000887A01-B | April 2015
