Motorola MC32N0 User Manual

Wall Mount Bracket
Use the optional Wall Mount Bracket to mount a four slot cradle to a wall. To attach the Wall Mount Bracket:
Procedure:
1 Use the Wall Mount Bracket as a template and mark the locations of the four mounting screws.
Note: Use fasteners appropriate for the type of wall and the Wall Mount Bracket mounting slots. The
Wall Mount Bracket mounting slots are designed for a fastener with a #8 pan head. Fasteners must be
able to hold a minimum of 4.9 Kg (10.8 lbs).
2 Mount the fasteners to the wall. The screw heads should protrude about a half of an inch from the wall.
3 Slip the Wall Mount Bracket over the screw heads and slide the bracket down over the screw heads.
4 Tighten the screws to secure the bracket to the wall.

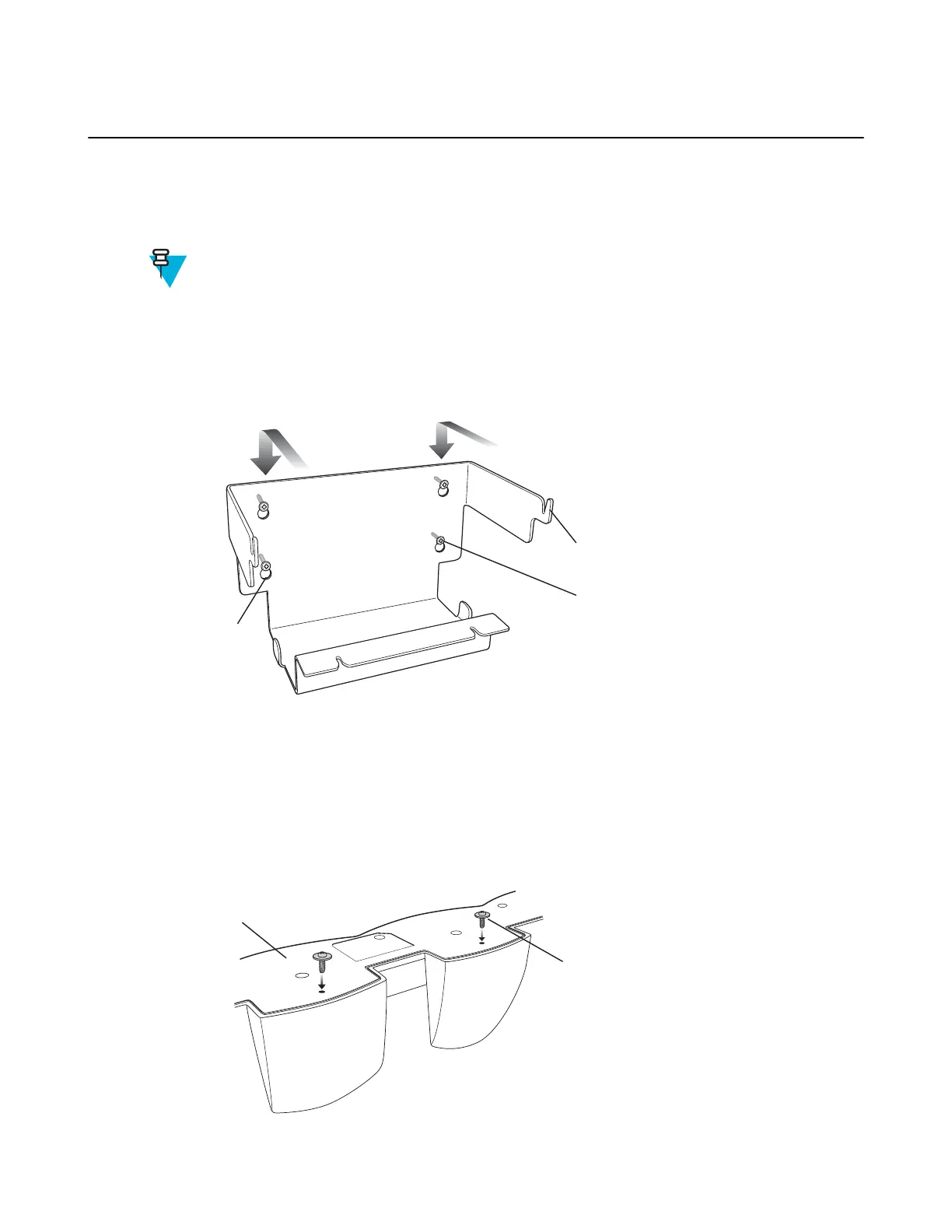

Figure 40: Wall Mount Bracket
Mounting Screw (4)
Mounting Tab (2)
Mounting Slot
Mounting a Four Slot Cradle
To mount a four slot cradle:
Procedure:
1 Screw the supplied screws into the bottom of the four slot cradle. The screw heads should protrude about a quarter
of an inch from the cradle.
Figure 41: Cradle Mounting Screws
Mounting Screw (2)
Four Slot
Cradle Bottom
Accessories | 49
MN000887A01-B | April 2015
