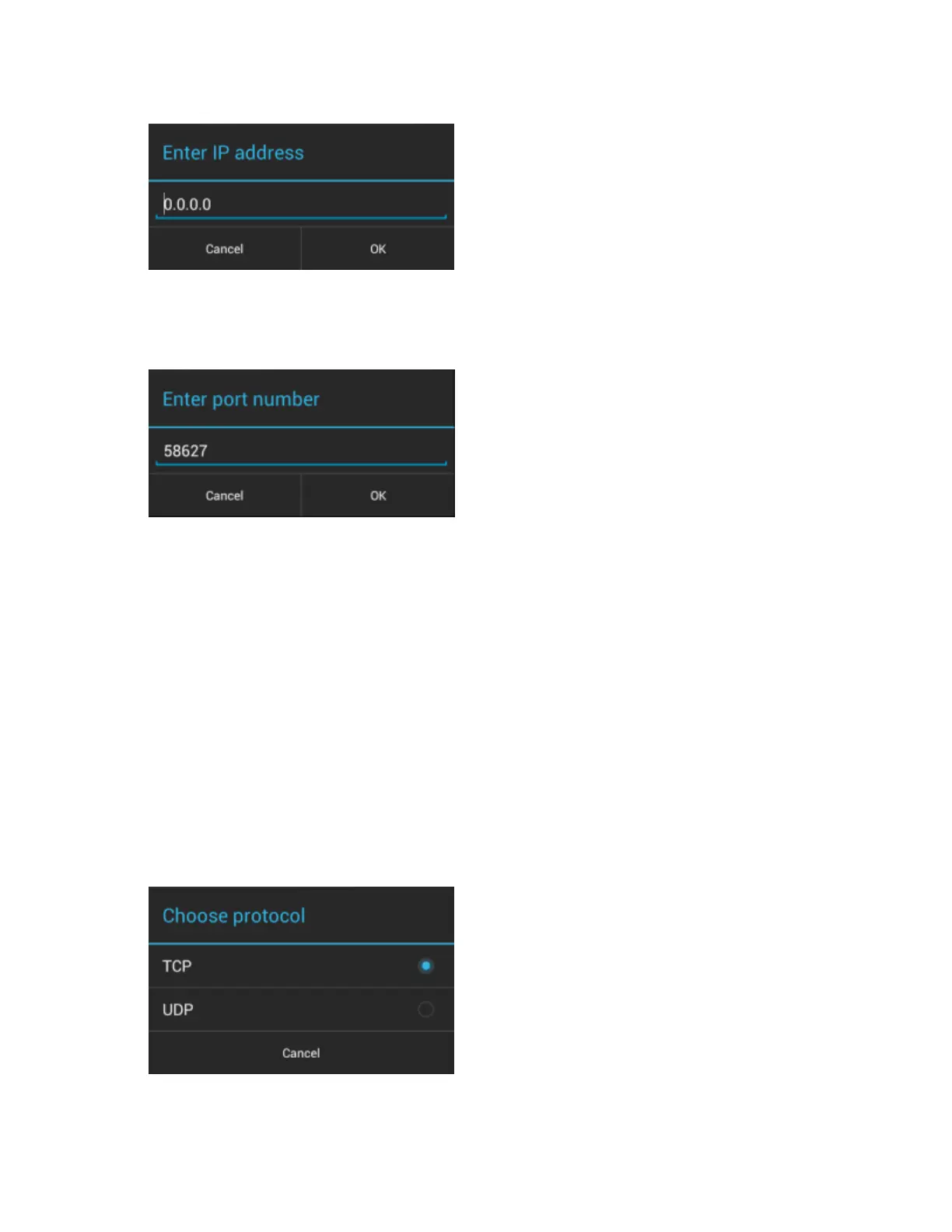

Figure 63: IP Address Entry
7 Touch Port.
8 In the Enter port number dialog box, enter same port number selected for IPWedge computer application.
Figure 64: Port Number Entry
9 Configure Advanced data formatting and Basic data formatting Plug-in if any required modification to be done
to captured data before sending to remote computer.
Using IP Output without IPWedge
IP Output Plug-in can be used to send captured data from DataWedge to a remote device or host computer without
using IPWedge. At the data receiving end, the host computer or mobile device should have an application, that listens
to TCP or UDP data coming from a configured port and IP address in the IP Output plug-in. To enable IP Output to
send captured data to a remote computer:
Procedure:
1 In IP Output, touch Enabled.
A check appears in the checkbox.
2 Ensure Remote Wedge option is disabled.
3 Touch Protocol.
4 In the Choose protocol dialog box, touch the same protocol selected in the client application. (TCP is the default).
Figure 65: Protocol Selection
5 Touch IP Address.
6 In the Enter IP address dialog box, enter the IP address of host computer to send data to.
74 | DataWedge Configuration
April 2015 | MN000887A01-B
