2 - 8 MC65 Integrator Guide

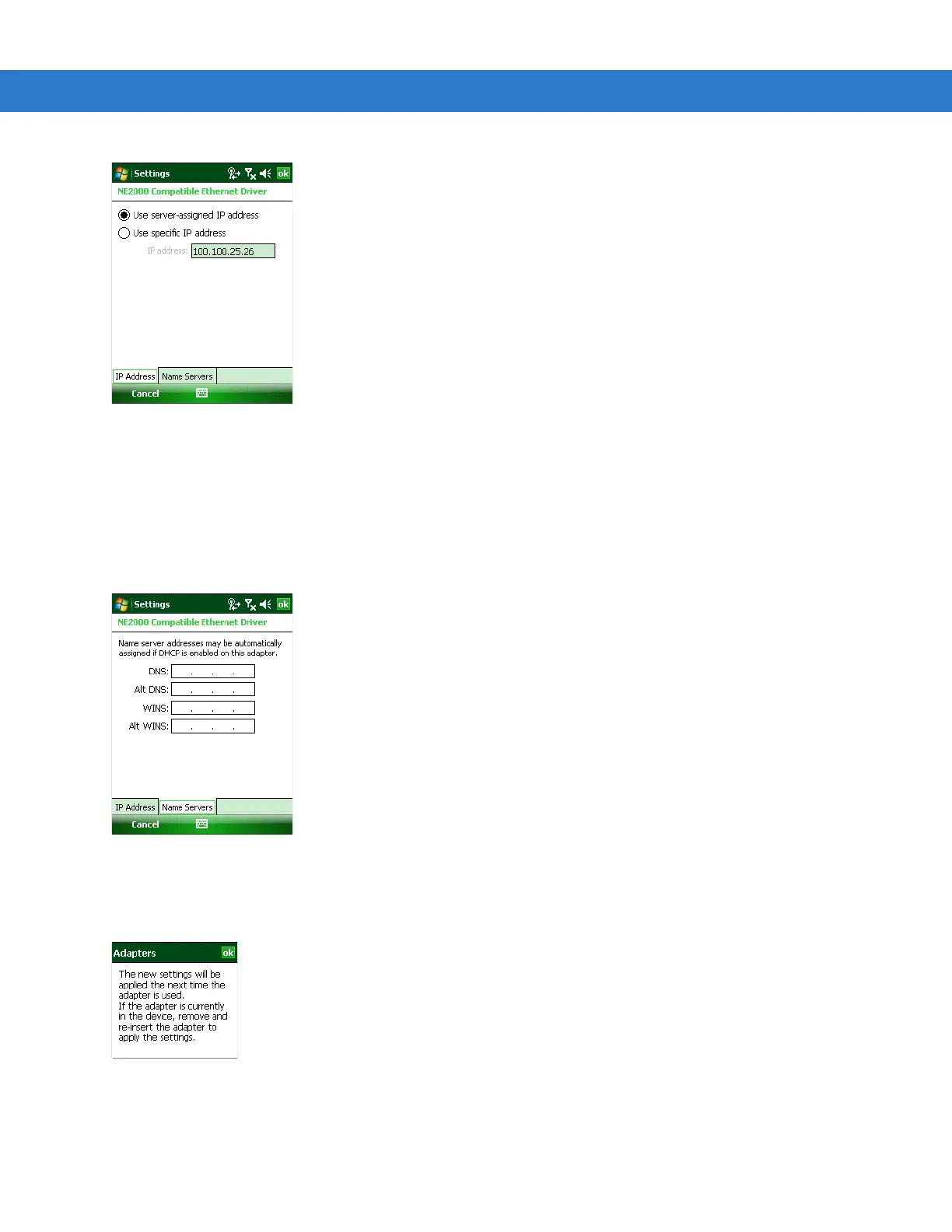

Figure 2-7
IP Address Tab
4. In the IP address window, select the appropriate radio button:
•
Use server-assigned IP address
or
•
Use specific IP address. Enter the IP address, Subnet mask, and Default gateway, as needed.
5. Tap the Name Servers tab.
Figure 2-8
Name Servers Tab
6. Enter the appropriate DNS, Alt DNS, WINS, and Alt WINS server addresses.
7. Tap ok.
Figure 2-9
Adapters Dialog Box
8. Tap ok to confirm the setup.
9. Tap ok to exit.
