Accessories 2 - 21

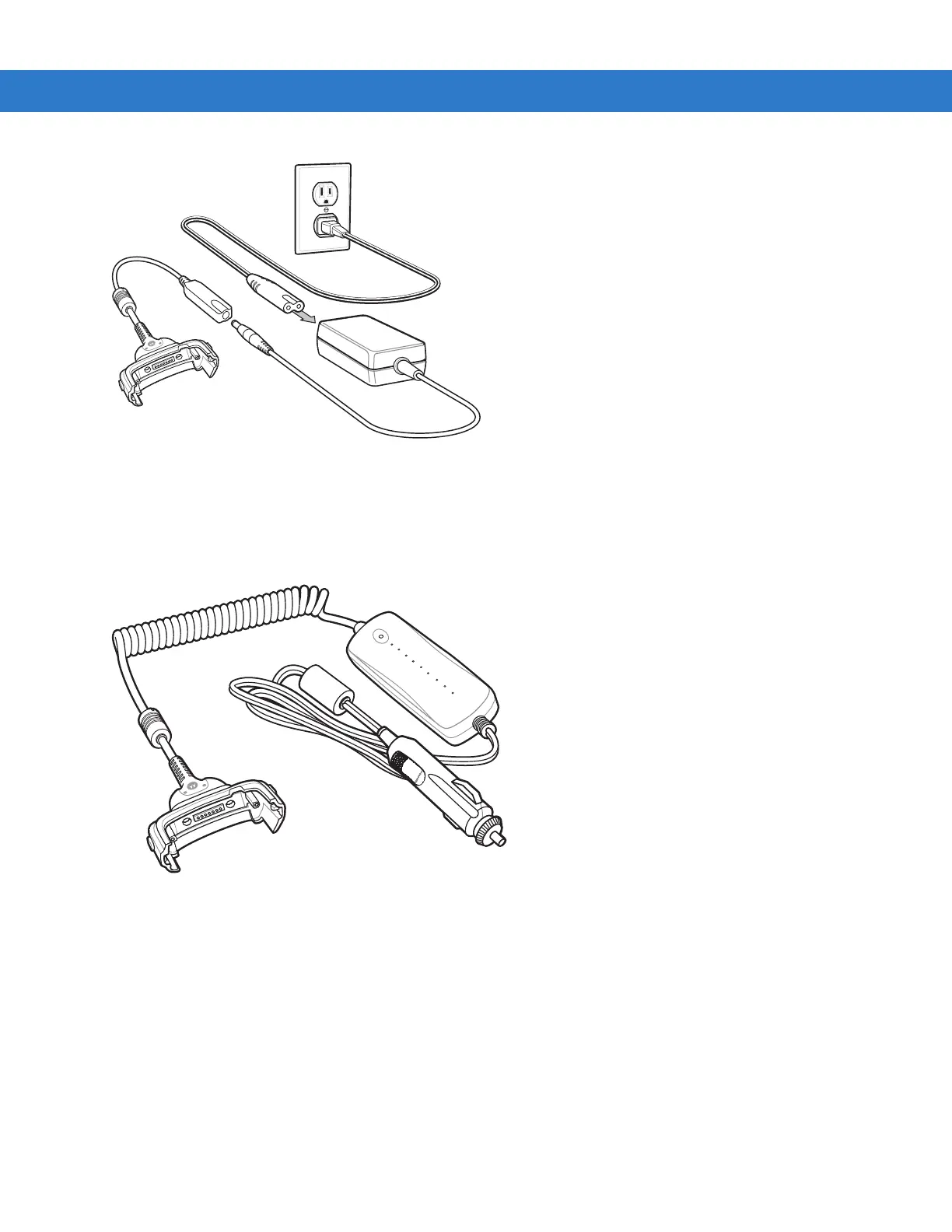

Figure 2-21 Charge Only Cable
Auto Charge Cable
The Auto Charge cable plugs into a vehicle cigarette lighter and provide the MC65 with operating and charging
power.
Figure 2-22 Auto Charge Cable
Connecting to the MC65
1. If required, connect the cable power input connector to the Motorola approved power source.
2. Slide the bottom of the MC65 into the connector cup end of the cable until the MC65 is firmly seated in the cup.
3. Slide the two locking tabs up until they both lock into position.
