Motorola MC65 - Flat Surface Installation

2 - 26 MC65 Integrator Guide

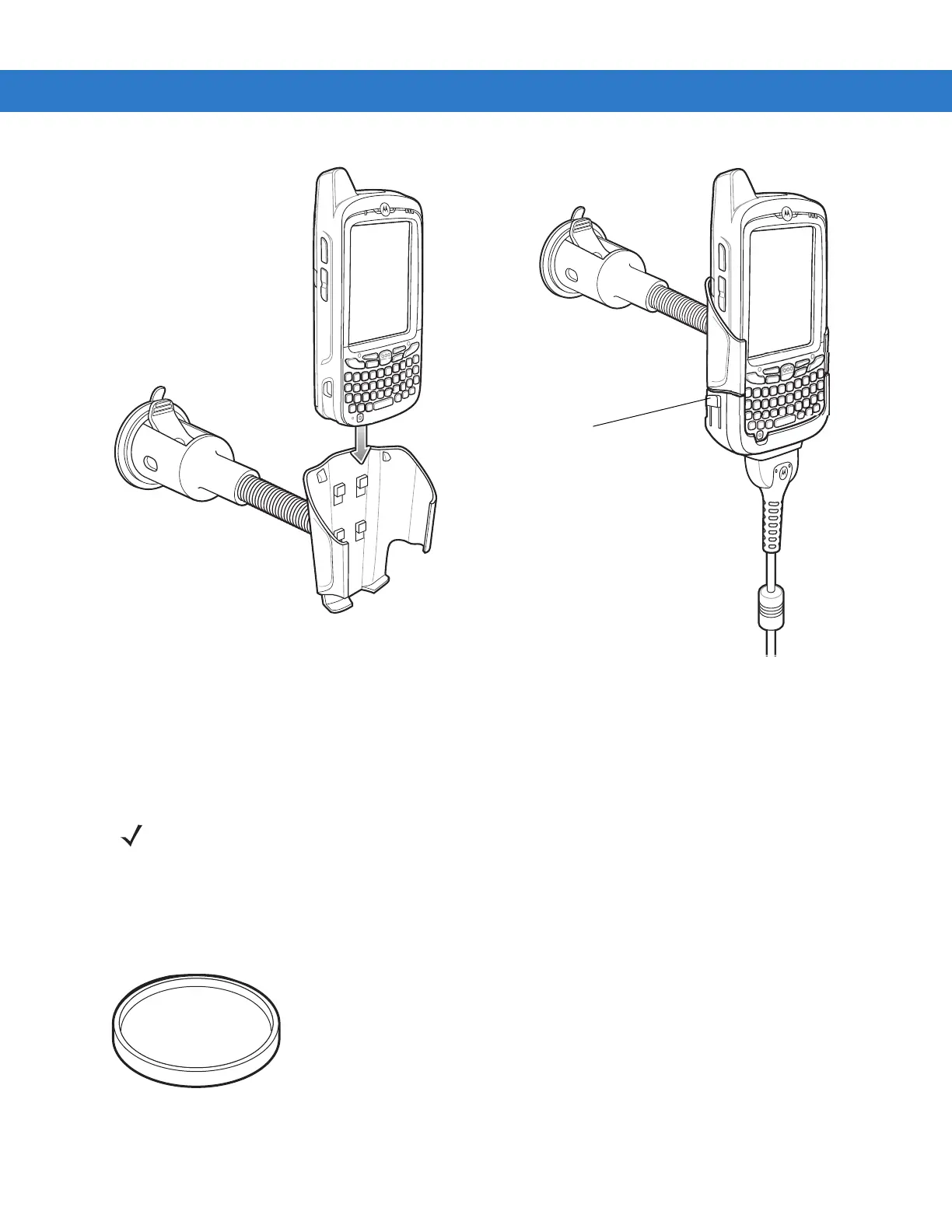

Figure 2-26 Insert MC65 into Vehicle Holder
5. Connect the auto charger cable to the MC65 and slide the two locking tabs up to secure the cable cup to the
MC65.
6. Connect the other end to the cigarette lighter socket.
The LED indicator on the right side of the touch screen lights up orange during charging.
Flat Surface Installation
1. Remove the plastic sheet on the bottom of the mounting disc.
2. Place the disc, sticky side down, on a clean flat surface.
Figure 2-27 Mounting Disc
3. Fix the suction cup mount to the disc with the suction lever facing up.
Locking Tab
NOTE Prior to removing the MC65 from the vehicle holder, disconnect the auto-charge cable from the MC65.
