Motorola MC65 Guide

A - 6 MC65 Integrator Guide
MC65 External Connector Pin-Outs

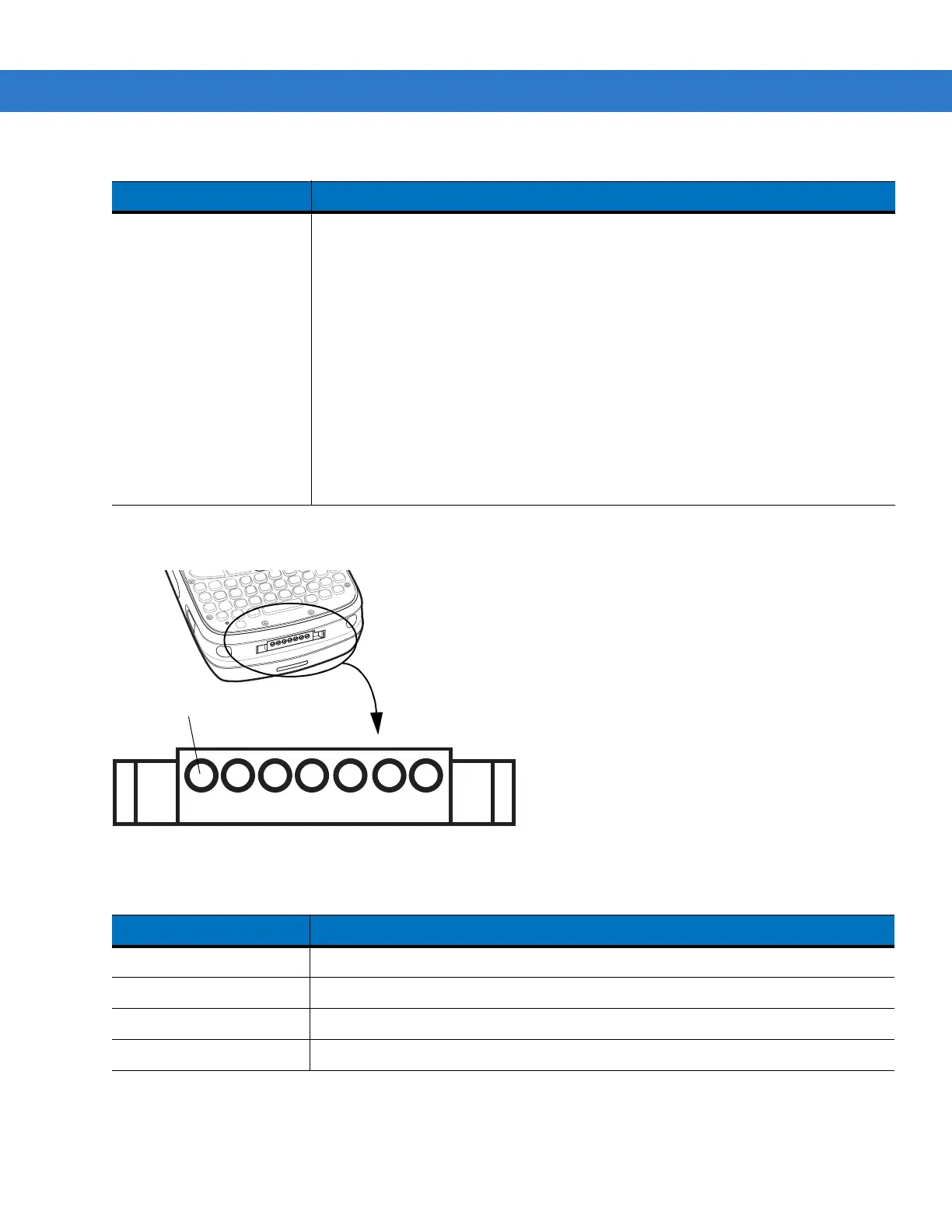

Figure A-1 External Connector
Camera Decode Capability Code 39 Code 128 Code 93
Codabar Code 11 Interleaved 2 of 5
Discrete 2 of 5 MSI EAN-8
EAN-13 UPCA UPCE
UPC/EAN supplementals Coupon Code Trioptic 39
Webcode TLC39 Composite AB
Composite C Micro PDF-417 PDF-417
Macro PDF-417 (Macro) Micro PDF-417 QR Code
Data Matrix Maxi Code US Postnet
US Planet UK 4-state Australian 4-state
Canadian 4-state Japanese 4-state Dutch Kix
GS1 DataBar
GS1 DataBar Truncated GS1 DataBar Limited GS1 DataBar Stacked
GS1 DataBar Expanded GS1 DataBar Expanded Stacked
GS1 DataBar Stacked Omni
Table A-2 Data Capture Options (Continued)
Item Description
Table A-3 External Connector Pin-Outs
Pin Description
1 External Trigger/Cradle Detect
2 USB_ID
3 5.4 VDC
4 USB_VCC
Pin 1
