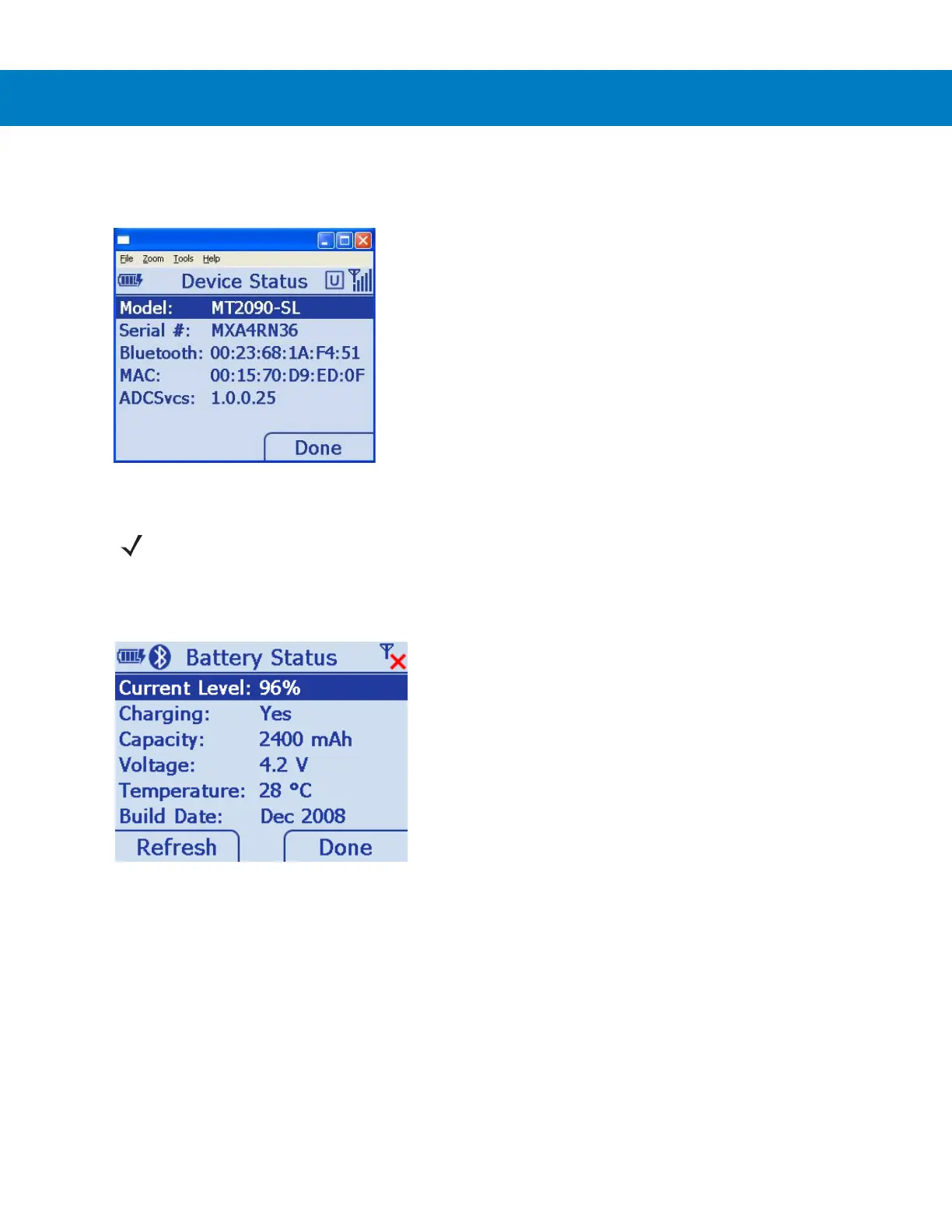

Operating the MT2070/MT2090 2 - 15

Device Status

This screen displays information about the device: model, serial number, Bluetooth, MAC address and ADCSvcs

version.

Figure 2-8

Device Status Screen

Battery Status

This screen displays the device’s battery information.

Figure 2-9

Battery Status Screen

NOTE MAC: field applies to the MT2090 only.
