6 - 46 Maintenance
Remote Mount Ethernet Control Head – Exploded View and Parts List

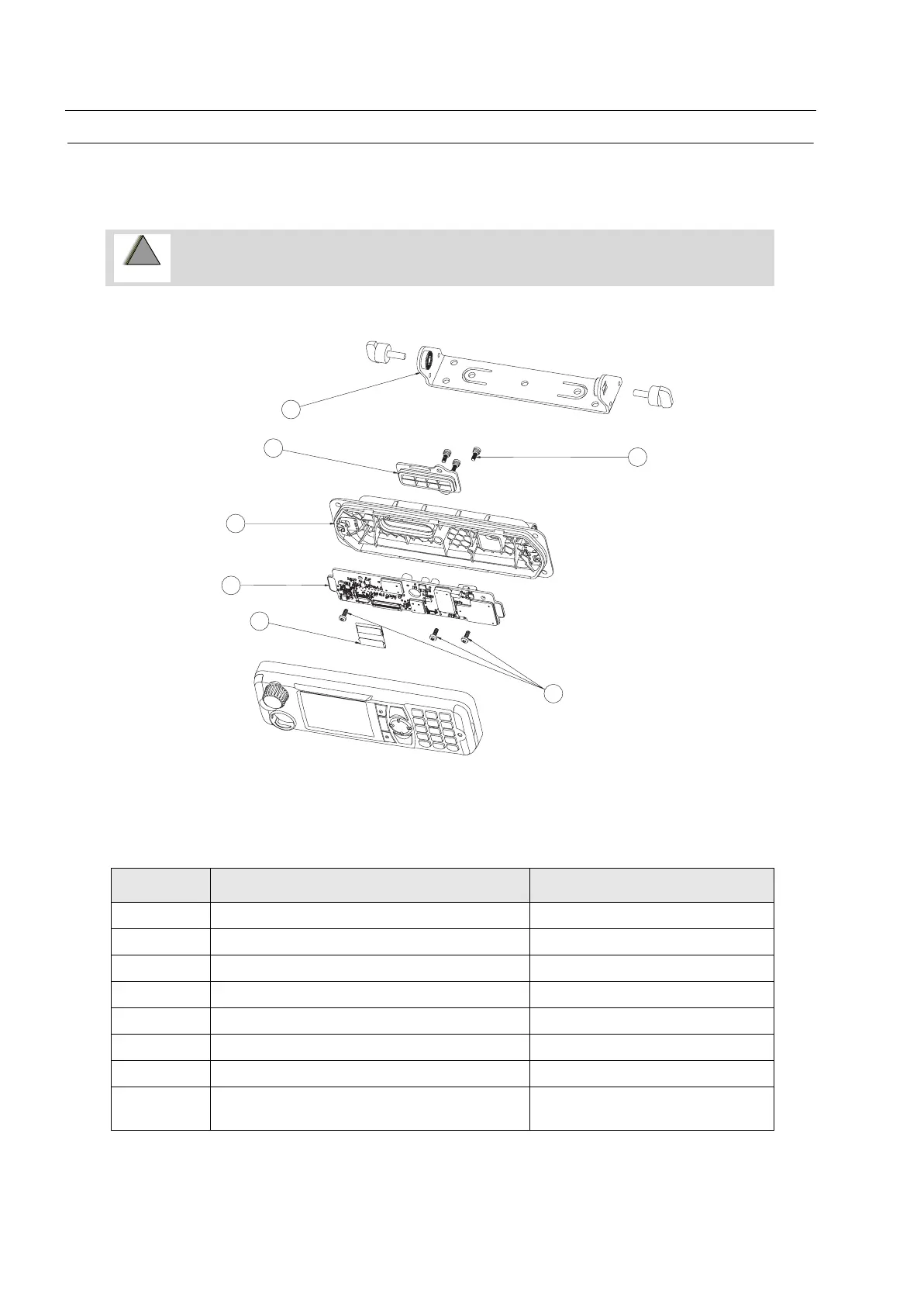

Figure 6-61 Remote Mount Ethernet Control Head – Exploded View
Table 6-14 Remote Mount Ethernet Control Head – Parts List
Item No. Description Part No.
1 Remote Ethernet FPC (Main to Remote) Motorola Use Only
2 Remote Ethernet PWA Kit Motorola Use Only
3 Remote Ethernet Back Housing Assembly Motorola Use Only
4 D Sub Cover Motorola Use Only
5 Trunnion Motorola Use Only
6 Middle Screw Motorola Use Only
7 Self Tapping Screw Motorola Use Only
Remote Mount Ethernet Control Head Refer to APPENDIX A –
Replacement Parts & Kits
WARNING: Ethernet Expansion Heads are only compatible with Ethernet Remote
Heads. Do not mix Ethernet control head with non-Ethernet control
heads.
!
