6 - 42 Maintenance
Telephone Style Control Head – Exploded View and Parts List

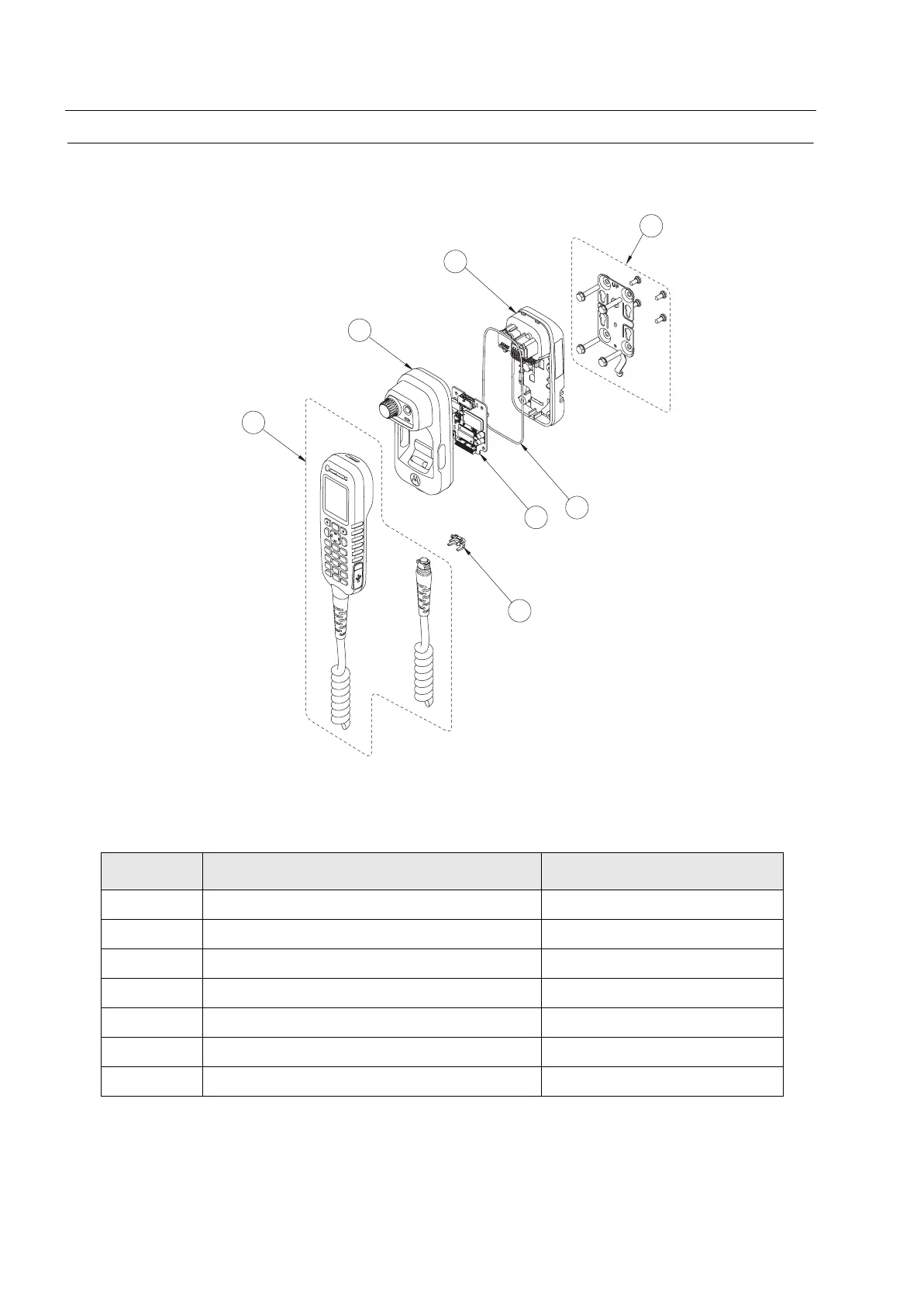

Figure 6-57 Telephone Style Control Head – Exploded View 1
Table 6-10 Telephone Style Control Head – Parts List 1
Item No Description Part No.
1 Kit, Handset, TSCH PMLN6198_
2 Assembly, Front Housing, Cradle, TSCH Motorola Use Only
3 Assembly, Main Board, Cradle, TSCH Motorola Use Only
4 Retainer, Spiral Cord Cable Motorola Use Only
5 Assembly, Back Housing, Cradle, TSCH Motorola Use Only
6 Kit, Slim Mounting Bracket Motorola Use Only
7 O-ring, Main, Cradle Motorola Use Only
ZWG0130201-O
2
1
7
3
4
5
6
