Motorola MTM5 00 Series User Manual

Maintenance 6 - 43

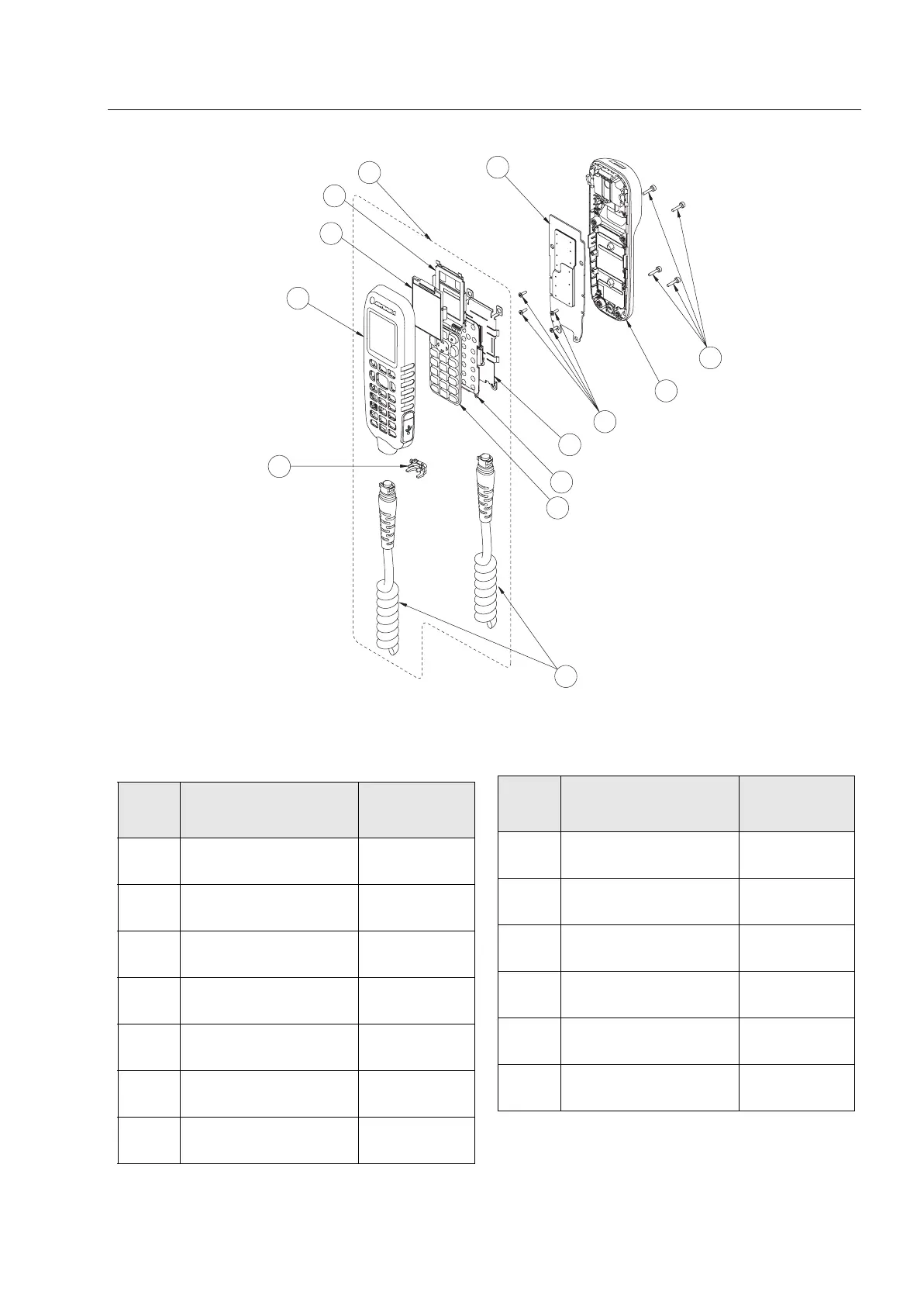

Figure 6-58 Telephone Style Control Head (Handset) – Exploded View 2
Table 6-11 Telephone Style Control Head (Handset) – Parts List 2
ZWG0130201-O
5
6
7
8
1
2
13
3
12
11
9
4
10
Item
No
Description Part No.
1 Assembly, Front
Housing, Handset, TSCH
Motorola Use
Only
2 Assembly, Main Board,
Handset, TSCH
Motorola Use
Only
3 Assembly, Back
Housing, Handset, TSCH
Motorola Use
Only
4 Cable Assembly, Spiral
Cord
0104047J66
5 Retainer, Spiral Cord
Cable
Motorola Use
Only
6 Sub-Assembly, Front
Housing, Handset, TSCH
Motorola Use
Only
7 LCD Module Motorola Use
Only
8 Retainer, Display with
Poron Pad
Motorola Use
Only
9 Keypad, Alphanumeric Motorola Use
Only
10 Flex Assembly, Keypad Motorola Use
Only
11 Retainer, Keypad Motorola Use
Only
12 Self Tapping Screw,
Handset PCB (4 required)
Motorola Use
Only
13 M2.5 Machined Screw
with O-ring (4 required)
Motorola Use
Only
Item
No
Description Part No.
