Motorola MTM5 00 Series User Manual

Maintenance 6 - 45
Remote Ethernet Expansion Head – Exploded View and Parts List

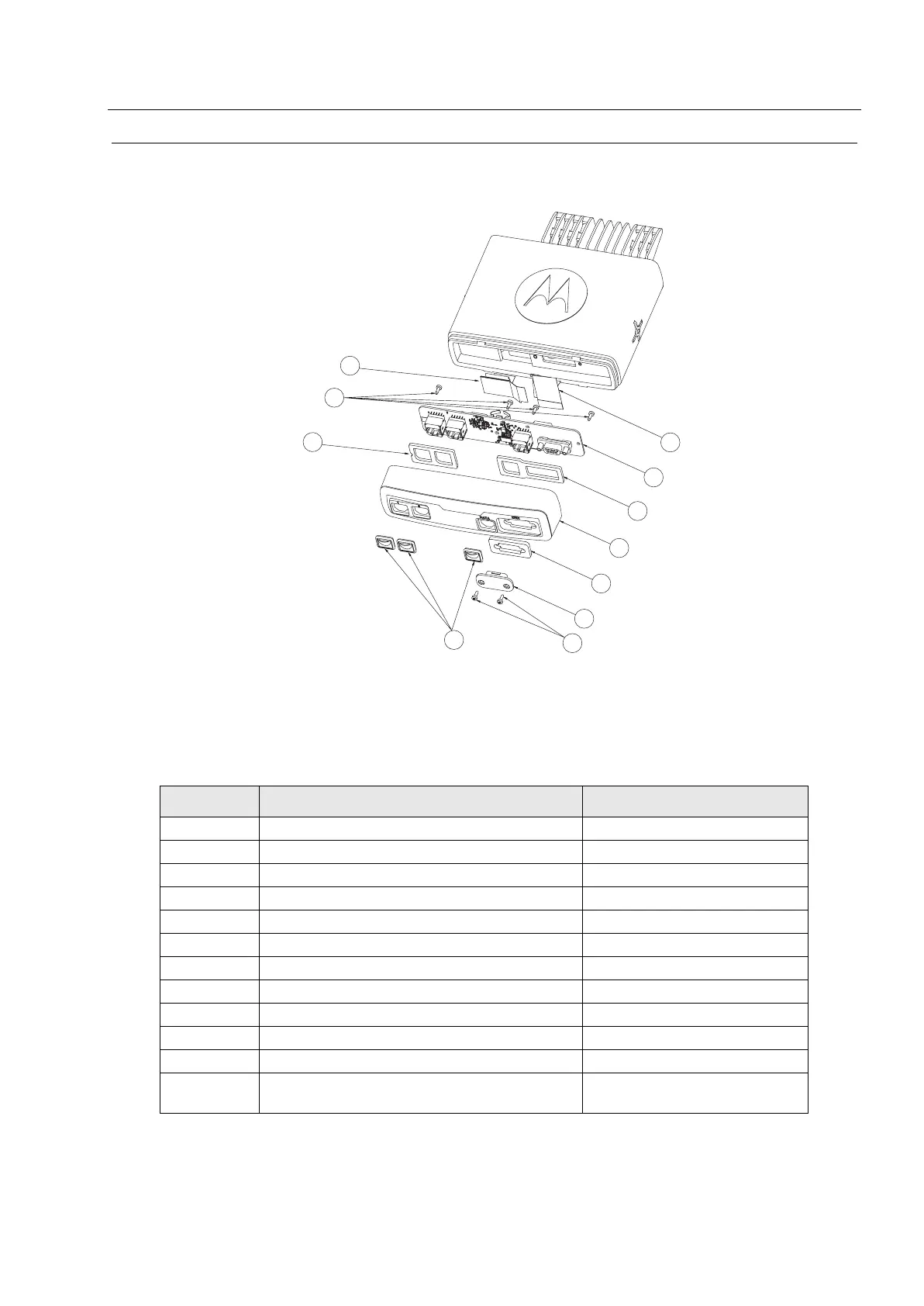

Figure 6-60 Remote Ethernet Expansion Head – Exploded View
Table 6-13 Remote Ethernet Expansion Head – Parts List
Item No Description Part No.
1 Ethernet Port Dust Cover Kit (set of 2) PMLN6344_
2 Screw, Protection Cap (2 required) 0305137Q02
3 Cover 9 Sub-D 3864326B01
4 Seal, Poron, 9 Sub-D, Outer 32012180001
5 Ethernet Expansion Head Housing Motorola Use Only
6 Seal, Poron, dual Ethernet Motorola Use Only
7 Seal, Poron, 9 Sub-D and Ethernet Motorola Use Only
8 Ethernet Expansion PCB Kit Motorola Use Only
9 Screw, Connector PCB (4 required) Motorola Use Only
10 FPC 40 pins Motorola Use Only
11 FPC 18 pins Motorola Use Only
– Remote Ethernet Expansion Head Refer to APPENDIX A –
Replacement Parts & Kits
11
10
7
8
5
9
6
4
3
2
1
