Data Expansion Head Enhanced – Exploded View and Parts List

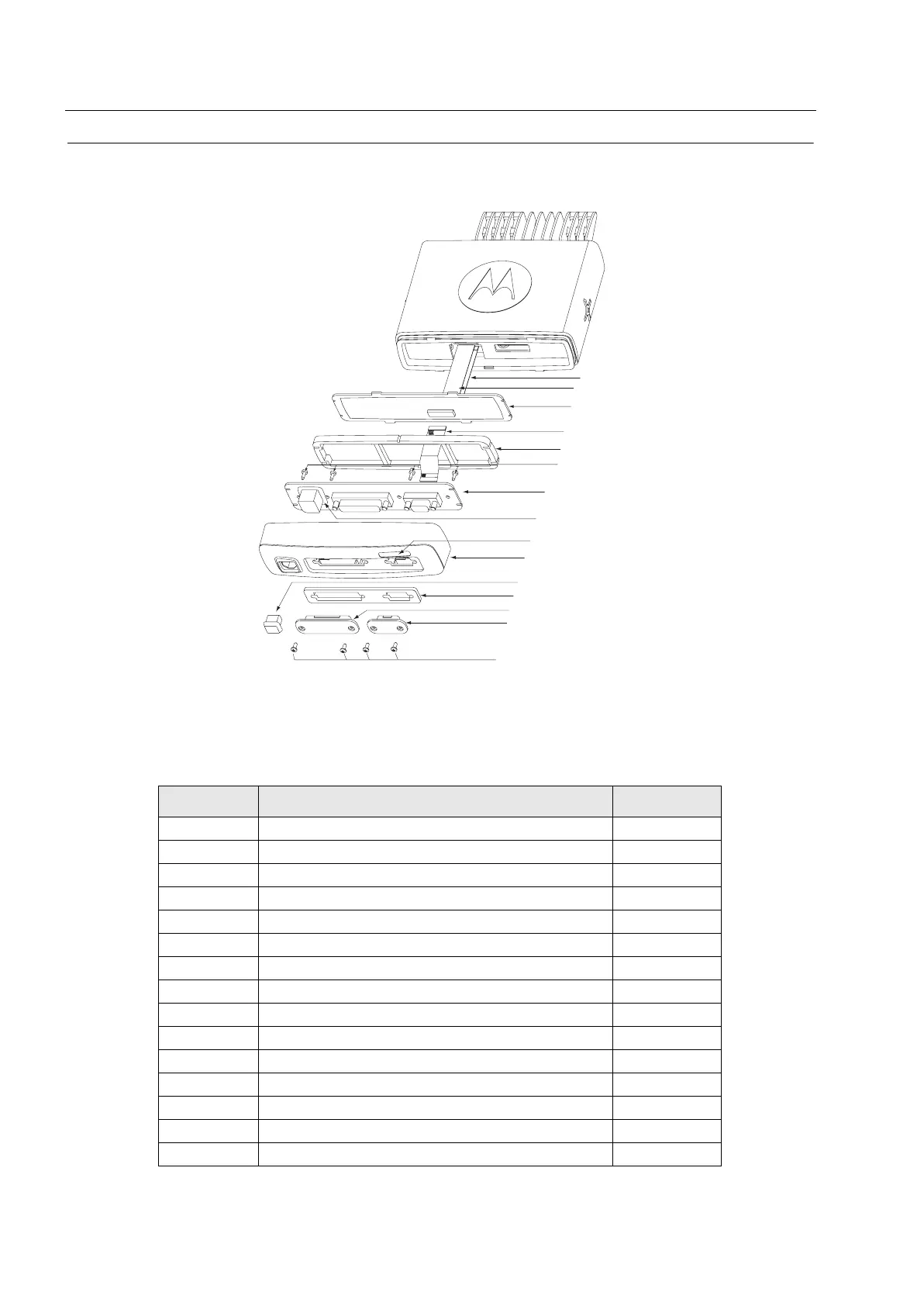

Figure 6-55 Data Expansion Head Enhanced – Exploded View
Table 6-8 Data Expansion Head Enhanced – Parts List
Item No Description Part No.
1 Expansion Head Housing 1564290B01
2 Cover 9 Sub-D 3864326B01
3 Cover 25 Sub-D 3864326B02
4 Protection Caps/Bung, Telco GLN7306_
5 Seal, Expansion Head (not available to customers) –
6 Screw, Protection Caps/Bung (4 required) 0305137Q02
7 Connector Board PMLN5087A
8 Screw, Connector PCB (4 required) 0385944A02
9 Flex 40-Pin 8415157H01
10 Expansion Board, not part of Housing Kit PMLN4939_
11 Seal for 10-Pin Telco on PCB 3264291B01
12 Flex 12-Pin 8486127B01
13 Flex 40-Pin 8466543A01
14 Silicone Pressure Pad 3264337B01
15 Label 5464344B07
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
