Maintenance 6 - 47
Remote Mount Configuration – Exploded View and Parts List

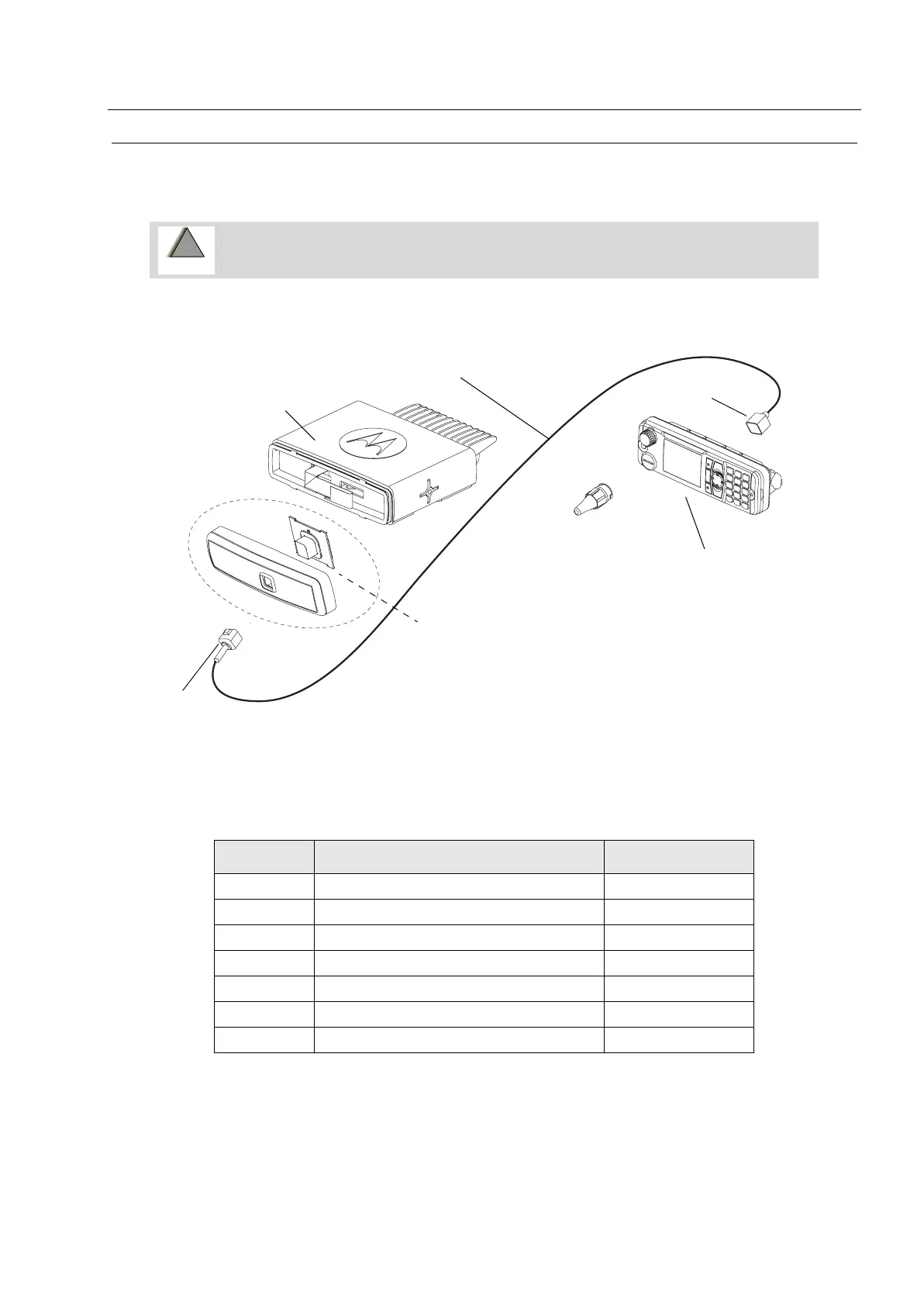

Figure 6-62 Remote Mount Configuration – Exploded View
Table 6-15 Associated Components for Remote Mount Configuration
Item No. Description Part No.
1 Remote Mount Cable, 3 m RKN4077_
2 Remote Mount Cable, 5 m RKN4078_
3 Remote Mount Cable, 7 m RKN4079_
4 Remote Mount Cable, 10 m PMKN4020_
5 Speaker Extension Cable GMKN4084_
6 Remote Head Enhanced PMLN4904_
7 Data Expansion Control Head PMLN4908_
WARNING: Ethernet Expansion Heads are only compatible with Ethernet Remote
Heads. Do not mix Ethernet control head with non-Ethernet control
heads.
!
W A R N I N G
!
Transceiver
10-pin
Connector
Remote Mount Cable
10-pin
Connector
Flex
Remote Head
or
Data Expansion
Head Enhanced
Enhanced
Remote Mount
Enhanced Control Head
