Maintenance 6 - 7
Terminal Disassembly and Reassembly – Detailed
The procedure to remove and replace a Enhanced Control Head, Top Cover or Transceiver Board is
similar for all models of terminal. A typical procedure is therefore shown followed by specific
disassembly procedures for Enhanced Control Heads, Remote Head Enhanced and Data
Expansion Head Enhanced on terminal models.
Enhanced Control Head Removal
1. Insert the dismantling tool (Motorola part number 6686119B01) in the chamfer between the
Enhanced Control Head and the terminal assembly.

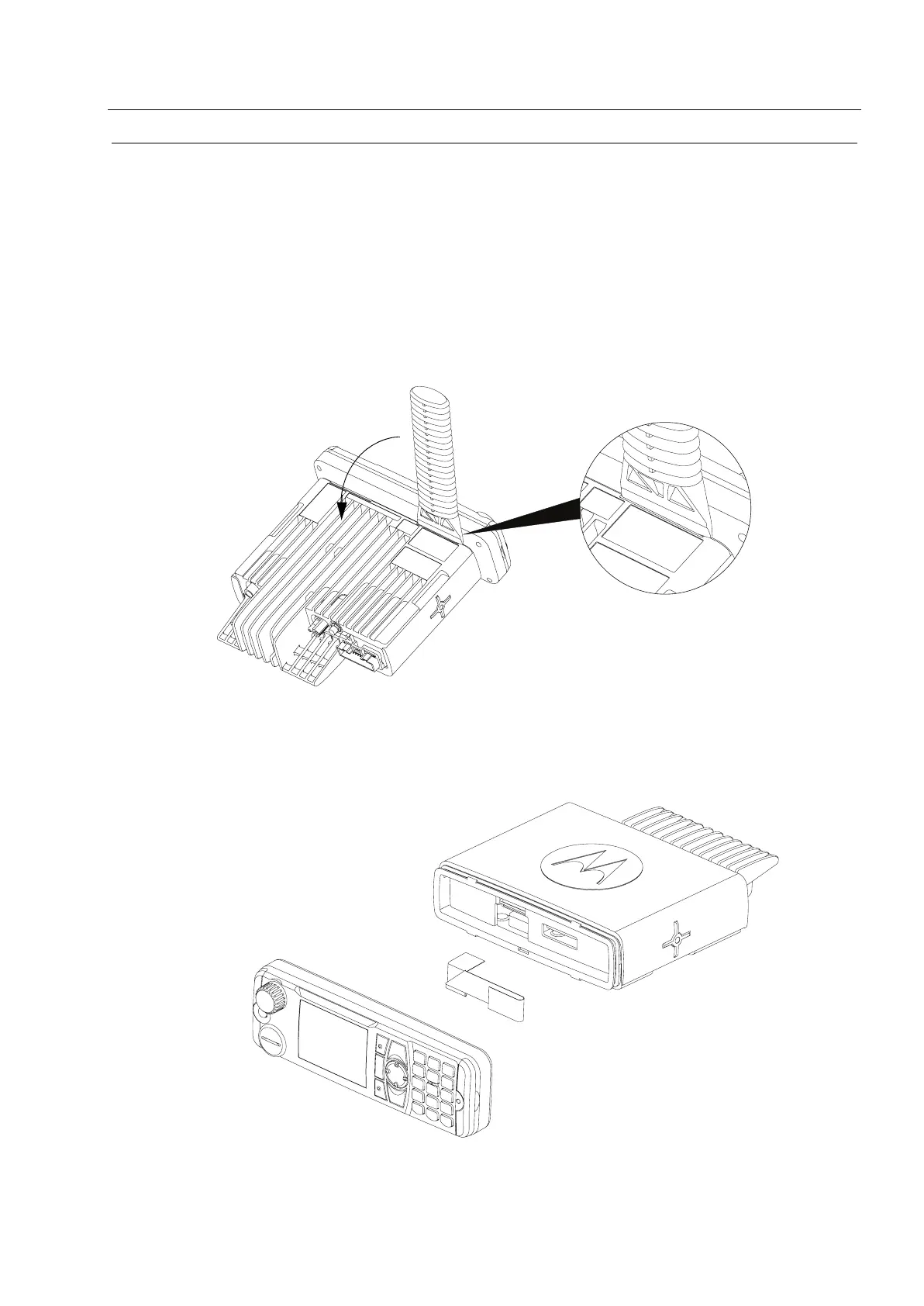

Figure 6-1 Typical Enhanced Control Head Removal
2. Push down the handle of the dismantling tool to pry open the control head until the chassis
tabs disengage from the Enhanced Control Head at both sides.
3. Remove the Enhanced Control Head and flexible connection from the terminal assembly.
Figure 6-2 Flexible Connection Removal
