6 - 22 Maintenance
Motorcycle Mount Enhanced Control Head – Reassembly
1. Fit the rubber keypad onto the Motorcycle Mount Enhanced Control Head front housing and
ensure that the keypad is correctly aligned and pressed onto the groove of the front housing.
2. Assemble the board to the Motorcycle Mount Enhanced Control Head front housing.
3. Assemble the encoder switch flex to the socket on the board.
4. Screw the two 8mm self tapping screws and one 14mm self tapping screw.
5. Assemble the remote PCB into the motorcycle back housing by screwing the three screws.
6. Connect the flex from the remote board on the back housing to the connector on the PCB
board of the Motorcycle Mount Enhanced Control Head front housing.
7. Snap the back housing into the Motorcycle Mount Enhanced Control Head front housing.
8. Screw the middle screw to the back housing.
Remote Ethernet Expansion Head – Disassembly
To Disassemble the Remote Ethernet Expansion Head from the Terminal:
1. Remove the Remote Ethernet Expansion Head (PMLN7009_) from the terminal by inserting
the dismantling tool (Motorola part number 6686119B01) in the chamfer between the Remote
Ethernet Expansion Head and the terminal assembly.
2. Use the dismantling tool to push and pry until the chassis tabs disengage from the Remote
Ethernet Expansion Head on both sides.
3. Remove the two flexes from the terminal to disassemble the Remote Ethernet Expansion
Head.

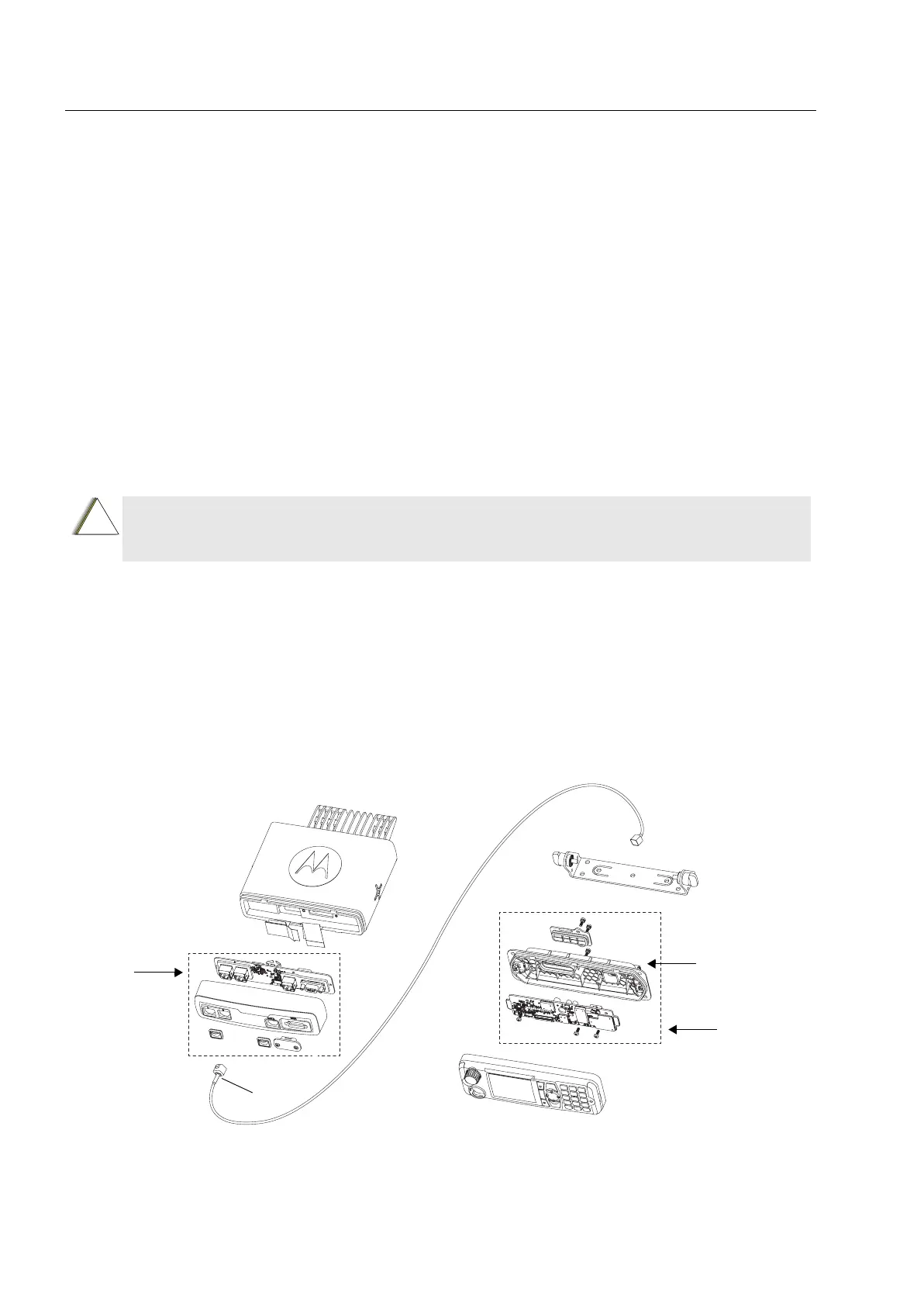

Figure 6-22 Remote Mount Ethernet Control Head with Remote Ethernet Expansion Head
CAUTION: The terminal must be disconnected from the power supply before commencing
any disassembly. The Installation Manual should be referred to for more detailed information
on warnings and safety.
!
Remote Ethernet
Remote Ethernet
Remote Ethernet
10-pin
Connector
Back Housing
Back Head
Expansion Head
To Next Page
