Maintenance 6 - 29
Telephone Style Control Head – Reassembly
1. To assemble the Spiral Cord Cable assembly, slot in the two wire to board connectors into the
Handset front housing.

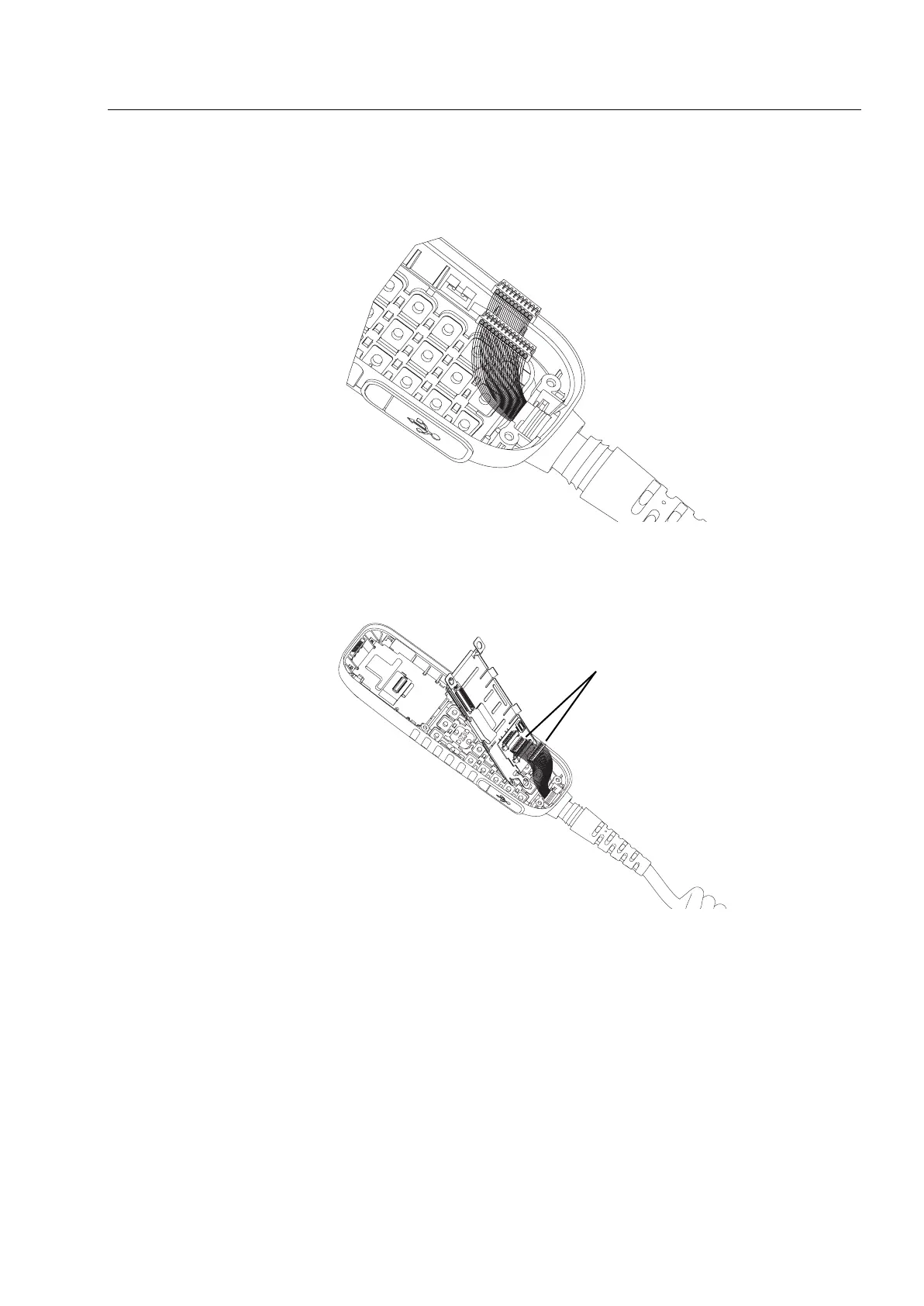

Figure 6-37 Spiral Cord Cable Removal 2
2. Assemble the wire to board connectors to the keypad flex as shown in Figure 6-38.
Figure 6-38 Wire to Board Connectors
3. Tongue in the two catches and snap the keypad retainer into the Handset front housing. Make
sure the keypad flex is aligned to the front housing guiding pin as shown in Figure 6-39.
4. Push in the spiral cord strain relief into the front housing and pull back the spiral cord at the
same time.
ZWG0130215-O
ZWG0130215-O
Connect both wire to board connectors
to their respective sockets
To Next Page
