6 - 30 Maintenance
Figure 6-39 Keypad Retainer Assembly

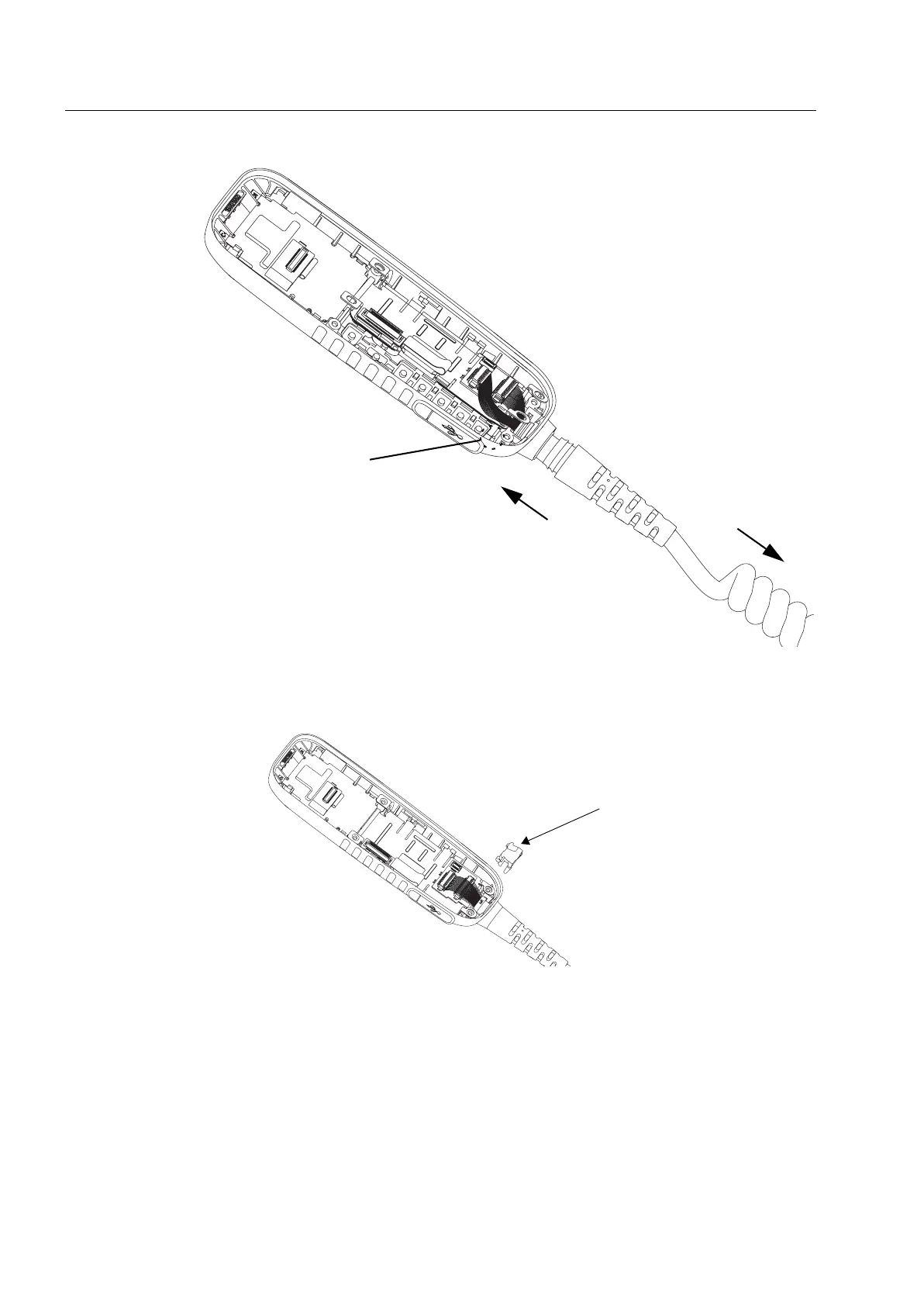

5. Assemble the spiral cord cable retainer as shown below.
Figure 6-40 Spiral Cord Cable Retainer Assembly
6. Assemble the micro-USB module into the Handset front housing and fasten the two screws
using a T6 TORX™ screw bit with 1.5+/-0.1 lb-in torque.
ZWG0130215-O
Push the spiral
cord strain relief
inwards towards
front housing
Push the spiral
cord cable away
from front housing
Ensure the keypad flex
is align to the guiding pin
on the front housing
ZWG0130215-O
Spiral cord retainer
To Next Page
