6 - 18 Maintenance
5. Remove the board from the Remote Mount Enhanced Control Head front housing by
unscrewing the screws using T10 TORX
TM
and disassemble the encoder switch flex from the
socket on the board.
6. Remove the board from the Remote Mount Enhanced Control head front housing by
stretching the Remote Mount Enhanced Control Head front housing and pulling up the board.
7. Remove the keypad by gently pressing the keypad out from the Remote Mount Enhanced
Control Head front housing.
8. Unscrew three screws using T10 TORX
TM
to extract remote PCB from the remote back
housing.

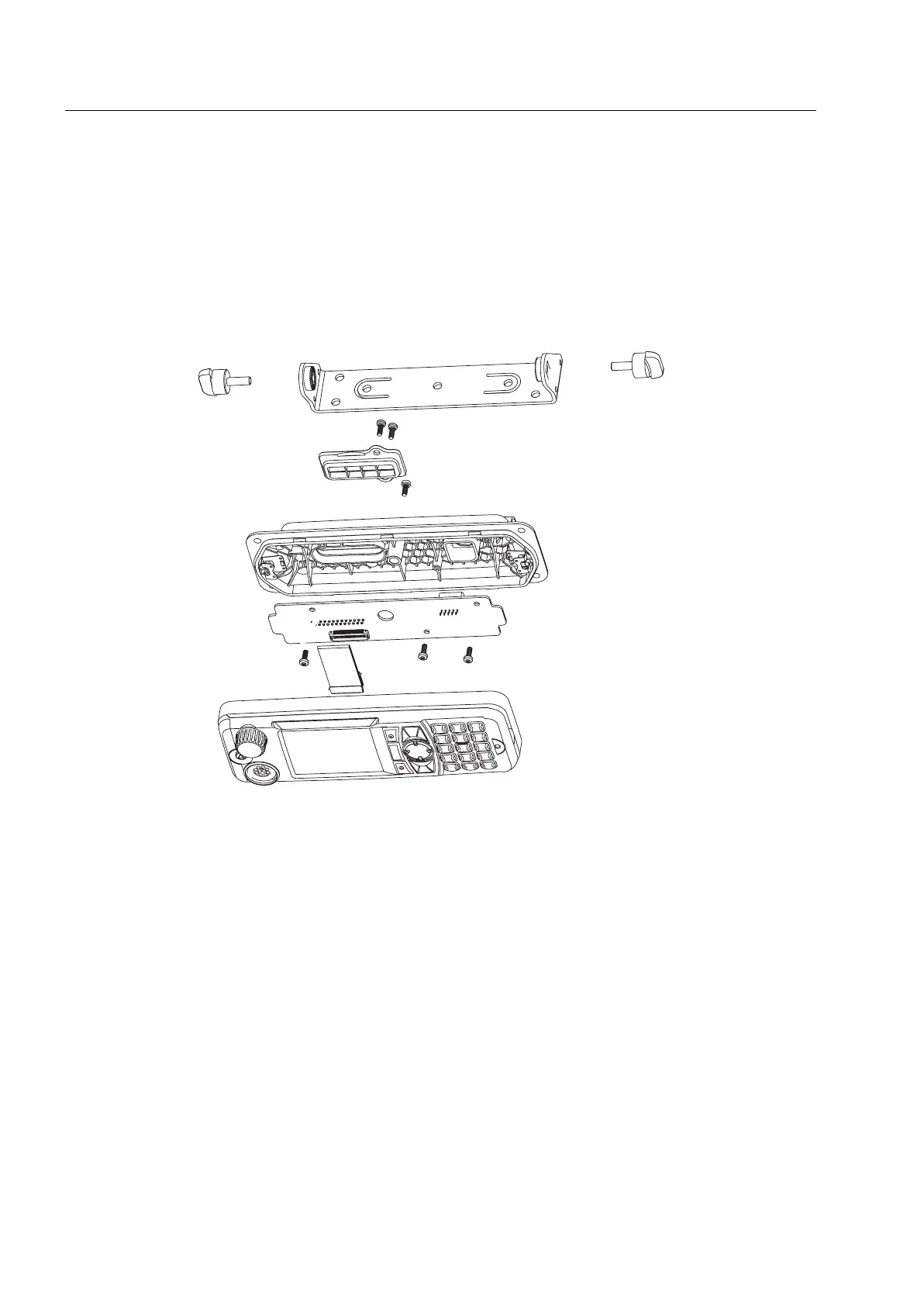

Figure 6-19 Remote Mount Enhanced Control Head
Remote Mount Enhanced Control Head – Reassembly
1. Fit the rubber keypad onto the Remote Mount Enhanced Control Head front housing and
ensure that the keypad is correctly aligned and pressed onto the groove of the front housing.
2. Assemble the board to the Remote Mount Enhanced Control Head front housing.
3. Assemble the encoder switch flex to the socket on the board.
4. Screw the two 8mm self tapping screws and one 14mm self tapping screw.
5. Assemble the remote PCB into the remote back housing by screwing the three screws.
6. Connect the flex from the remote board on the back housing to the connector on the PCB
board of the Remote Mount Enhanced Control Head front housing.
7. Snap the back housing into the Remote Mount Enhanced Control Head front housing.
8. Screw the middle screw to the back housing.
