6 - 24 Maintenance
Telephone Style Control Head – Disassembly
1. Unlatch the Handset from the Cradle as shown in Figure 6-23.

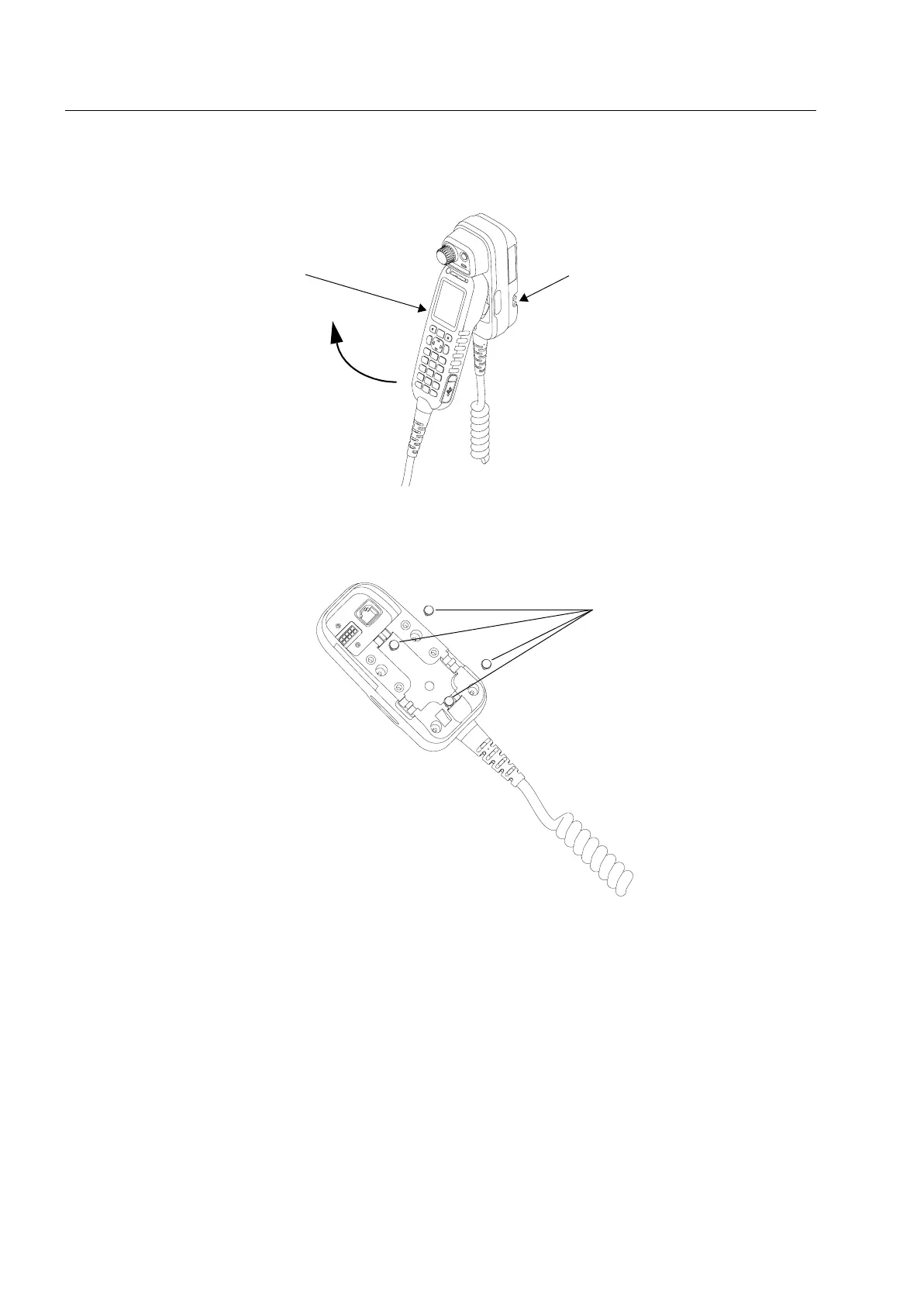

Figure 6-23 Handset Removal
2. Remove the four screws from the back of the Cradle using a T10 TORX™ screw bit.
Figure 6-24 Cradle Back Housing Removal
3. Disassemble the Cradle back housing assembly from front housing assembly as shown in
Figure 6-25, on page 6-25.
4. Disassemble the Cradle top control flex BTB (board to board) connector, RJ50 flex BTB
connector and the wire harness wire to board connector from the Cradle main PCB.
ZWG0130214 O
Cradle
Handset
ZWG0130215-O
Remove these four screws
to disassemble the Cradle
back housing
