6 - 16 Maintenance

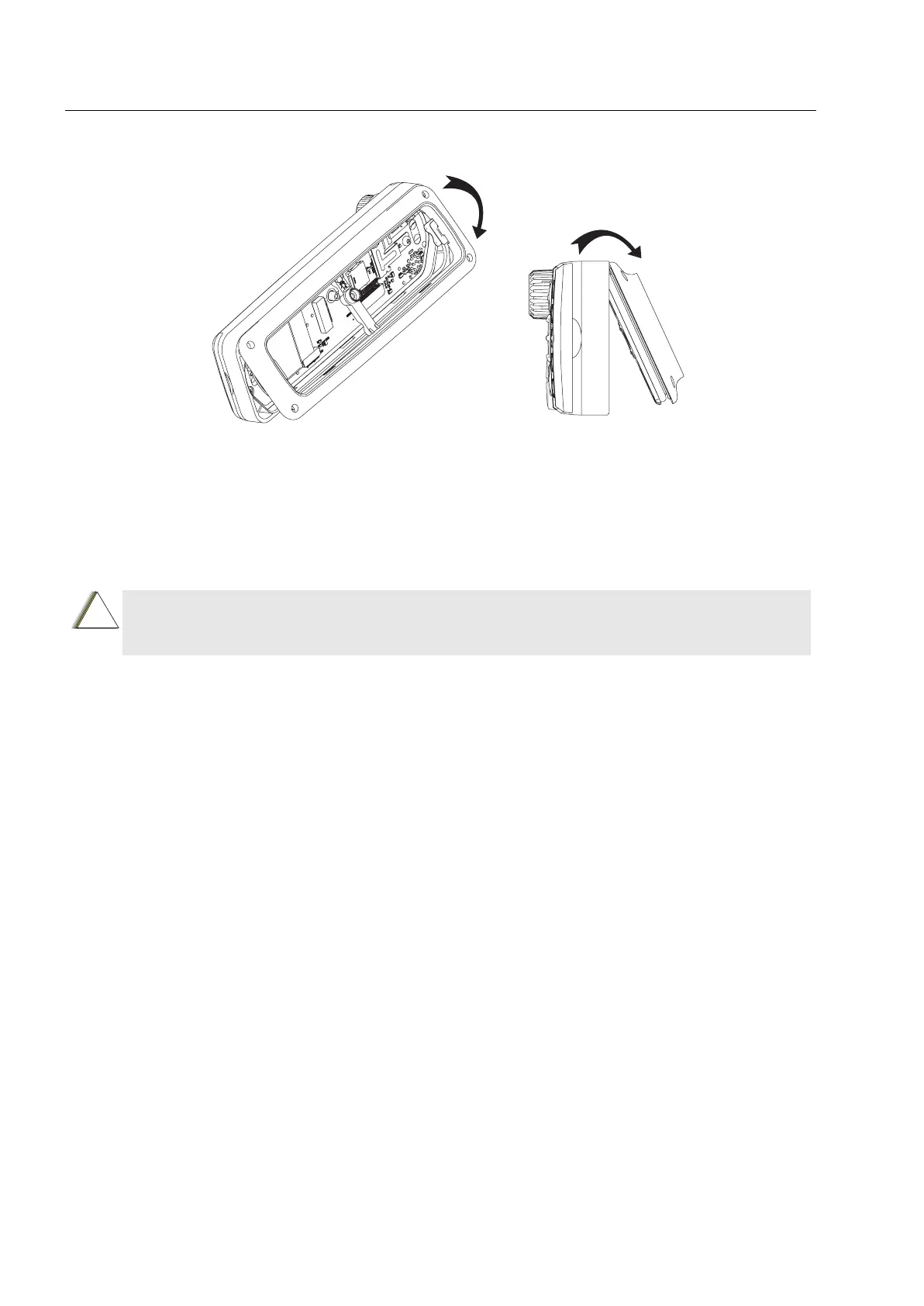

Figure 6-17 Reassemble Enhanced Control Head Housing
6. Screw the middle screw to the back housing.
Remote Head Enhanced – Disassembly
To Disassemble the Remote Head Enhanced from the Terminal:
1. Remove the Remote Enhanced (PMLN4904_) from the terminal by inserting the dismantling
tool (Motorola part number 6686119B01) in the chamfer between the Remote Head
Enhanced and the terminal assembly.
2. Use the dismantling tool to push and pry until the chassis tabs disengage from the Remote
Head Enhanced on both sides.
3. Remove the flex.
CAUTION: The terminal must be disconnected from the power supply before commencing
any disassembly. The Installation Manual should be referred to for more detailed information
on warnings and safety.
ZWG0130214-O
!
