6 - 44 Maintenance

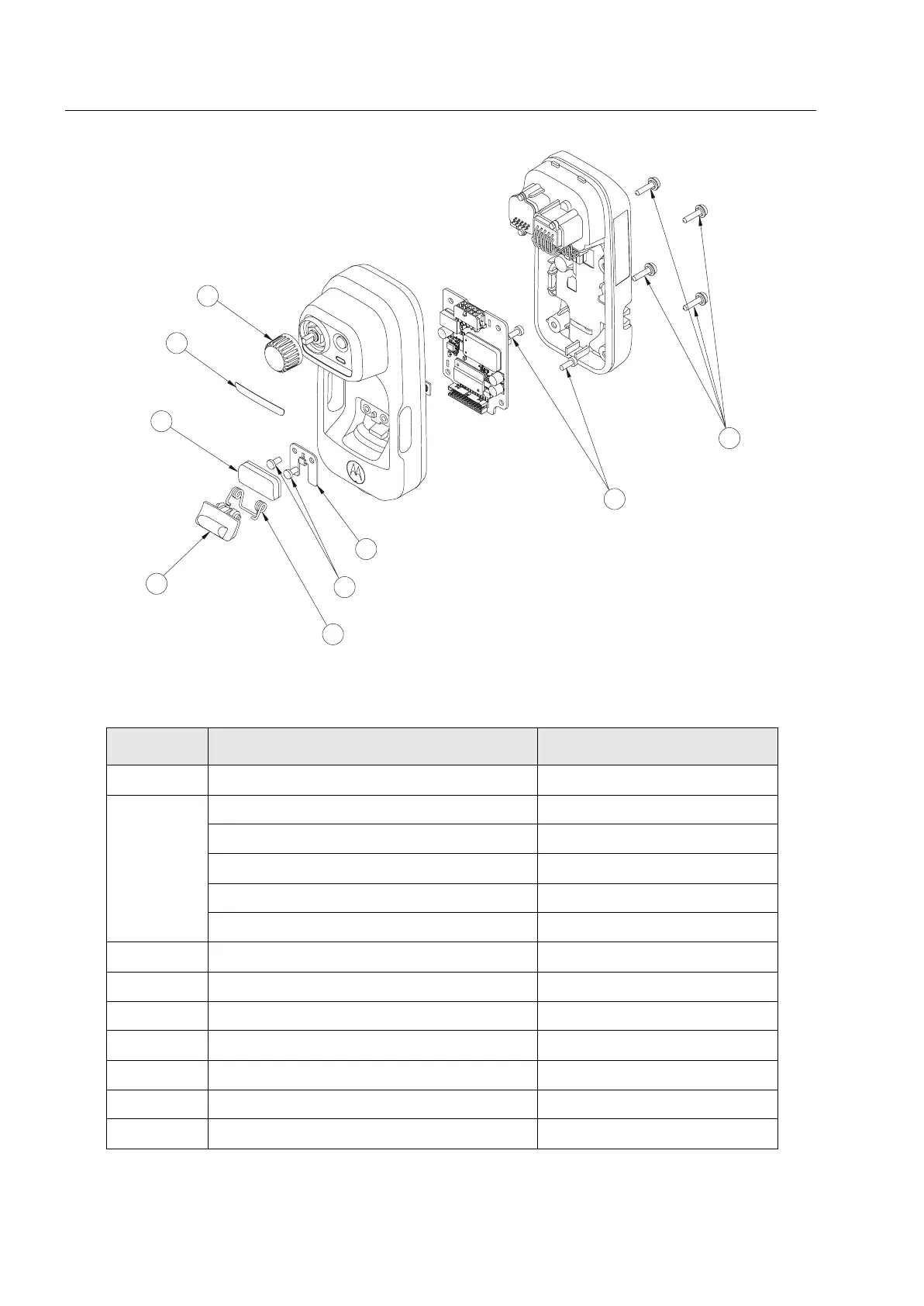

Figure 6-59 Telephone Style Control Head (Cradle) – Exploded View 3
Table 6-12 Telephone Style Control Head (Cradle) – Parts List 3
Item No Description Part No.
1 Knob, Encoder with D-Clip 3616898H01
2 Kit, Label, Color Code (White) (set of 5) PMLN6335_
Kit, Label, Color Code (Green) (set of 5) PMLN6336_
Kit, Label, Color Code (Red) (set of 5) PMLN6337_
Kit, Label, Color Code (Yellow) (set of 5) PMLN6338_
Kit, Label, Color Code (Blue) (set of 5) PMLN6339_
3 Armlock, Latch Motorola Use Only
4 Rubber Bumper 75012170001
5 M3 Screws, Latch Retainer (2 required) Motorola Use Only
6 Retainer Plate, Latch Motorola Use Only
7 Coiled Spring, Latch Motorola Use Only
8 Self Tapping Screws, Cradle PCB (2 required) Motorola Use Only
9 Main Screw Assembly (4 required) Motorola Use Only
ZWG0130201-O
1
2
4
3
7
5
6
8
9
